Follow Me cars

TY Follow Me cars

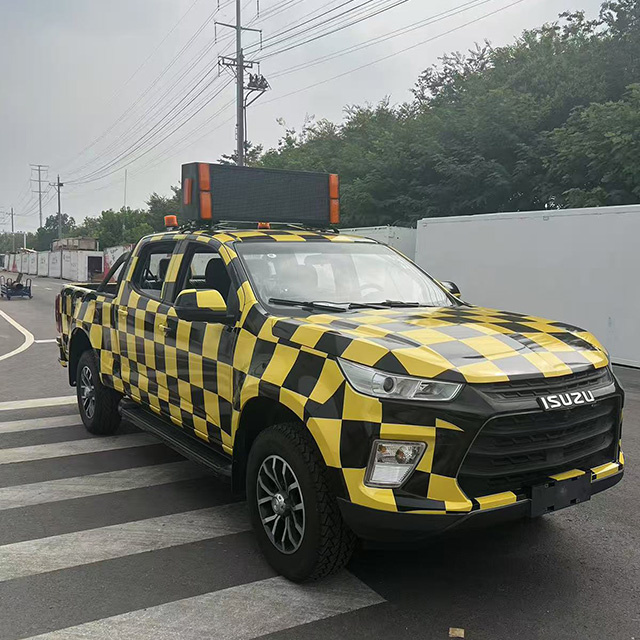

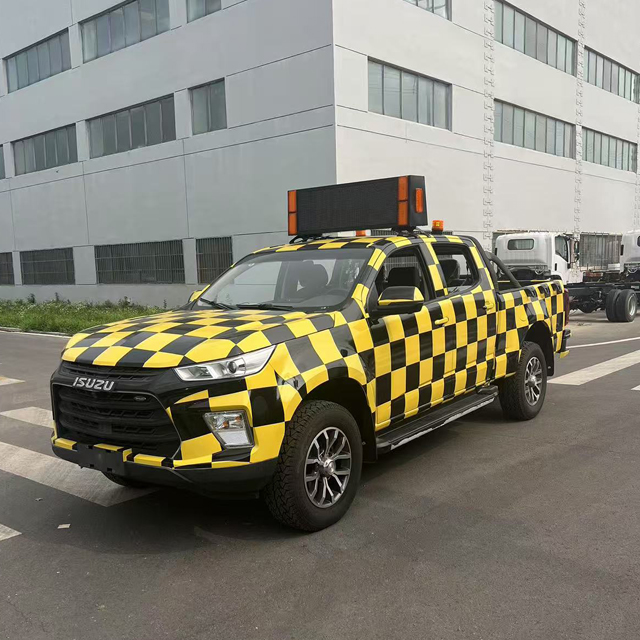

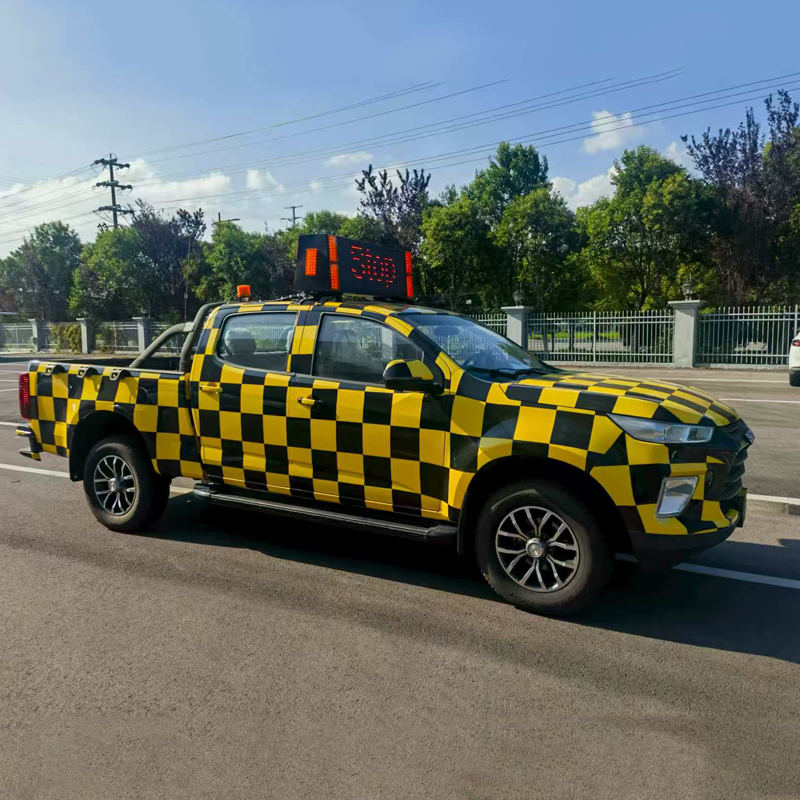

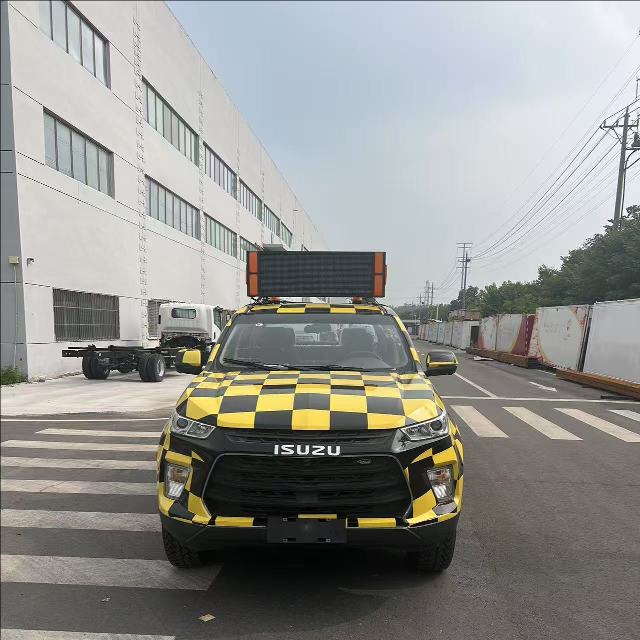

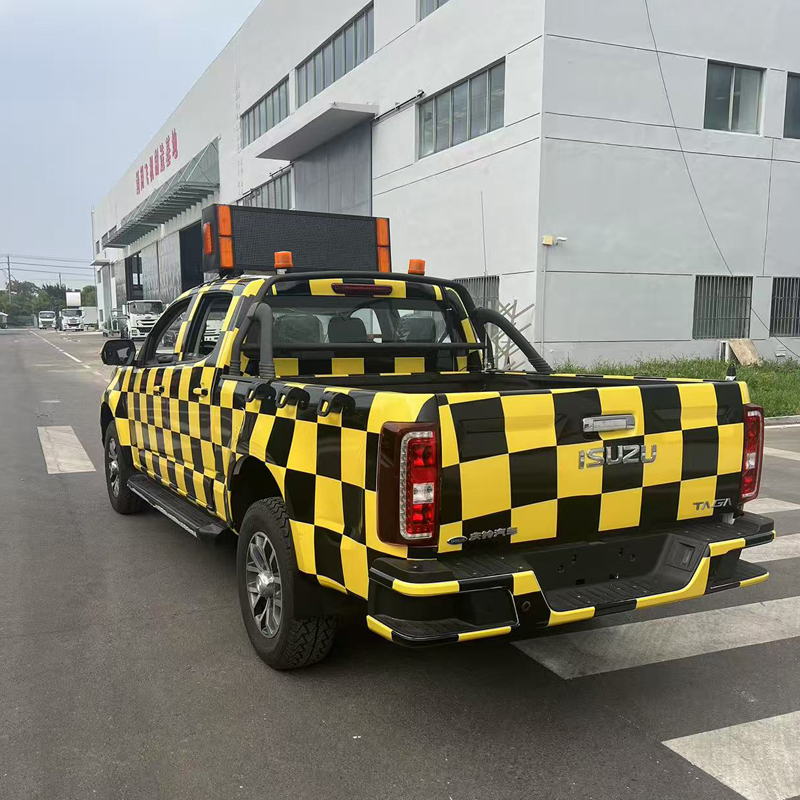

TY Guide Vehicle adopts the chassis of pickup truck developed by Qingling, the distributor of ISUZU in China, and is equipped with KENWOOD radio TM281A, which can cover all kinds of frequencies in airports to meet the requirement of contacting with the tower and pilots on board.

It can be used without cab according to customer's requirement.

Technical parameter

Chassis: ISUZU QL 1030BZHW2 pickup

Engine: ISUZU 4KH1CT6H1

DIsplacement: 2999ml

Power/horsepower(kw/ps): 105/142

Dimensions(mm): 5660,5700,5692*1885,1955,1877*1830,1805

Cabin size(mm): 1800*1540*480

Total mass(kg): 3190

Rated load capacity(kg) : 800

Anti-lock Braking System: exist

Approach angle/departure angle: 33/26,25/26°

Front overhang/rear overhang(mm): 945/1309,  985/1309, 977/1309

Axie load: 1275/1915

Wheelbase(mm): 3406

Number of axes: 2

Fuel consumption: 8.4(L/100Km)

Number of tires: 4

Tire specifications: 245/70R17LT 10PR,265160R18

Front tracker(mm): 1570,1590

Rear tracker(mm): 1570,1590

Rear track(mm): 1570,1590

structure: Pickup

Length(mm): 5330

width(mm): 1860

height(mm): 1785
