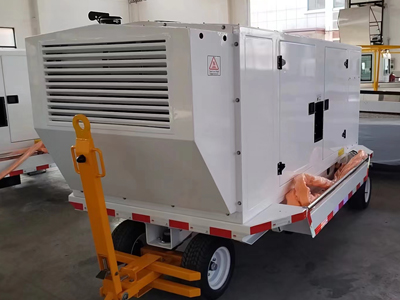

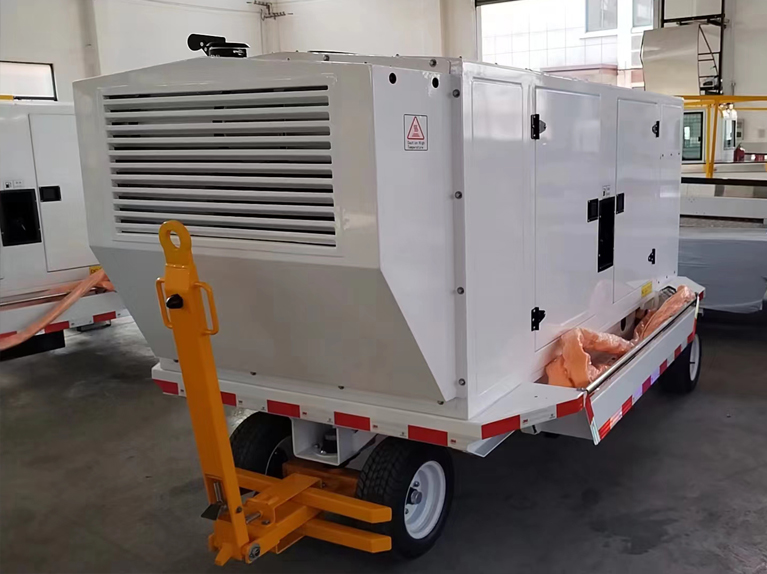

TY-GPU140T is driven by diesel engine power generation, towed mobile aircraft ground power unit. The GPU140T power supply unit can provide a stable 400Hz (Hz) power supply. When the aircraft is parked and its on-board generator is not working, it can provide a stable power supply for the aircraft's electrical equipment.
GPU140T main components including diesel engine power unit, brushless intermediate frequency generator, automatic voltage regulation system, the power supply output system, steel frame trailer frame as well as the unit with the function of sound insulation cover. This power supply unit complies with the US EU STAGE 3A and National III emission standards.
TY-GPU140T ground power unit components are designed to be simple, robust and durable, and equipped with automatic delay cooling shutdown program of the engine and emergency shutdown button and other safety protection devices to ensure that the unit can work for a long time without fault. The fluorescent display screen and the illuminated control panel of this unit provide convenience for night operation
TY-GPU140T main parameters and performance indicators
Overall dimensions (length × width × height) :
3390mm×1900mm×1850mm
Self-weight: 2800KG
Working environment
Ambient temperature: -25℃ to +50℃
Relative humidity: ≤95% (at 35℃)
Altitude: No more than 4,000 meters
Output power supply
Rated AC output power: 140KVA
Rated AC output power: 112KW
Rated AC output current: 406A
Rated AC output voltage: 115/200 V
Power factor: 0.8
Rated output frequency: 400 HZ
Rated DC output power: 22.8KW
Rated DC output current: 800 A
Rated DC output voltage: 28.5V
Rated speed: 1846r/min
Parameters of the electrical instrument system
System voltage: 24V
Battery capacity :12v/ 180Ah (two in series)
