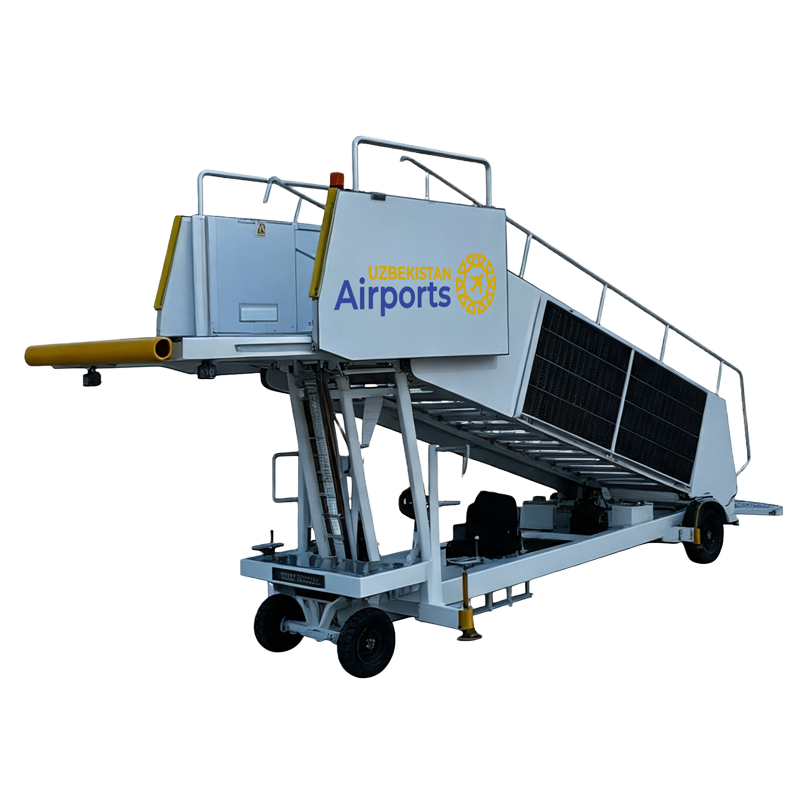

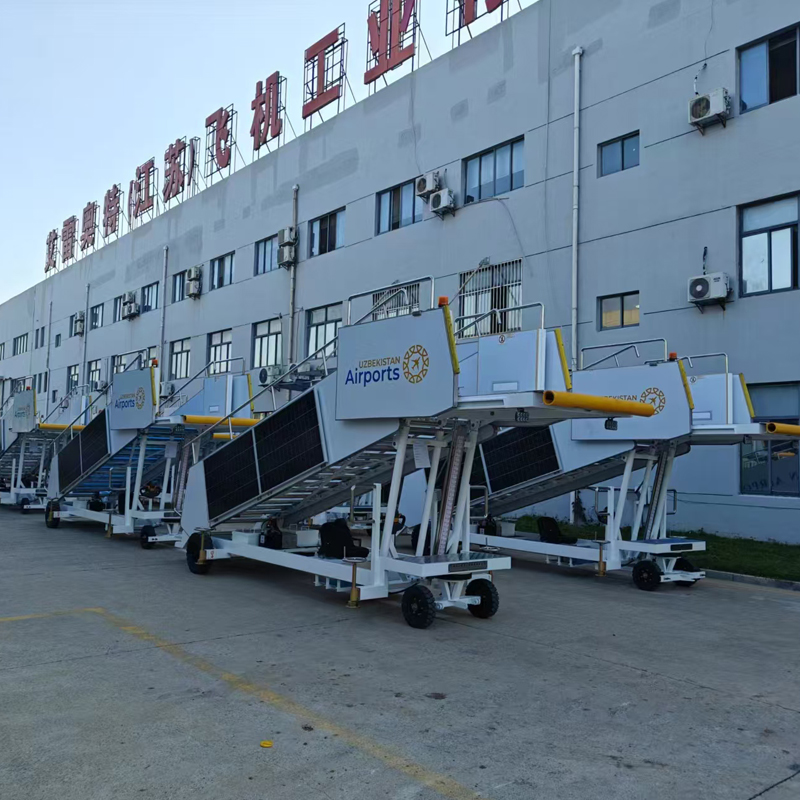

WTJ3600TKT Hand-pushing passenger step
1 Name: Hand-pushing passenger step
2 Type：
WTJ3600TKT
3 Profile
The designed height off ground for WTJ3600TKT hand-pushing passenger stair is 3600mm, which could be slightly adjusted for height tolerance between passengers stair and hatch, this type of passengers stair could be applied for A318、A319、A320、A321、B707、B727、B737、DC-8/40/50F、DC8-61/61F、DC8-62/62F、DC8-63/63F、1L-18
4 Product standard
1）MHT 6029-2014 《Passenger step》
2）CCAR-331SB-R1 《No.170 general administration of civil aviation of china》
3）CCAR-140 《No.191 general administration of civil aviation of china》
5 Main technical parameter
No. | Name | Specification |
1 | Overall size（length ×width ×height）
（without canopy） | 8285×2220×3520 |
2 | Platform size | 2000×1400 |
3 | Height of ladder handrail | 1170 |
4 | Front overhang | 525 |
Rear overhang | 1290 |
5 | Wheelbase | 4030 |
6 | Wheelbase | Distance of front tire | 900 |
Distance of rear tire | 1550 |
7 | Central distance of outriggers | Front outriggers | 1990 |
8 | Rear outriggers | 1990 |
9 | Curb weight（without canopy） | 1700kg |
10 | Load capacity of front tire | 970kg |
11 | Load capacity of rear tire | 730kg |
12 | Ladder step | 18 |
13 | Allowance speed | Max. driving speed | 20km/h |
Max. driving speed | 3km/h |
14 | Encircle diameter for channel | 17000mm |
15 | Departure angle | 5° |
16 | Approach angle | 33° |
17 | Angle of inclination | 23°～36° |
18 | Internal width of ladder body | Ladder body | 1300 |
19 | Tailed ladder | 1120 |
20 | Ladder height（Ground clearance 2500/3600时） | 130/195 |
21 | Mode of height adjustment | Displacement type rhomboid |
22 | Dimension of footstep | 300×1120 |
23 | Stoke of movable sliding door | 850 |
24 | Workable platform | Lift height | 2500mm-3600mm |
Loading quantity(peoples) | 6（≥450kg） |
25 | Specification of tire | 4.00-8 |
26 | Min. ground clearance | 160mm |
27 | Max. lading capacity (peoples) | 33（≥2500kg） |
28 | Manual pushing force | ≤300N |
