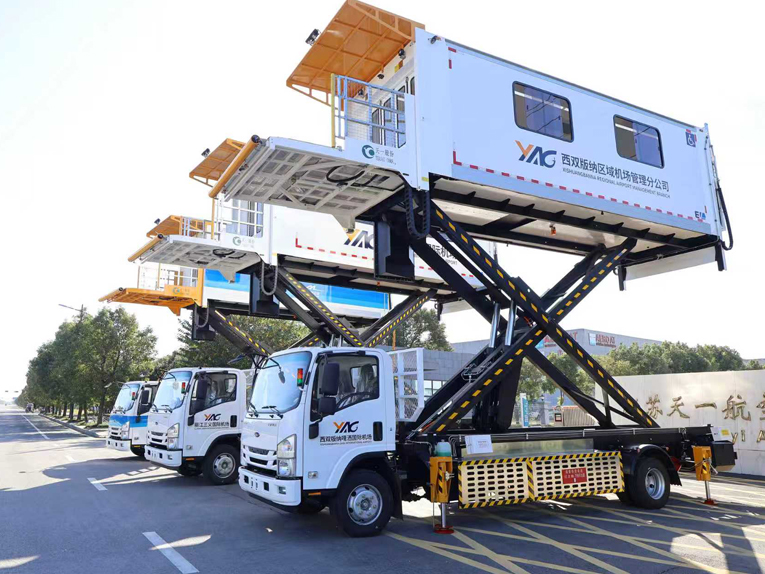

Introduction to the Aircraft PRM Medical Lift Working Platform

1) Aircraft PRM Medical Lift work platform is divided into three parts: fixed platform, left and right mobile platform and front and rear telescopic platform.

2) The dimensions of the Aircraft PRM Medical Lift platform are as follows:

① Fixed platform (length × width, mm): 1900 × 2085, capable of carrying 1400 kg.

② Left and right moving platform (length × width, mm): 830 × 1200, capable of carrying 600 kg, with a travel range of 0 to 500 mm.

③ Front and rear telescopic platform (length × width, mm): 600 × 1075, with a travel range of 0 to 600 mm.

3) There are more than two lamps with power greater than 55W for lighting on the working platform, and they are installed on both sides of the vehicle's front end.

4) A circular anti-collision rubber tube is set near the aircraft end of the telescopic platform.

5) A rotating guardrail is installed on the left and right moving platform.

6) A telescopic guardrail is set on the rotating guardrail, and a D-shaped yellow anti-collision rubber tube is installed on the telescopic guardrail.

7) The left and right moving and front and rear telescopic functions of the platform are standardly equipped with hydraulic oil cylinders, and an electric push rod type can be selected.

8) The platform is paved with 6mm aluminum alloy patterned aluminum plates.

9) The platform has prohibited leaning and platform load indication signs.

10) According to customer requirements, stainless steel protective nets can be added to the platform guardrail.
