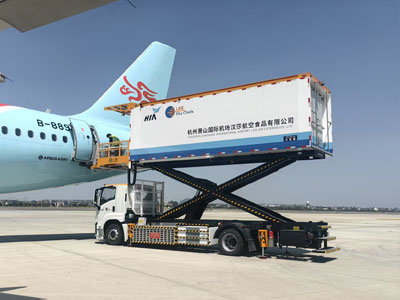

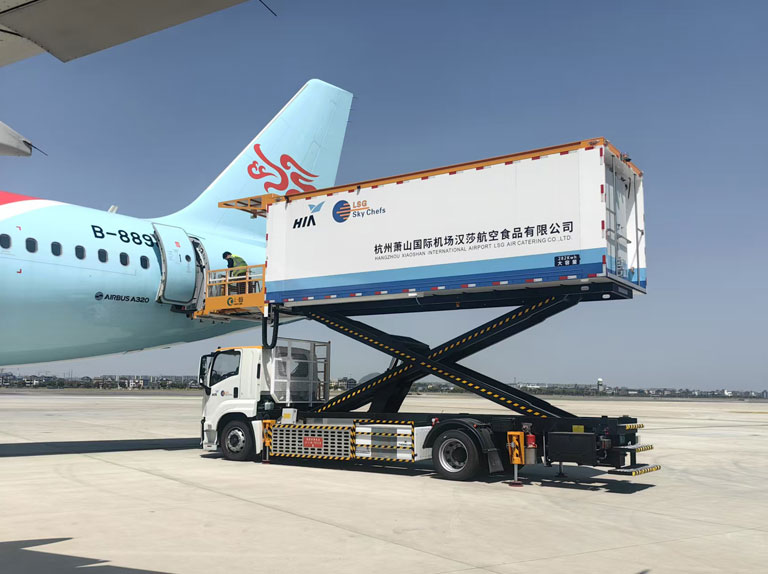

JSTY5180JSPE Aircraft Catering Truck (Electric) It is mainly composed of the QL1180BEVELQHY type II electric chassis produced by Qingling Automobile Co., LTD., the scissed-type hydraulic lifting mechanism, the elevatable front platform, the carriage, the front and rear sliding doors, the vehicle thermal management system, and the retractable and stable foot components (360° round-view monitoring, driver monitoring system, airport special transport vehicle supervision and the management of big data flat car enterprises Table, one-button operation, Bluetooth remote control brake air conditioning system, cold storage system optional). The front platform of the Aircraft Catering Truck (Electric) can be moved back and forth, left and right, and can be connected to various types of aircraft with the height of the cabin door between (2550 ~ 6200) mm. The rated load of the carriage is 6500kg, the rated load of the fixed platform is 2200kg, the rated load of the movable platform is 800kg, and the driving range is 440km.
Isuzu chassis Aircraft Catering Truck (Electric) eight parameters configuration
Driving motor model: GC-TM1300-01
Travel motor controller model: GC-CU1300-01
Energy storage device assembly model: L228H01
Platform working height (mm) : 2550 ~ 6200
Body load rating (kg) : 6500
Front platform load rating (kg) : 3000
Front platform moving part load rating (kg) : 800
Adjustment range of the left and right parts of the front platform (mm) : 0 ~ 700
The expansion adjustment range of the moving part of the front platform (mm) : 0 ~ 600
Dimension of fixed part of front platform (L × W) (mm) : 2050x2265
Dimensions of the moving part of the front platform (L × W) (mm) : 950x1200
Quality (kg) : 13790
Overall dimensions (length × width × height) (mm) : 10500×2500×3700
Driving range (km) : 440
Chassis model: QL1180BEVELQHY
External dimensions (length × width × height) (mm) : 7500×2500×2400
Front platform fixed part load rating (kg) : 2200
Total energy of energy storage device (kWh) : 281.92
