Lavatory Service Vehicle main functions of the control system
1) The platform should have anti-collision function when it rises.
2) The force extractor is not detached and cannot be driven.
3) When the platform does not fall to the lowest point, it cannot be driven.
4) The engine automatically accelerates when water is supplied.
5) With adjustable speed limiter.
Lavatory Service Vehicle is suitable for the use of A300, A310, A318, A319, A320, B707, B727, B737, B747, B757, B767, B777, DC8, 1L-18, 1L-62, MD11, MD80 and other models except Airbus A380 aircraft.

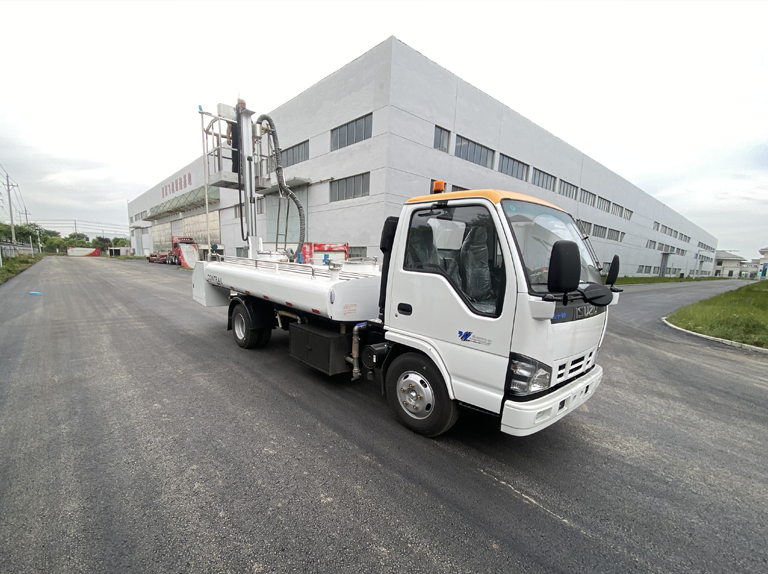

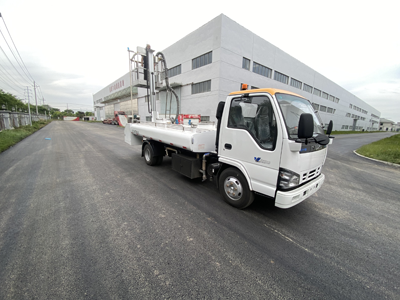

JSTY5070GWS Lavatory Service Vehicle Configuration 7
Engine type: 4KH1CN6LB
Water tank volume (L) : 1400
Sewage tank volume (L) : 2360 (with vacuum pump) /2600 (without vacuum pump)
Water supply flow (L/min) : ≥150
Water supply pressure (MPa) : 0.345
Maintenance weight (kg) : 4060
Overall dimensions (L × W × H) (mm) : 7190 (without storage box) /7440 (storage box) ×2100×2260
Maximum speed (km/h) : 80
Other features: Optional: vacuum pump and rear storage box
Chassis model: QL1070BUKAY
Working platform lifting height (mm) : 385 ~ 3760
Channel circle Outer circle diameter (mm) : 15000
Engine emissions: exhaust pollutants meet the emission limits of GB17691-2018 stage 6b, and exhaust smoke meets the requirements of GB3847-2018 free acceleration stage a.
Circulation tank volume (L) : 240 (with vacuum pump) /0 (without vacuum pump)
Transmission model: MSB-5SM
