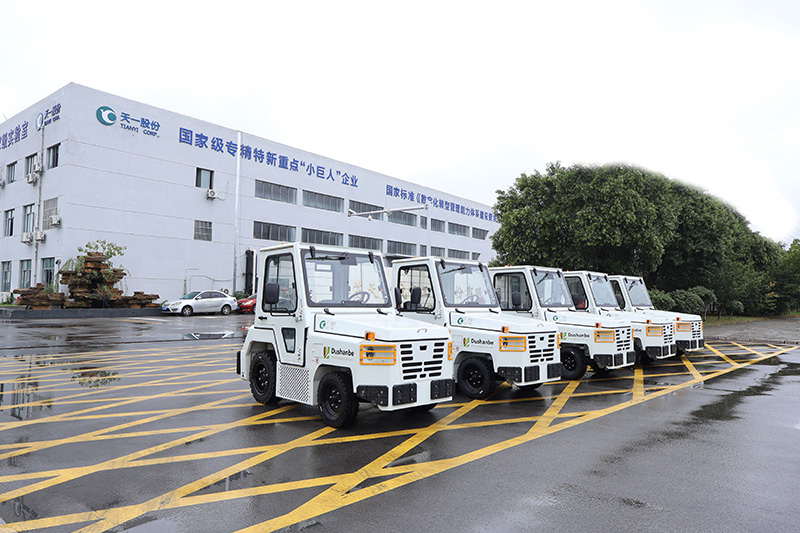

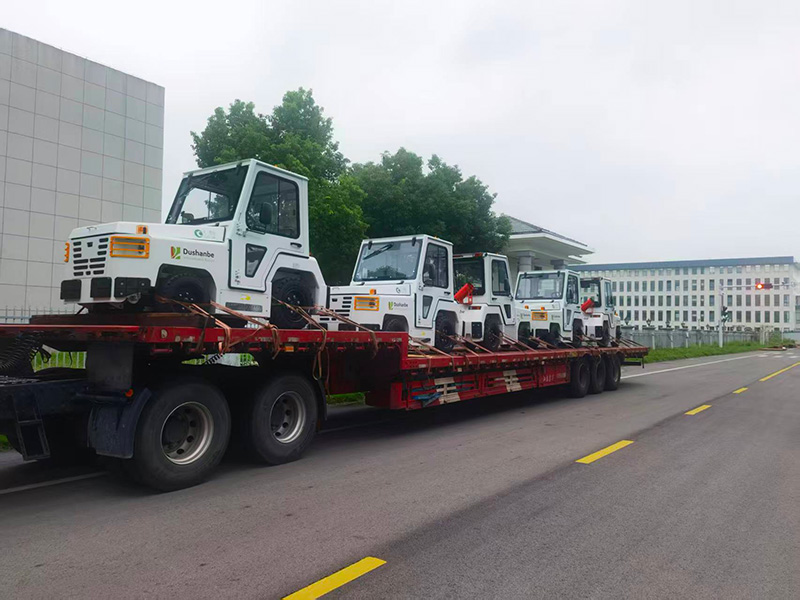

Full name: Luggage/Goods Towing Vehicle. Luggage or cargo tractors are specialized vehicles used by airports and logistics centers to transport luggage, cargo and equipment between terminals, aircraft and storage areas. These towing vehicles are specifically designed for towing luggage carts, cargo containers, and other ground support equipment. They have a sturdy structure and high-torque engines, and usually come in both electric and diesel models to meet various operational needs. Luggage and goods towing vehicles are crucial for efficient ground handling operations, ensuring the timely and safe transportation of goods and luggage, thereby helping to improve the overall efficiency and reliability of airport and logistics operations.
Main product features:
① Key components use advanced and mature products.
② Matched with a powerful power system and excellent towing performance.
③ Independent front suspension system, spiral spring rear axle system, good stability and comfort.
④ Seamless integrated emergency steering system.
⑤ Adopting dual-loop braking and dual diaphragm vacuum assist and proportional valve braking system.
Battery box is equipped with BMS system, fire extinguishing system, heating system and liquid cooling system.
Luggage towing vehicle technical parameters Maximum traction (kN):32
Rated traction weight (kg):35000
External dimensions (L×W×H) (mm):3150×1450×2000
Maintenance mass ma (kg):4450
Turning radius R (mm):2850
wheel base C (mm): 160 Traction bolt height H0 (mm) :300/400
Track (front D1/back D2) (mm):1260/1270
Minimum ground clearance h (mm):160
Maximum speed (km/h) carrying idler:30
Front overhang A (mm): 675
Rear overhang B (mm): 875
