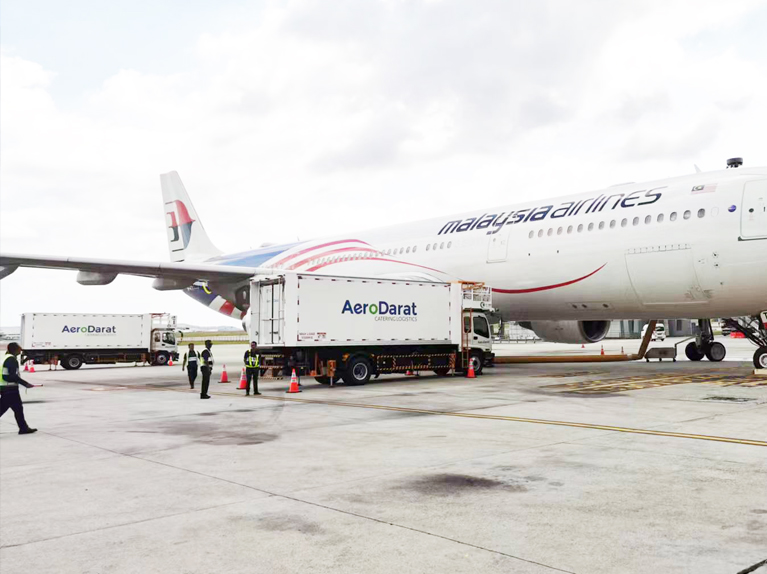

National VI diesel version of aviation catering vehicle - chassis
It adopts the Qingling QL5190TZZAEQHY type /QL1110ANPAY type chassis, equipped with a overhead camshaft, 6HK1-TCG61 water-cooled in-line direct injection 6-stroke diesel engine, with emissions meeting National VI standards, an integrated cycle ball steering mechanism (with power steering), and a hydraulic dual-circuit foot brake for starting. 24V DC electrical system
The cab is equipped with air conditioning for both heating and cooling, a hydraulic booster, an AM/FM radio, and luxury interior lighting
The underframe is generally a frame structure, consisting of a main beam frame, a front platform bracket, and four hydraulic support feet. It can ensure safe operation in winds of force 8 and maintain the stability of the vehicle body in winds of force 12. The safety factor of the vehicle body against rolking is greater than 2.5
Technical parameters of national VI diesel aviation catering vehicle
Engine model: 6HK1-TCG61
Transmission model: Allison2500
Platform working height (mm) : 2550-6200
Rated load of the box body (kg) : 6400
Rated load (kg) of the front platform: 3000
Rated load (kg) of the moving part of the front platform: 800
The left and right adjustment range (mm) of the front platform's active part: 0 to 700
The telescopic adjustment range (mm) of the front platform's movable part: 0 to 600
Dimensions of the fixed part of the front platform (length × width) (mm) : 1900×2265 [(1900×2265) (long and narrow)]/[(1400×2400) (short and wide)]/[(1900×2265) (long and narrow)]/[(1400×2400) (short and wide)]
The dimensions of the front platform's movable part (length × width) (mm) : 950×1200, 950×1200
Curb weight (kg) : 13,280
Overall dimensions (length × width × height) (mm) : 10400×2500×3700 (without canopy) /3800 (with canopy) /10400×2500×3700 (without canopy) /3800 (with canopy)
Chassis: QL5190TZZAEQHY
External dimensions of the box body (length × width × height) (mm) : 7500×2500×2400 7500/7200×2500×2400 0
Engine emissions: Emissions meet the requirements of the 6b stage in the sixth phase of GB 17691-2018 in China and the requirements of GB 3847-2018. Exhaust smoke density complies with the requirements of GB 3847-2018.
Rated load (kg) of the fixed part of the front platform: 2200
