Easy operation
The control console of the Passenger boarding bridge is equipped with a 10-inch high-resolution touch screen, featuring graphic display. The operation control design is intuitive and clear, and the operation is simple. Moreover, work passwords are set for maintenance personnel to avoid dangerous consequences caused by operators' misoperation.
The humanized arrangement of the operation handles and buttons makes the operation simple and fast.
Emergency retraction function
In the event of a power outage or other unexpected incidents that cause a power failure, to ensure that the aircraft that has completed boarding leaves and takes off on time, the boarding bridge has a safety evacuation function. Two people manually operate the manual pump installed on the walking wheel frame to drive the walking wheels (which takes about 3 to 5 minutes). This will enable the Passenger boarding bridge to detach from the aircraft and retreat to a safe distance.
Automatic docking and retraction function
The operator only needs to press the automatic pick-up button, and the Passenger boarding bridge will automatically adjust its state according to the corresponding aircraft model, and automatically drive to the predetermined location. The automatic exit bridge will automatically return to the predetermined parking position.
Camera surveillance for bridge moving area
A camera is installed at the bottom of the Passenger boarding bridge, and there is a monitor on the operating console at the boarding port. When the operator is operating the Passenger boarding bridge, they can observe the situation around the walking wheels of the boarding bridge on the monitor to avoid danger.
Carrying function

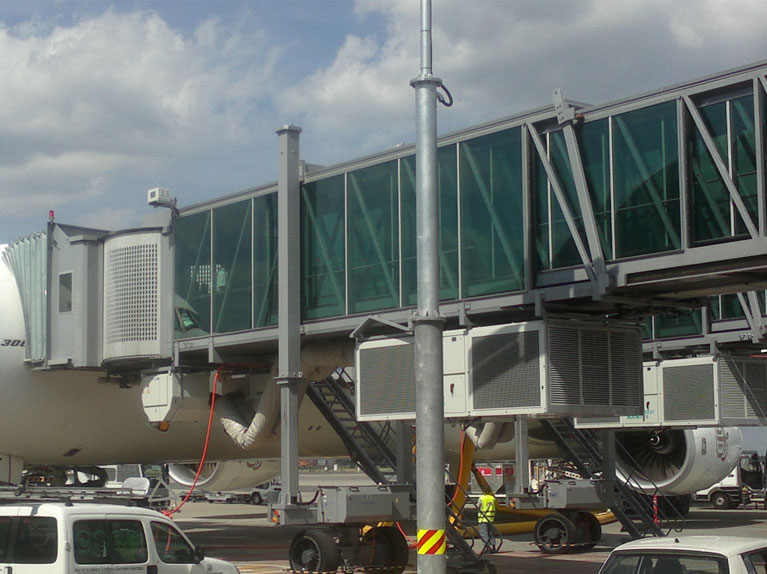

It is equipped with a Passenger boarding bridge management system, remote monitoring, boarding bridge berth guidance system, and has sufficient load-bearing capacity. It can suspend and install bridge equipment such as 400Hz power supply (including cable retraction and extension devices) and aircraft air conditioning PCA.
Self-diagnosis and alarm function
The Passenger boarding bridge control system has a comprehensive self-diagnostic function. It can conduct self-checks when the system starts up. Once a fault is detected during the self-check upon startup or once a fault occurs during operation, it can display the corresponding fault source and the conventional methods to eliminate the fault, to help maintenance personnel solve the fault quickly and ensure Passenger The normal operation of boarding bridge.
The reliable self-checking function and alarm mechanism facilities enable the boarding bridge to initiate emergency operation under the UPS protection device even in the event of a power outage.
When the machine is automatically connected or the bridge is automatically withdrawn, the corresponding information and alarm information will be displayed on the touch screen interface, facilitating the operator to handle and respond to the situation in a timely and effective manner.
Automatic emergency retraction function
In the event of an emergency power outage, anyone can dismount the Passenger boarding bridge from the aircraft by pressing the priority exit button. Even in the pick-up mode, it can fully and automatically evacuate to its original position, and the canopy will automatically retract simultaneously.
