Passenger Boarding Bridges, as the Bridges connecting aircraft and terminal buildings, provide passengers entering and leaving the airport with all-weather, comfortable and safe walking Spaces. At the same time, they also offer economical and flexible solutions for different airport planning and apron layout

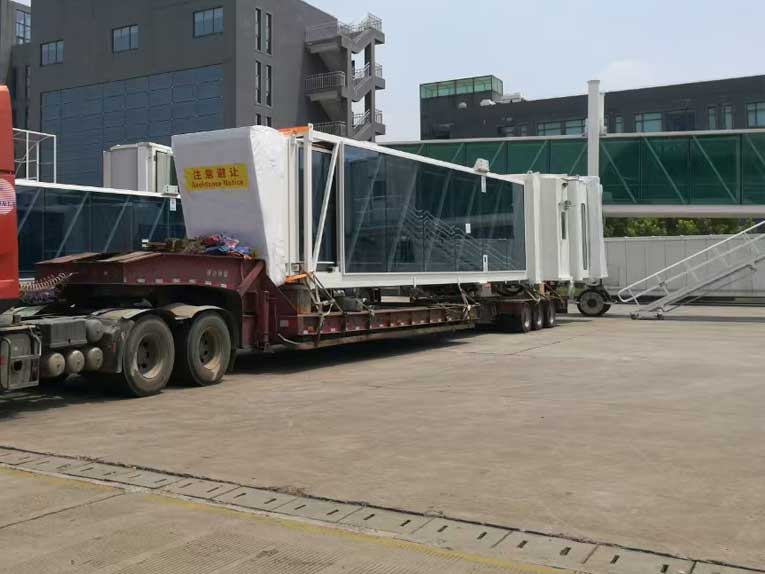

Jiangsu Tianyi currently has a variety of boarding Bridges: rotary telescopic boarding Bridges, column seat boarding Bridges and other aircraft boarding Bridges. As one of the domestic manufacturers capable of simultaneously producing hydraulic, electromechanical and hybrid drive boarding Bridges, our products not only meet the requirements of various aircraft models but also adapt to different working conditions. The side walls of the passage are available in a variety of materials such as rigid materials and glass for selection. Customizable and personalized requirements are available. It can be equipped with a 400Hz starting power supply, aircraft air conditioning, and visual guidance systems (and other auxiliary devices).
Airport pick-up types: C, D, E
2. Power supply: 50Hz (±2%), 380V (±10%), three-phase five-wire system
3. Earthquake intensity: Seismic fortification intensity: 8 degrees
4. Ambient temperature: +60 ° C to -25 ° C
5. Airport pick-up accuracy: When the aircraft's parking position deviates by 1 meter forward and backward and 0.5 meters left and right from the specified position, the boarding bridge can safely and reliably complete the pick-up work.
6. Anti-corrosion: ISO 12944 C4-M
A. Epoxy zinc-rich primer: It is used to protect the surface from oxidation, with A thickness of 30-55 microns. B. Intermediate thick slurry paint: It is used to enhance the anti-collision ability, with a thickness of 100-120 microns.
C. Polyurethane topcoat: For aesthetic purposes, fire resistance, chemical resistance and weather resistance, with a thickness of 35-45 microns.
