Passenger boarding ladder (power assisted) guard plate assembly

Passenger boarding ladder (power assisted) guard plate assembly

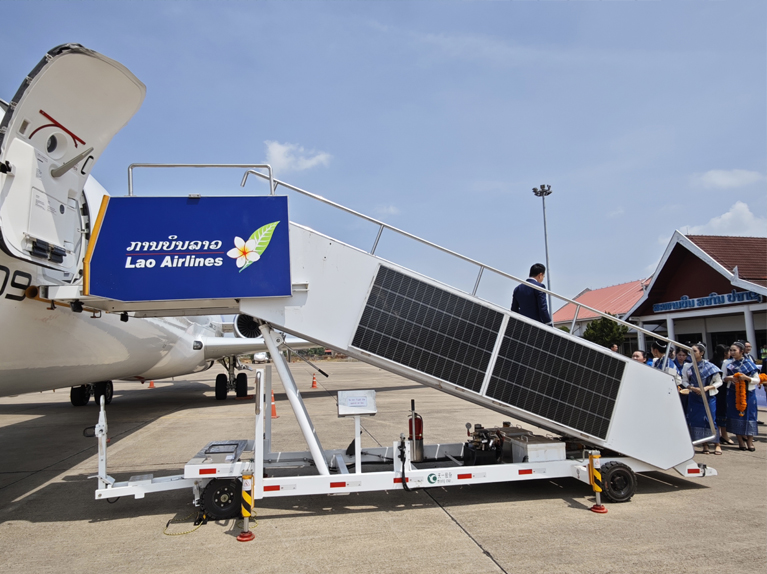

The side guard plates are composed of guard plate frames, railings, inner and outer decorative plates, ladder body headlights, etc. The guard plate frame is welded with 38x25x1.5 stainless steel rectangular tubes. The handrail is made of φ38mm stainless steel tubes. The inner and outer decorative panels are made of δ=4mm new aluminum-plastic decorative materials. A total of 6 LED headlights are installed on both sides of the guard plates for lighting purposes. Two solar panels are installed on the right guard plate.

Passenger boarding ladder (power assisted) is suitable for A318, A319, A320, A321, B707, B727, B737, DC-8/40/50F, DC8-61/61F, DC8-62/62F, DC8-63/63F, 1L-18 and other series of passenger aircraft

Technical parameters of passenger boarding ladder (power assisted)

stair maximum tilt angle (°) : 38

Step size (DxWxH) (mm) : 300×1120× (140-200)

stair working height (mm) : 2025-3440

height adjust mode: Ladder parallel-sided shift type

mobile stair steps number: 18

platform size (Depth X Width) (mm) : 2000×1400

overall dimension (LxWxH) (mm) : 7000×2100×3250

unladen weight (kg) : 1980

turning diameter,outside (mm) : 9400

other performance: Optional rain canopy; optional solar panels;  can charge the battery;  top speed 6 km/h

chassis: Jiangsu Tianyi Aviation Industry Co., Ltd.

model: WTJ3600TKT-0900000
