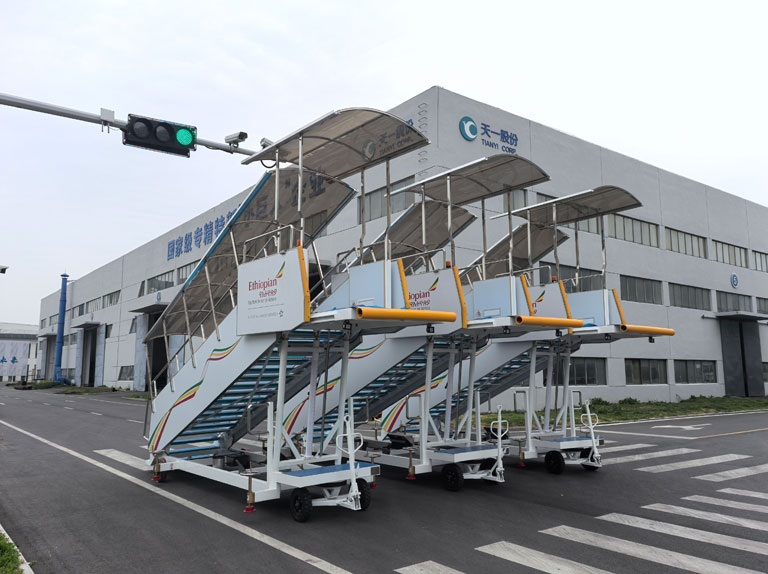

Passenger stairs (hand-pushed) are suitable for boarding and disembarking passengers of A318, A319, A320, A321, B707, B727, B737, DC-8/40/50F, DC8-61/61F, DC8-62/62F, DC8-63/63F and 1L-18 series airliners. It can also be used as a ladder for the work of the crew.
The passenger stairway serves as a hand-pushed passenger stairway. Because it is a self-made chassis, no engine, so the purchase cost is low; Because there is no need to fill fuel, the use cost is reduced; Because the functions are manual operation, low incidence of failure, so the maintenance cost is low; The hand-pushed passenger stairway has the advantages of no noise, no pollution, safety of docking aircraft door and so on.
Passenger stairs (hand push) main parameters configuration four
Maximum tilt Angle of ladder body (°) : 38
Step dimension (depth × width × height) (mm) : 300×1120× (140 ~ 200)
Passenger elevator working height (mm) : 2025~3440
Height adjustment mode: step parallelogram displacement type
Number of steps on the ladder body: 18
Platform dimension (depth × width) (mm) : 2000×1400
Overall dimensions (length × width × height) (mm) : 7000×2100×3250
Quality (kg) : 1980
Channel circle Outer circle diameter (mm) : 9400
Other performance: optional rain cover, optional solar photovoltaic panel, can charge the battery, the maximum speed of 6km/h
Chassis model: WTJ3600TKT-0900000
