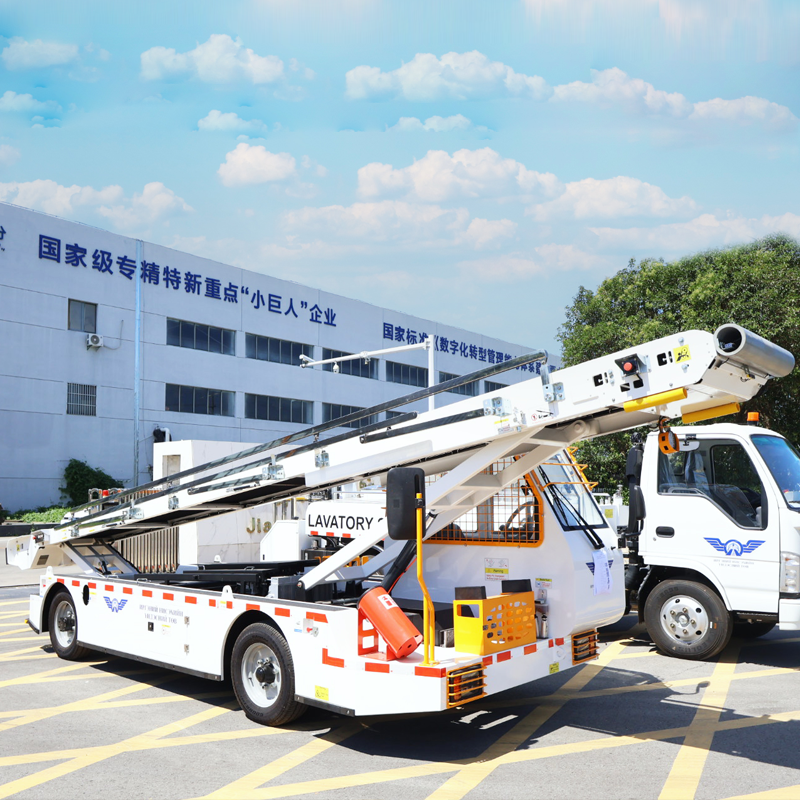

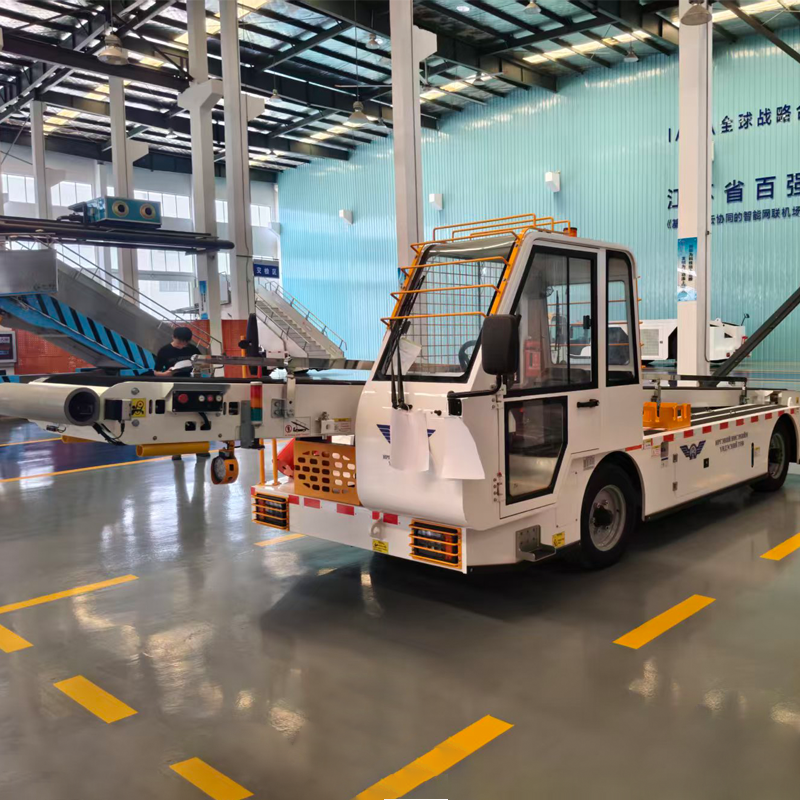

Baggage Luggage Belt Loader

We export a lot to other countries. Please rest assured of our good quality, best price and long-term supply. It has won good reputation from domestic and abroad.5 Main technical spec data 1 Product Name: Self-Propelled Convener-Belt Loader 2 Product Model: Product Introduction: TY-XC80 self-propelled convener-belt loader is a new luggage transporter designed and manufactured by Jiangsu Tianyi Airport Special Equipment Co., Ltd chassis is self-made. The product is advanced and concise in product design, safe, reliable, reasonable in structural design, safe and convenient in operation, advanced in process, beautiful in appearance, highly reliable and easy to maintain. It can provide safe and efficient luggage conveying operation for all aircraft types. 3 Product Standard IATA AHM 925 Functional Description of Power-Driven Convener Belt Loader IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment IATA AHM 910 Basic Safety Requirements for Airport Ground Support Equipment

Availability:



Inquire

Product Description

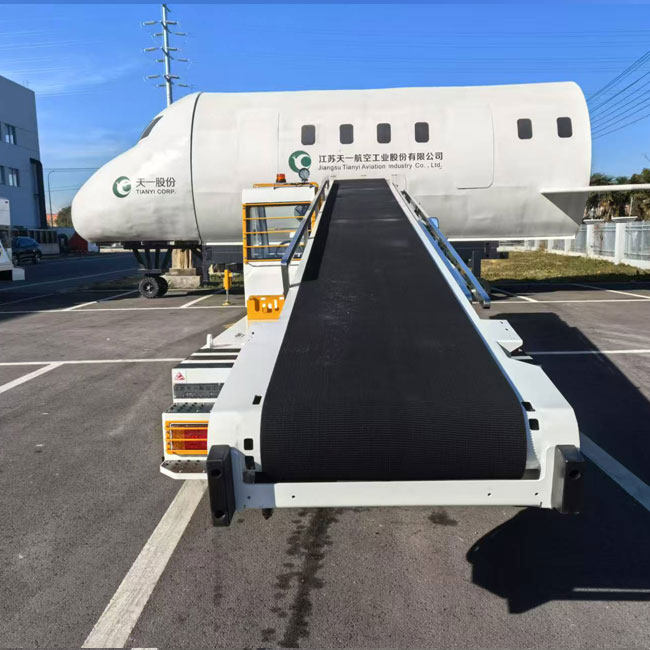

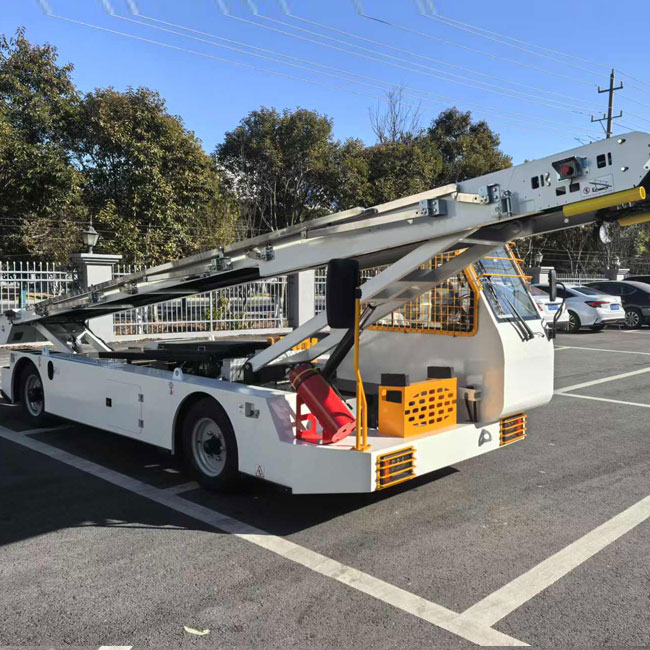

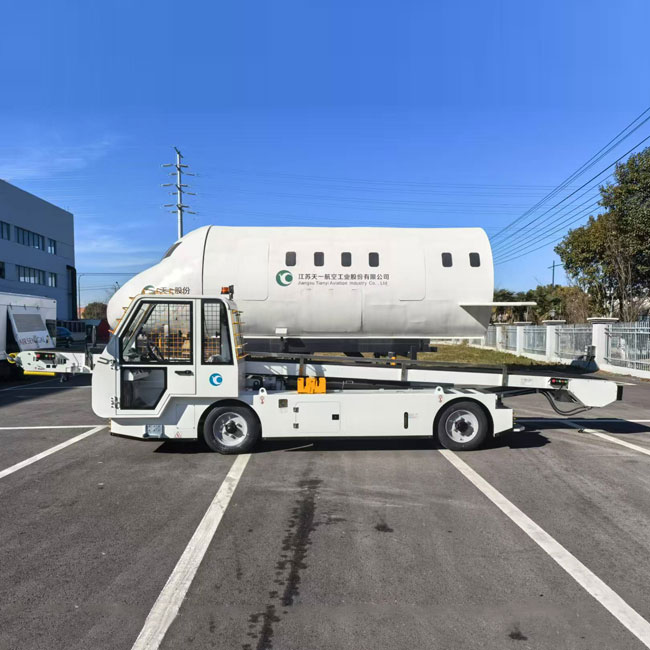

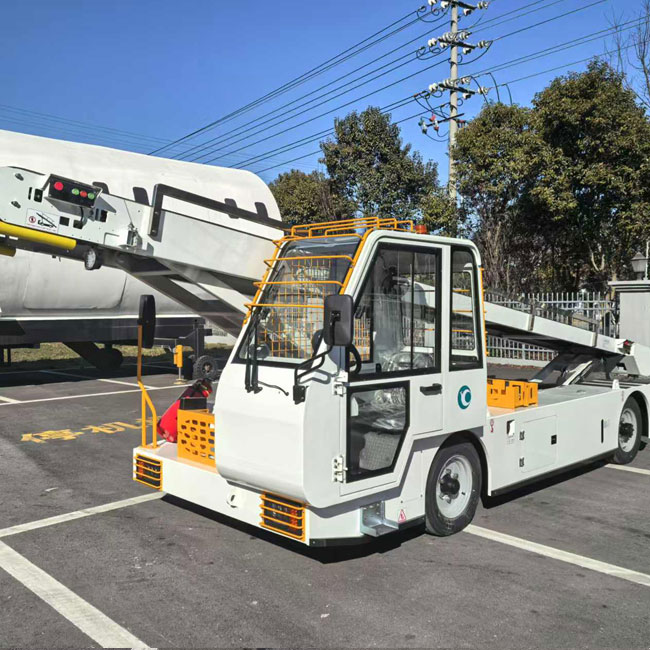

The T-XC80 Plane Baggage Luggage Belt Loader conveyor belt bracket is mainly composed of an 800mm wide main frame, load-bearing rollers, driving rollers, driven rollers, adjusting rollers, driving motors, baffles, handrails, etc.

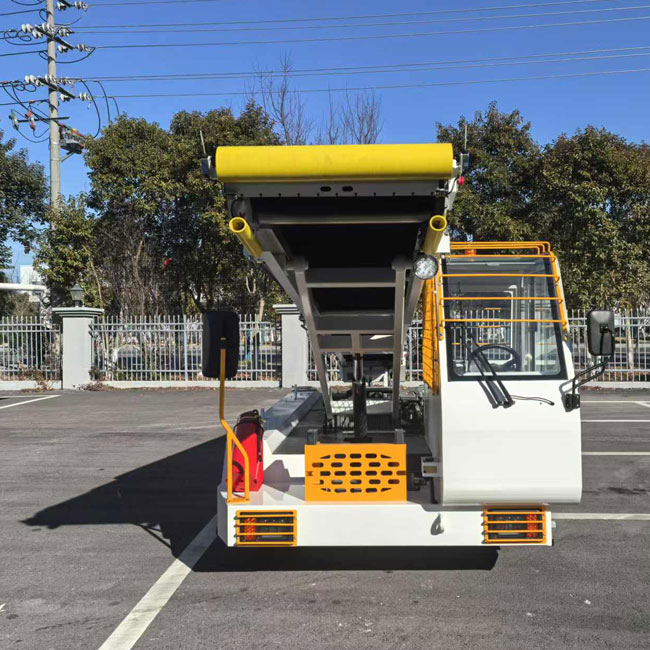

The front drive roller is a rubber-coated roller with a diameter greater than 200mm and a polyurethane material rubber layer, which provides sufficient friction while offering a service life of up to 20 years. The rear end is a conveyor belt tensioning device. With an adjustment range of up to 160mm from front to back, the conveyor belt is easy to disassemble, assemble and maintain.

The load-bearing rollers are thickened with a wall thickness of 2mm. The distance between the front and rear rollers is only 70mm, ensuring that luggage is not damaged by the goods during loading and unloading. The middle distance is 180mm, minimizing subsequent maintenance to the greatest extent.

The conveyor belt is 700mm wide and 8mm thick, a three-layer woven NANG conveyor belt imported from Taiwan, and a stainless steel belt buckle imported from the United States. Two sets of conveyor belt deviation correction devices are installed at the lower end of the conveyor frame to control the left and right deviation of the belt during the front and back operation.

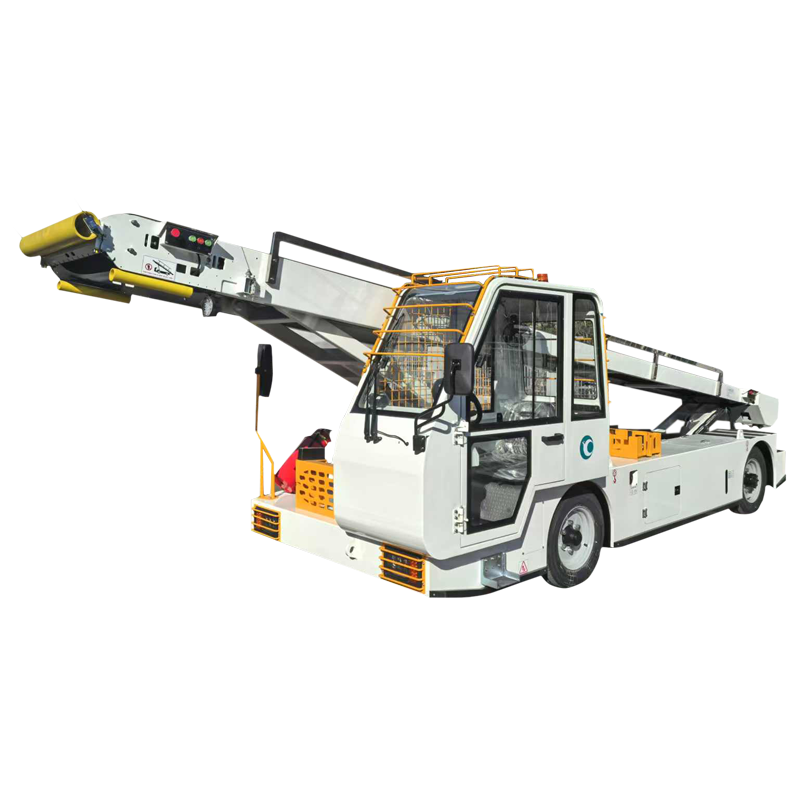

Diesel Plane Baggage Luggage Belt Loader technical parameters configuration three

Chassis model: XC80.01000000

Engine model: QSF2.8t3NA49

Steering shaft model: HY430

Drive shaft model: HY430C

The working range of the conveyor belt (mm) : The lifting range at the front end: 1170-4330

The lifting range at the rear end: 520 to 1540

Transmission speed (m/s) : 0.16-0.5

Conveyor belt width (mm) : 700

Conveyor belt carrying capacity (kg/m) : 135

Overall dimensions (length × width × height) (mm) : 8140×2100×1960

Wheelbase (mm) : 3000
