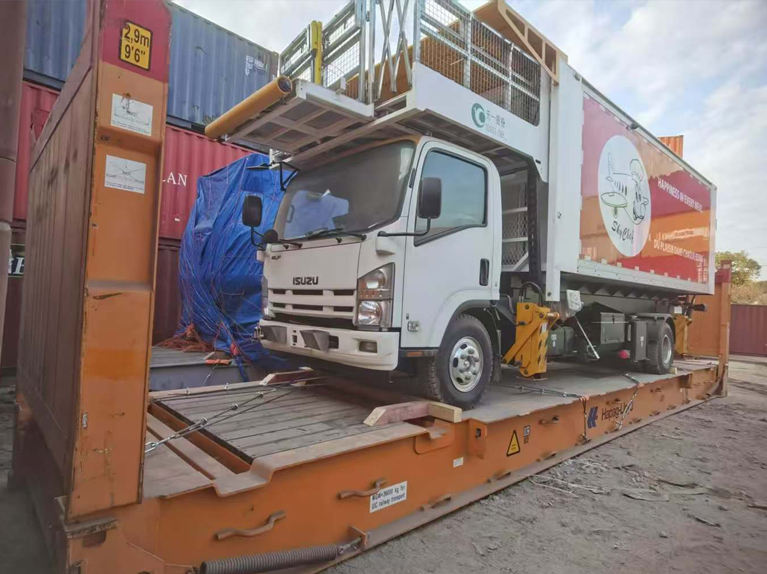

①Small aviation catering vehicle working platform is divided into three parts: fixed platform, left and right moving platform and telescoping platform.
② The length of the fixed platform is available in multiple configurations, and customers can confirm it according to their own requirements. The standard platform dimensions are as follows:
Fixed platform (length × width, mm) 1150×1800, with a load capacity of 600kg.
The left and right moving platform (length × width, mm) is 730×1000, with a load capacity of 300kg and a stroke of 0 to 300mm.
The front and rear telescopic platform (length × width, mm) is 500×878, with a load capacity of 150kg and a stroke of 0 to 500mm.
There are more than two spotlights with a power greater than 55W on the working platform for illumination, and they are installed on both sides of the front end of the carriage.
④ Circular anti-collision rubber cylinders are installed at the front and rear telescopic platforms near the aircraft end.
⑤ Rotating guardrails are installed on the left and right moving platforms.
⑥ On the rotating guardrail, there are front and rear telescopic guardrails, and D-shaped yellow anti-collision rubber hoses are installed on the telescopic guardrails.
⑦ The left and right movement and forward and backward extension of the platform are standard equipped with hydraulic cylinders, and an electric push rod type is available as an option.
⑧ The platform is paved with aluminum alloy patterned aluminum plates
⑨ The platform is equipped with no-lean and platform load-bearing indication signs.
According to the customer's requirements, stainless steel protective nets can be installed on the platform guardrails.
The locking device of the platform side door adopts a self-locking structure, which is safe and reliable. The locking of the side door can be optionally equipped with a spring latch or a manual latch.
