Refrigeration system: Small Size Catering High lift
The refrigeration system is composed of imported independent refrigeration units and evaporators.
2. The refrigeration system adopts the American Thermo King KV200 model.
3. All refrigeration systems are equipped with automatic start/stop and self-checking functions, which can ensure that the temperature inside the refrigerated compartment is between 0 and 5℃, and the temperature can be reduced to the required range within half an hour after startup.
4. Cooling capacity: When the temperature at the evaporator inlet reaches 0℃, the cooling capacity is 4750W/h. At -20℃, the cooling capacity is 2650W/h.
5. Refrigeration system form: Independent type, diesel engine-driven. The compressor unit adopts semi-hermetic and air-cooled type, and the evaporator adopts fan coil type.
6. The refrigerant adopts the environmentally friendly R404A type.

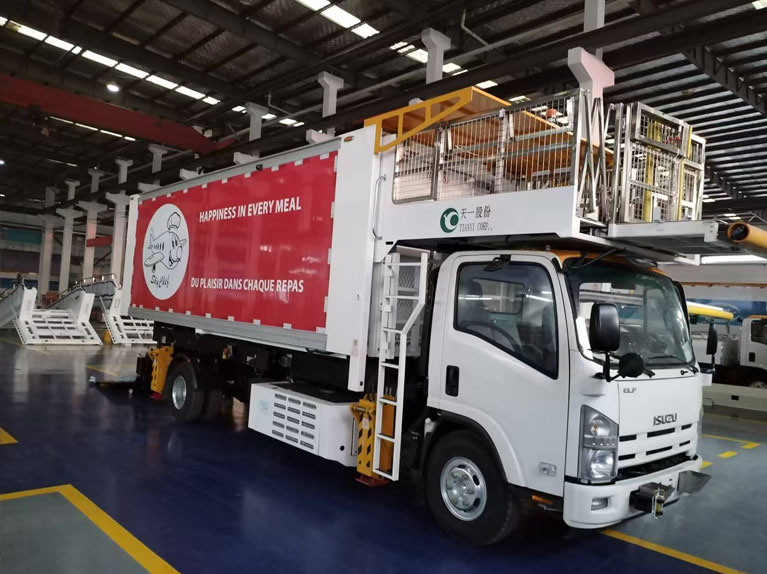

Small Size Catering High lift
Engine model :4HK1-TCG61
Transmission model :Allison1000
Platform working height (mm) :2200-6000
Rated load of the box body (kg) :3800
Rated load (kg) of the front platform :2200
Rated load (kg) of the moving part of the front platform :600
The left and right adjustment range (mm) of the front platform's active part :0 to 600
The telescopic adjustment range (mm) of the front platform's movable part :0 to 600
The dimensions of the fixed part of the front platform (length × width) (mm) :2100×2085-2100×2085
The dimensions of the front platform's movable part (length × width) (mm) :820×1200
Curb weight (kg) : 10,480
Overall dimensions (length × width × height) (mm) :9450×2300×3400
Chassis model :QL1110ANPAY
The external dimensions of the body (length × width × height) (mm) :6600×2300 ×2100
Engine emissions: Emissions meet the requirements of Stage 6b in the sixth phase of GB 17691-2018 in China, and exhaust smoke meets the requirements of GB 3847-2018
Rated load (kg) of the fixed part of the front platform: 2200
