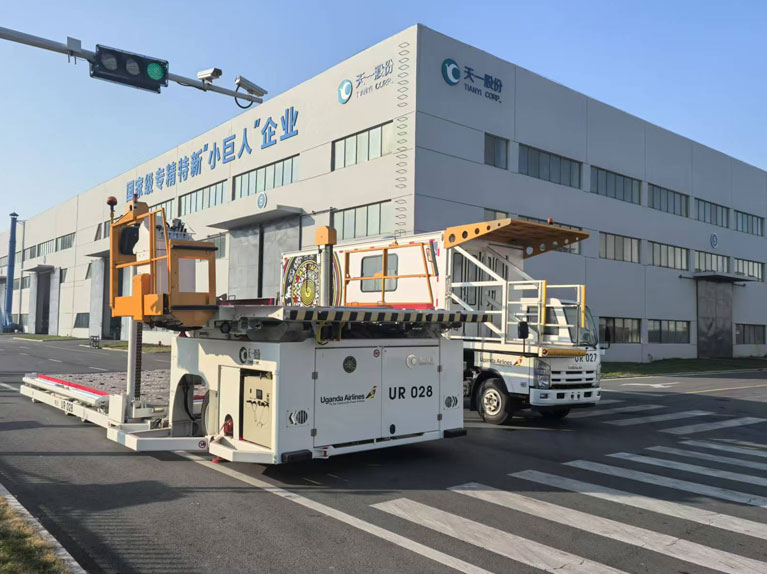

Technical features of container cargo loaders

The main function of the container loading machine is to lift the aviation containers and aviation container plates (hereinafter referred to as "cargo") to the aircraft cabin door, and transport the cargo from the loading machine to the aircraft cabin; or transport the cargo from the aircraft cabin to the ground.

The loading and unloading work of the loading machine is completed by an operator operating at the main control console. The operator must have the corresponding qualifications and be able to use the loading machine to complete the loading and unloading operations in accordance with the aviation ground operation manual and the procedures approved by the aircraft manufacturer.

Technical features of container cargo loaders

Lifting height range:

Main platform: 485 - 5640 mm

Bridge platform: 1970 - 5640 mm Speed:

Load transfer speed: 18 m/min (0.3 m/s)

High-speed driving: 14 km/h

Low-speed driving: 5 km/h

Main platform lifting time (15-ton load): 23 s

Main platform lowering time (15-ton load): 19 s

Full-speed braking distance:

Static pressure: 6 m

Dynamic: 3.4 m

Maximum allowable slope: 5%

External turning radius: 10 m

Vehicle weight: 23,300 kg

Fuel tank capacity: 260 L

Emergency pump: Electric pump and manual pump

Diesel engine: TCD 2.9 L4 HT

Electrical system: 24V direct current

Battery: 2x12V–110Ah–850A

Tires: 285/70R–19.5
