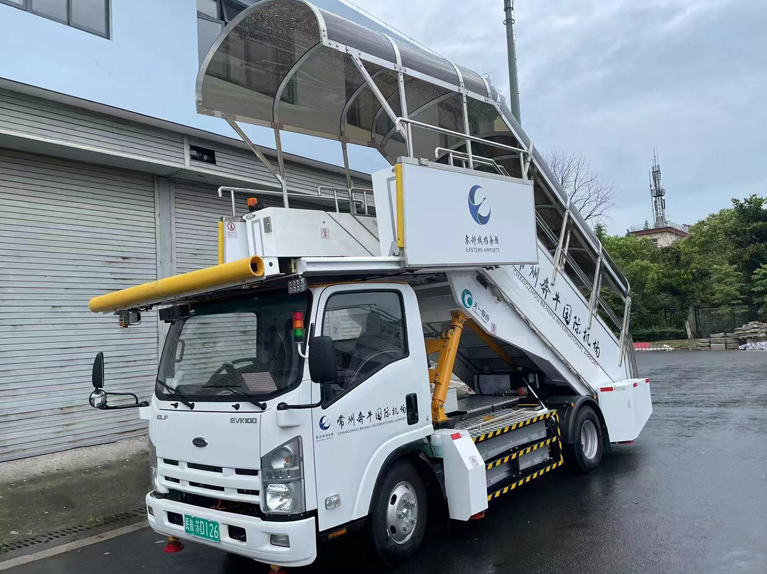

Technical specifications of passenger boarding stairs
Elevator Rise Height Range: 2200 - 4800mm
Platform Dimensions (Length × Width): 3400 × 2200mm
Travel Distance of the Moving Platform: 400mm
Stair Dimensions and Quantity:
Sliding Stair (Length × Width × Height): 1400 × 300 × 180mm, 9 steps;
Fixed Stair (Length × Width × Height): 1400 × 300 × 180mm, 12 steps;
Tail Stair (Length × Width × Height): 1370 × 300 × 145 1 step
Angle of the Stairway with the Horizontal Plane: 32° - 39° (35.5° when the ladder is at the lowest horizontal position of the platform)
Minimum Ground Clearance: 180mm
Outer Diameter of the Passage Circle: 14300mm
Axle Distance: 3360mm
Front/Back Wheel Spacing: 1685mm/1525mm
Overall Dimensions (Length × Width × Height): 7800mm × 2450mm × 3275mm
Overall Vehicle Weight: 6800kg
Effective Rated Load: 5440kg (68 people)
Platform Design Load: 1920kg (24 people)
Front/Back Wheels: 7.00R16 14PR
Range: 240Km
Power Battery Pack Battery: Lithium Iron Phosphate Battery Pack, 97.66kWh
Rated Voltage of the Power Battery (V): 537.6VDC
Battery Capacity (Ah): 180 Ah
Auxiliary Power Voltage (V): 12VDC
Continuous Power of the Driving Motor (kW): 60
Peak Power of the Driving Motor (kW): 110
Rated Rotational Speed of the Driving Motor (rpm): 1850
Maximum Rotational Speed of the Driving Motor (rpm): 4500
Operating Environment Temperature: -30℃ - 60℃
