Tianyi GSE sent to the customer China Southern Airlines electric Airport Catering trucks and diesel Aircraft Catering Trucks

Tianyi GSE has manufactured large-capacity 282KWH electric Airport Catering trucksand diesel Aircraft Catering Trucks, which have been delivered to China Southern Airlines, the client.

The Airport Catering truck can be widely applied to various aircraft models except the Airbus A380, including A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, DC8, 1L-18, 1L-62, MD11, MD80, etc.

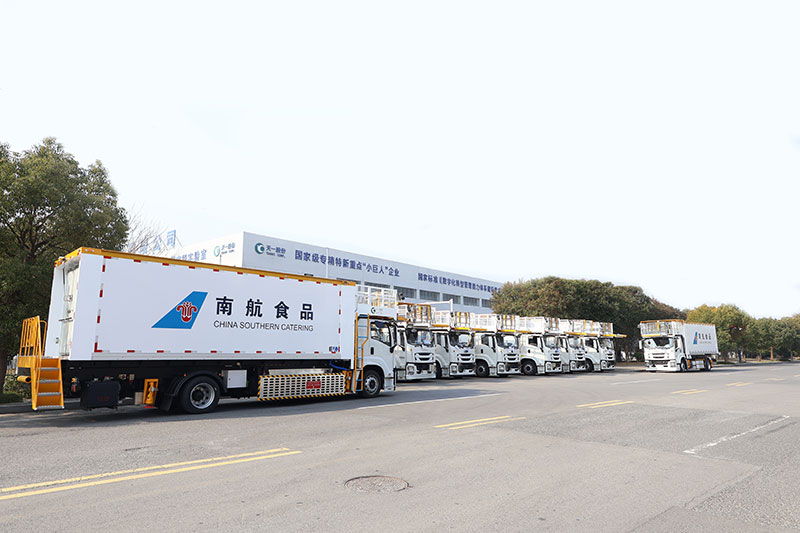

High-capacity 282KWH electric Airport Catering truck

Platform working height (mm): 2550 - 6200

Rated load of the body (kg): 6500

Rated load of the front platform (kg): 3000

Rated load of the movable part of the front platform (kg): 800

Adjustable range of the left and right of the movable part of the front platform (mm): 0 - 700

Adjustable range of the telescopic part of the movable part of the front platform (mm): 0 - 600

Dimensions of the fixed part of the front platform (L × W) (mm): 2050 × 2265

Dimensions of the movable part of the front platform (L × W) (mm): 950 × 1200

Overall weight (kg): 13790

Overall dimensions (L × W × H) (mm): 10500/10200 × 2500 × 3700

Range of driving distance (km): 440

Chassis: QL1180BEVELQHY

External dimensions of the body (L × W × H) (mm): 7500/7200 × 2500 × 2400

Rated load of the fixed part of the front platform (kg): 2200

Total energy of the energy storage device (kWh): 281.92

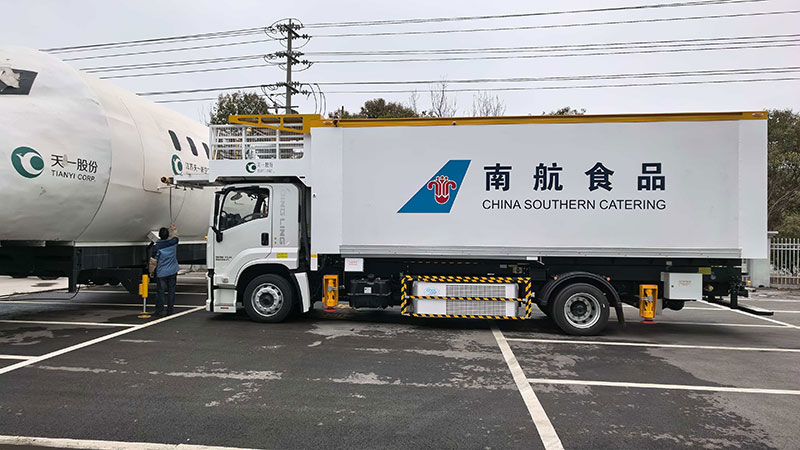

Diesel Aircraft Catering Trucks

Engine: 6HK1-TCG61

Transmission: Allison 2500

Platform working height (mm): 2550 - 6200

Trunk rated load (kg): 6400

Front platform rated load (kg): 3000

Front platform movable part rated load (kg): 800

Front platform movable part left-right adjustment range (mm): 0 - 700

Front platform movable part telescopic adjustment range (mm): 0 - 600

Front platform fixed part size (length × width) (mm): 1900 × 2265

Front platform movable part size (length × width) (mm): 950 × 1200

Overall weight (kg): 13280

Overall dimensions (L × W × H) (mm): 10400 × 2500 × 3700 (without canopy) / 3800 (with canopy)

Chassis: QL5190TZZAEQHY

Trunk external dimensions (L × W × H) (mm): 7500 × 2500 × 240
