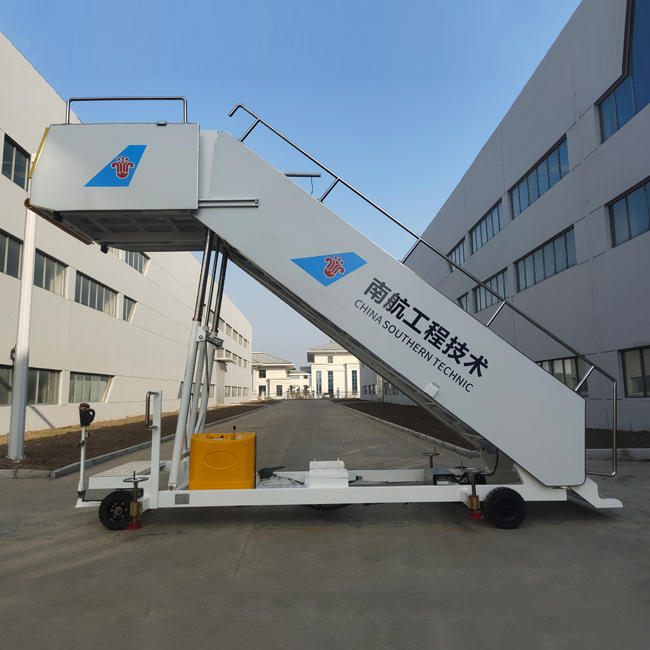

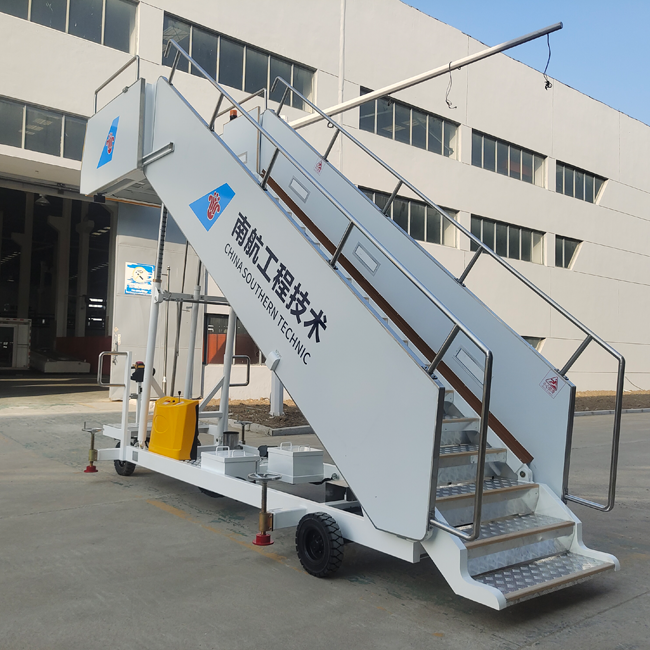

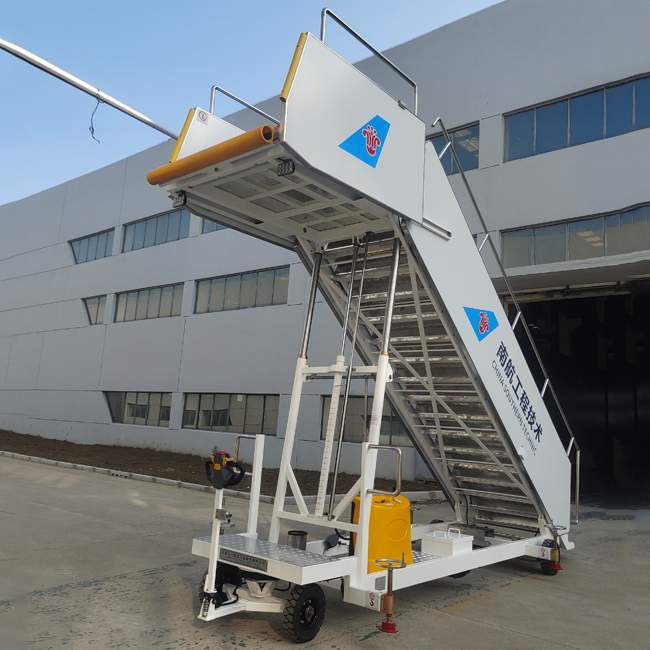

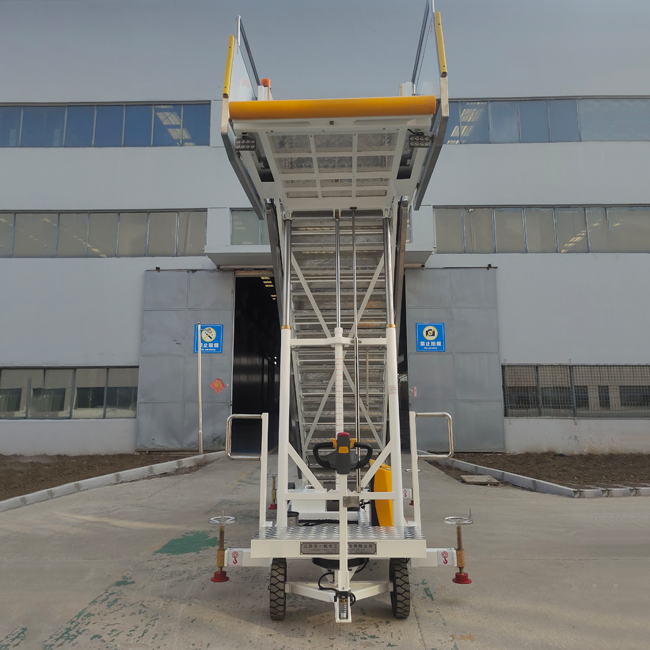

WTJ3600TKT Towable Aircraft Passenger Steps are composed of sliding door assembly, protection panel assembly, ladder body assembly, lifting mechanism, bottom frame assembly, platform assembly, tail ladder assembly, etc. The ladder structure is vertical plate change type, the boarding ladder up and down, the upper and lower ladder for parallel four-sided movement, the height of the platform from the ground change of 2500 ~ 3650mm.
Towable Aircraft Passenger Steps Configure three main parameters
Maximum tilt Angle of ladder body (°) : 39.5
Step dimension (depth × width × height) (mm) : 300×1120× (140 ~ 200)
Passenger elevator working height (mm) : 2500~3650
Height adjustment mode: step parallelogram displacement type
Number of steps on the ladder body: 18
Platform dimension (depth × width) (mm) : 2000×1400
Overall dimensions (length × width × height) (mm) : 6965×2230×3650
Quality (kg) : 1750
Channel circle Outer circle diameter (mm) : 9400
Other features: Optional rain cover
Chassis model: WTJ3600TKT-0900000
