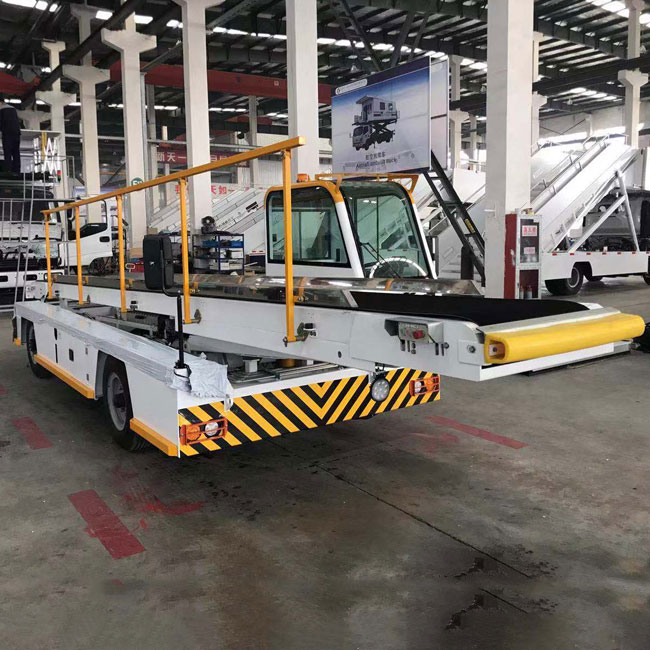

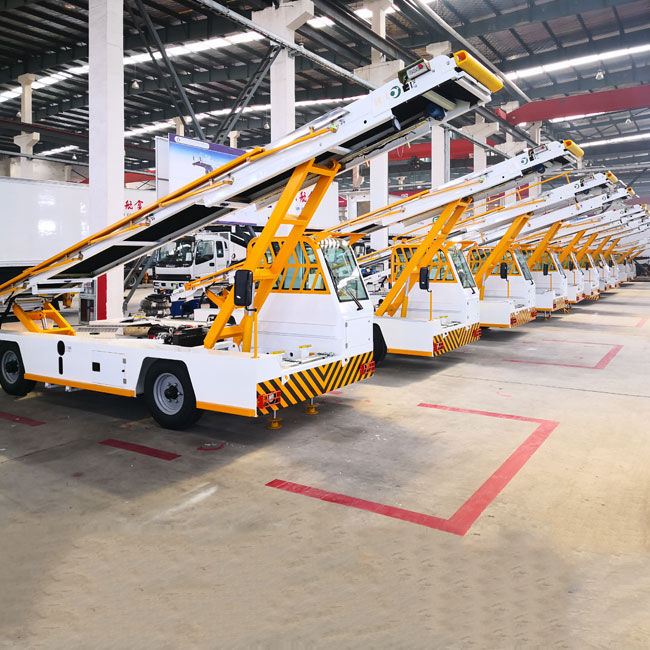

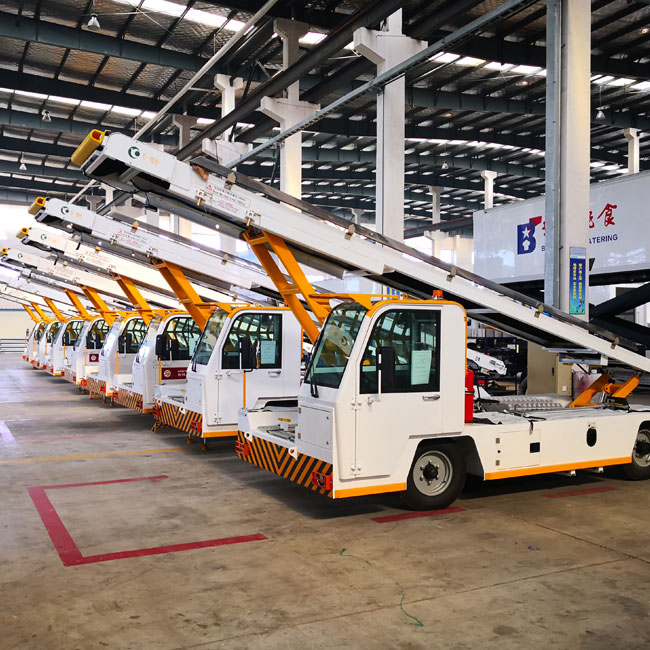

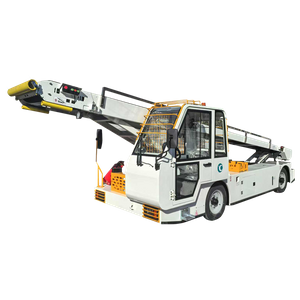

TY-XC80 Towable Belt Conveyor with mature structure and advanced manufacturing technology. The entire vehicle is composed of the chassis assembly, cab assembly, hoisting frame assembly, transmission frame assembly, and electrical and hydraulic components, etc. It can be used for loading and unloading luggage, light cargo and mail in and out of the aircraft underhold.
Diesel Towable Belt Conveyor Technical parameters configuration I
Chassis model: XC80.01000000
Engine model: 404D-22
Steering shaft model: JSTY530
Drive shaft model: JSTY13014
The working range of the conveyor belt (mm) : The lifting range at the front end: 1170-4330
The lifting range at the rear end: 520 to 1540
Transmission speed (m/s) : 0.16-0.5
Conveyor belt width (mm) : 700
Conveyor belt carrying capacity (kg/m) : 135
Overall dimensions (length × width × height) (mm) : 8140×2100×1960
Wheelbase (mm) : 3000
Maximum speed (km/h) : 40
Curb weight (kg) : 3700
The outer diameter of the channel circle (mm) : 20000
Engine emissions: Exhaust pollutants meet the emission limits of Stage IV in GB-20891-2014, and exhaust smoke meets the requirements of GB3847-2005.
