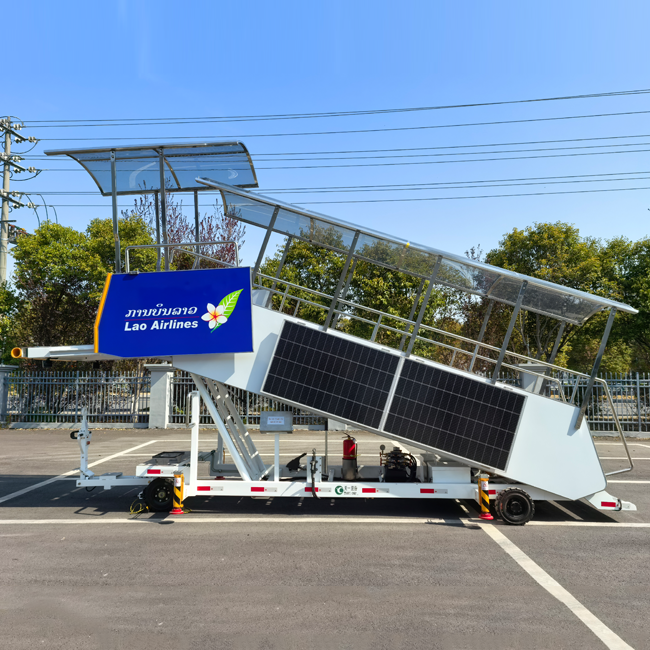

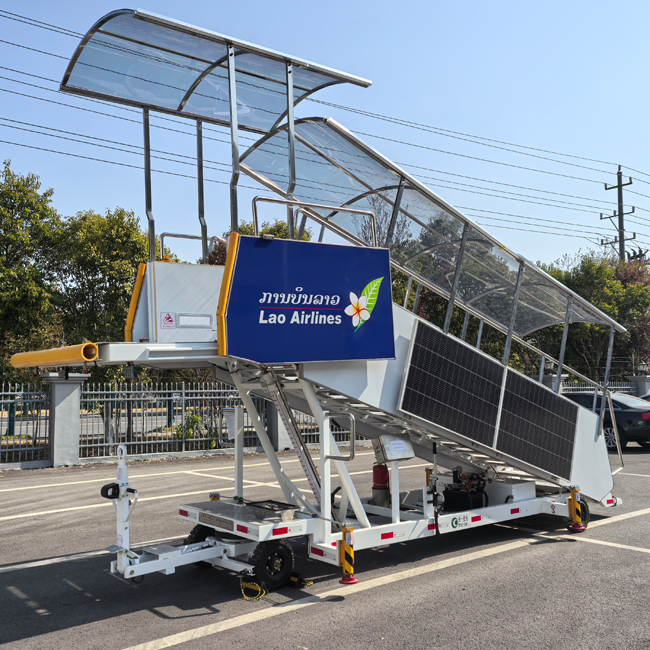

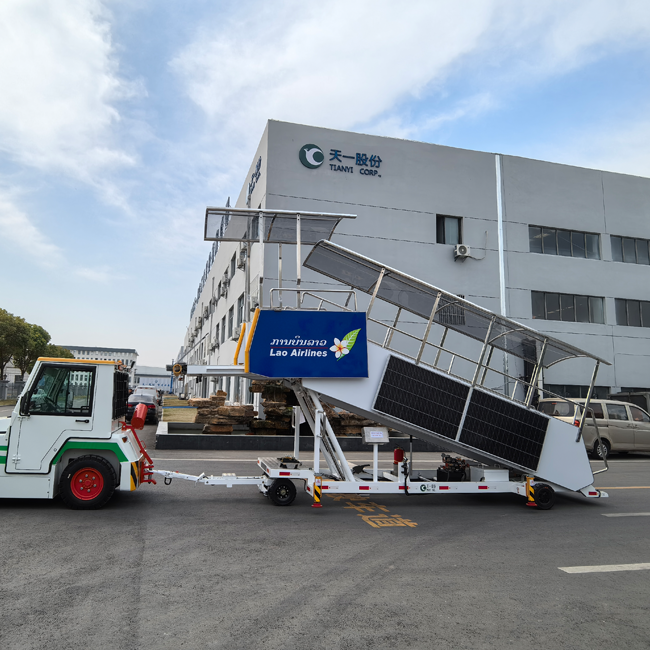

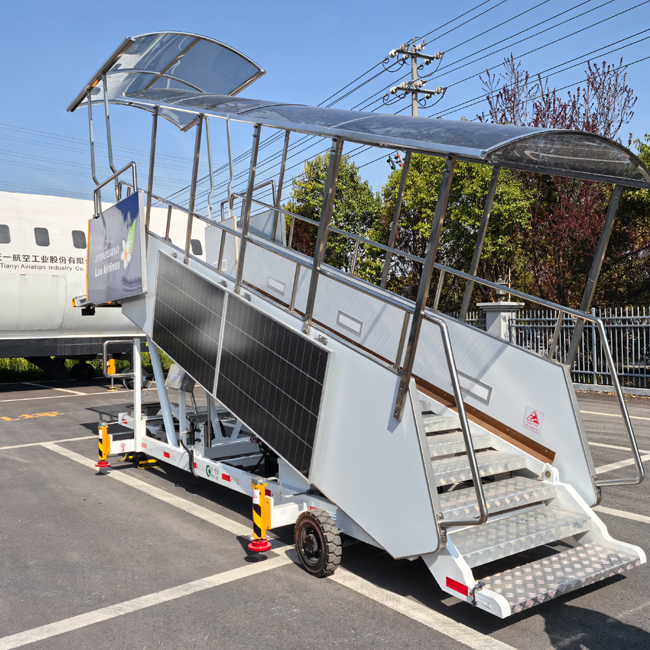

WTJ3600TKT Towable Passenger Stairs(power assisted) applicable to A318, A319, A320, A321, B707, B727, B737, DC-8/40/50F, DC8-61/61F, DC8-62/62F, DC8-63/63F, 1L-18 and other series of passenger aircraft for boarding and boarding. The height of the flight ladder platform from the ground is 2640 ~ 3600mm, and the flight ladder is provided with four hand support legs. Enhanced stability and safety in use; Enhance the stability of passenger elevator docking under high wind.
Towable Passenger Stairs(power assisted) configuration two main parameters
Maximum tilt Angle of ladder body (°) : 38
Step dimension (depth × width × height) (mm) : 300×1120× (140 ~ 200)
Passenger elevator working height (mm) : 2025~3440
Height adjustment mode: step parallelogram displacement type
Number of steps on the ladder body: 16
Platform dimension (depth × width) (mm) : 2000×1400
Overall dimensions (length × width × height) (mm) : 6700*2230*3250
Quality (kg) : 1750
Channel circle Outer circle diameter (mm) : 9400
Other features: Optional rain cover
Chassis model: WTJ3600TKT-0900000
