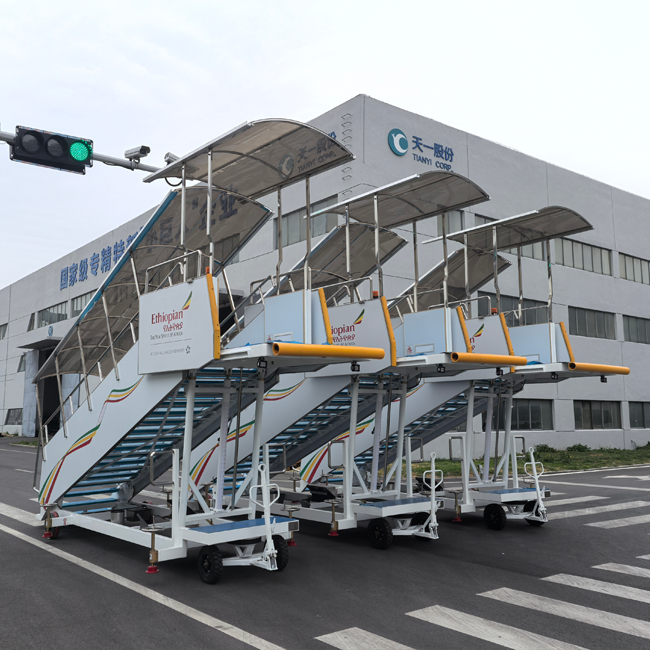

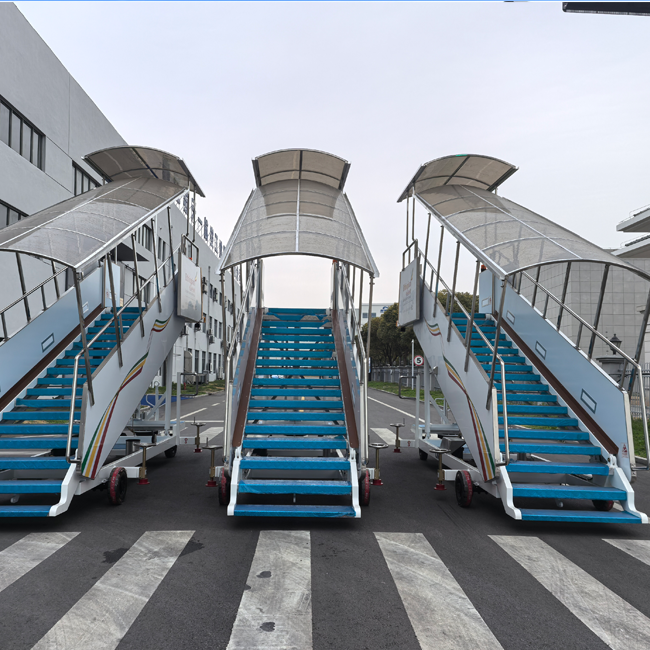

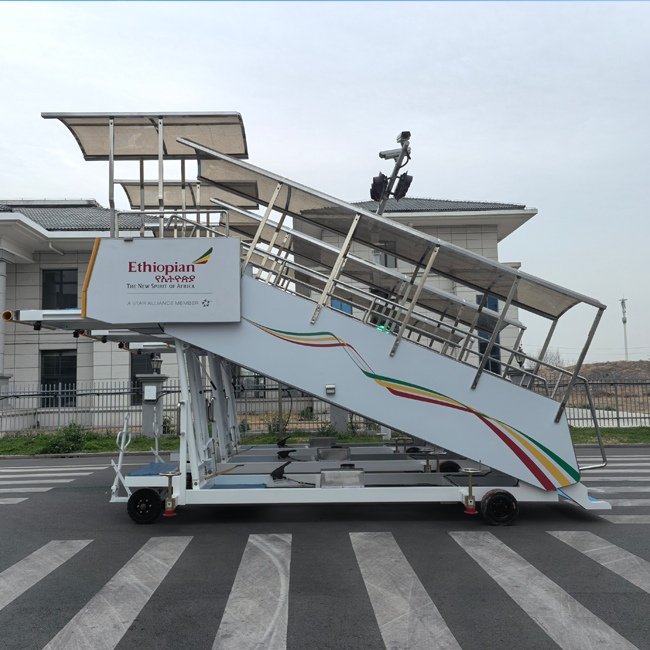

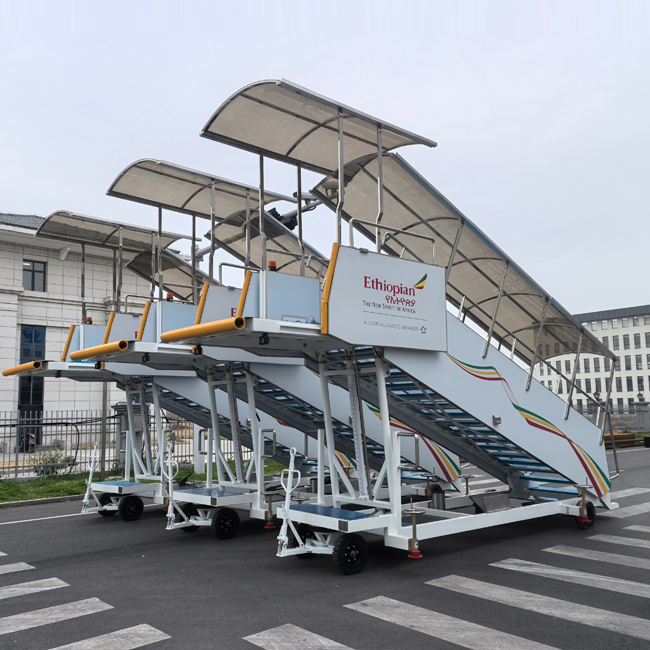

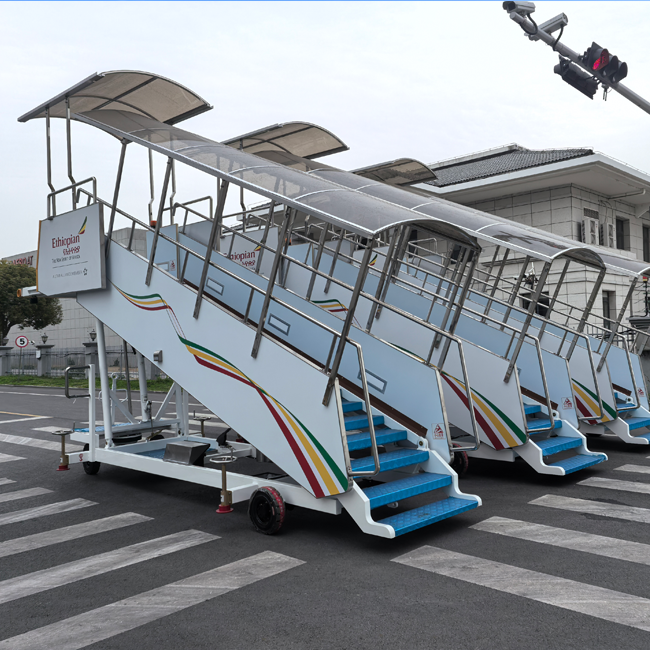

WTJ3600TKT Towable Passenger Stairs Truck is a kind of non-motorized passenger stairs developed by our company. It is beautiful in appearance, lightweight and practical. It adopts the principle of parallel four-sided running and can be adjusted stepless according to the height of the aircraft door. And has a continuous ladder body. The height of the flight ladder platform from the ground is 2640 ~ 3600mm, Suitable for A318, A319, A320, A321, B707, B727, B737, DC-8/40/50F, DC8-61/61F, DC8-62/62F, DC8-63/63F, 1L-18 and other series of passenger aircraft for boarding and boarding, and can also be used as a working ladder for the crew.
Towable Passenger Stairs Truck configuration four main parameters
Maximum tilt Angle of ladder body (°) : 38
Step dimension (depth × width × height) (mm) : 300×1120× (140 ~ 200)
Passenger elevator working height (mm) : 2025~3440
Height adjustment mode: step parallelogram displacement type
Number of steps on the ladder body: 18
Platform dimension (depth × width) (mm) : 2000×1400
Overall dimensions (length × width × height) (mm) : 7000×2100×3250
Quality (kg) : 1980
Channel circle Outer circle diameter (mm) : 9400
Other performance: optional rain cover, optional solar photovoltaic panel, can charge the battery, the maximum speed of 6km/h
Chassis model: WTJ3600TKT-0900000
