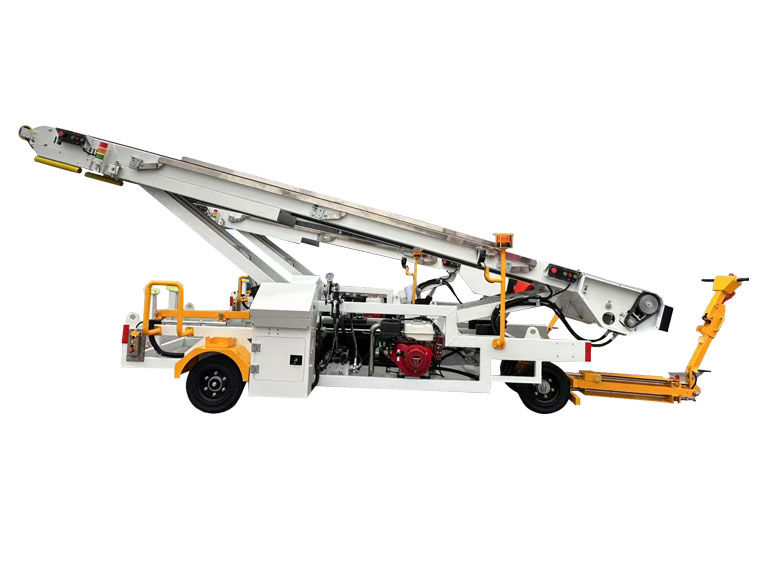

The towed bulk cargo loader is powered by an engine driven hydraulic gear pump as the power source, and the direction of travel is controlled by a manual push towing rod, and the direction of advance is controlled by a rotating towing rod. The height of the bulk cargo loader platform from the ground is 1000 ~ 3600mm. The height of the bulk cargo loader platform from the ground is 1000 ~ 3600mm.
Safety device:
Driving and lifting, conveyor belt work interlock;
Conveyor belt work and front and rear lift interlock;
A set of conveyor belt work buttons are installed on the front and back of the conveyor belt frame beam, and there is an emergency stop button; Can make the engine emergency stop, hydraulic system stop working;
Hand throttle is not reset, the gear does not work;
The lifting of the front and rear lift frames can only be controlled in the cockpit;
All exposed controls are rain proof.
Towed bulk cargo loader technology parameter table
Overall dimensions (length × width × height) : mm 6900×1490×1650
Vehicle mass kg: 2000
Minimum turning radius m: 7
Departure Angle ° : 8.5
Approach Angle ° : 12
Maximum elevation Angle of transmission girder: 30
Beam length mm: 6600
Beam width mm: 800
Belt width mm: 600
Transmission speed m/s: 0.16 ~ 0.5
Conveyor belt front-end lifting range mm: 900-3745
Conveyor belt rear end lifting range mm: 485-1585
Minimum ground clearance mm: 150
