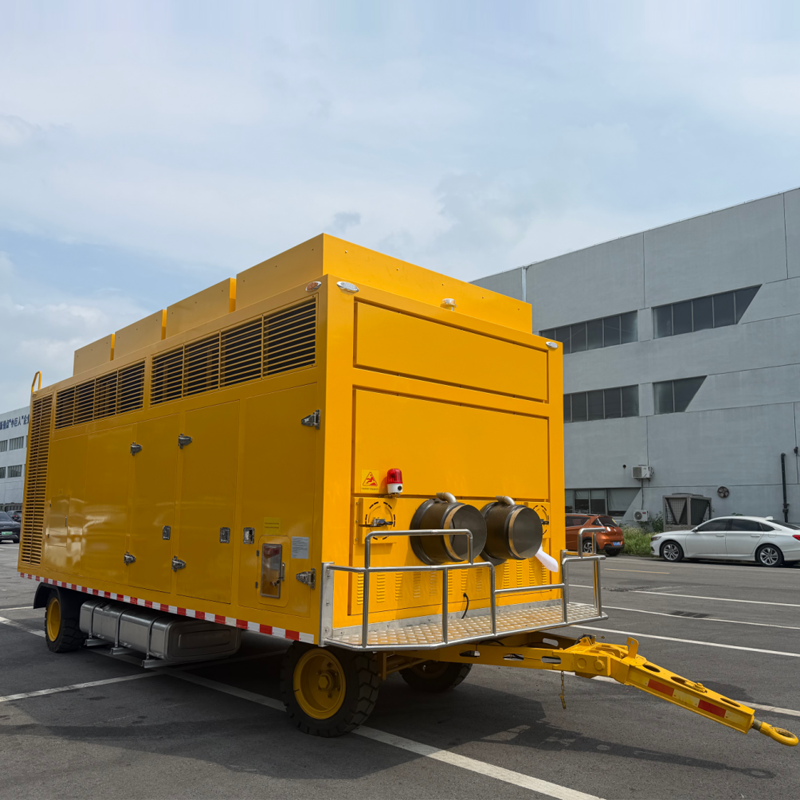

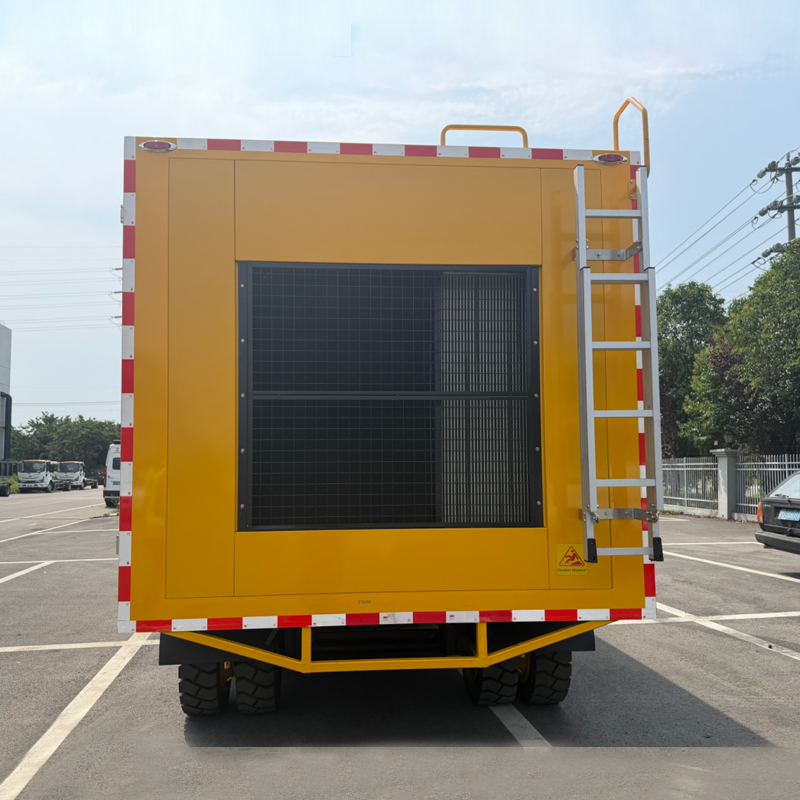

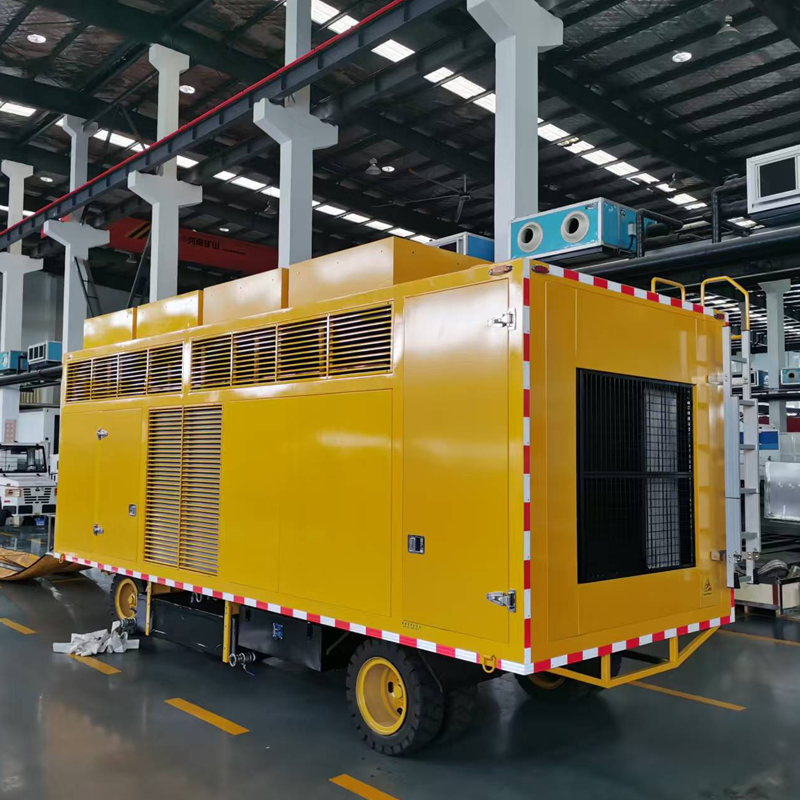

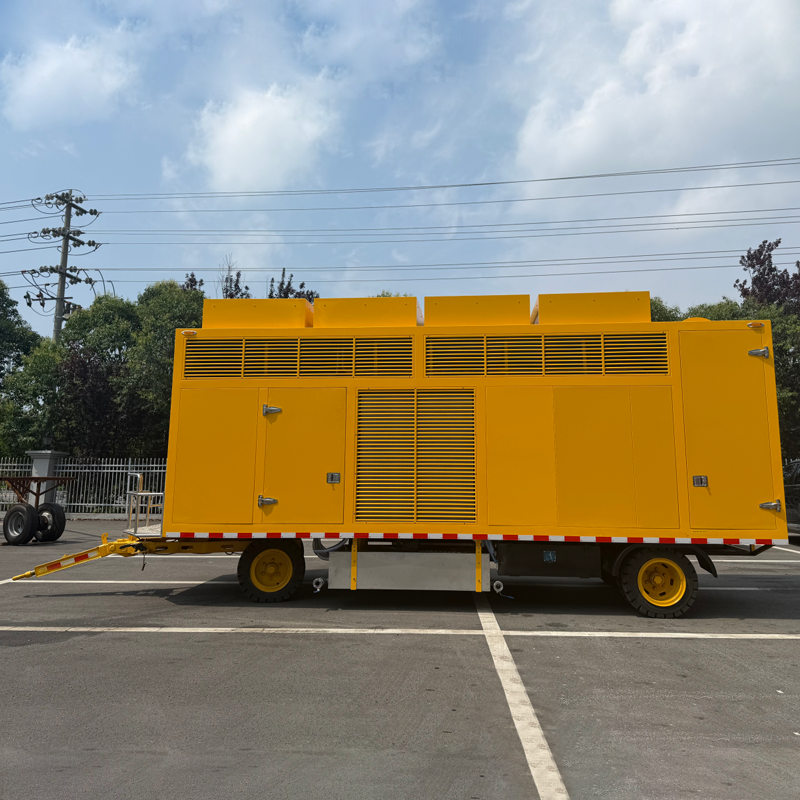

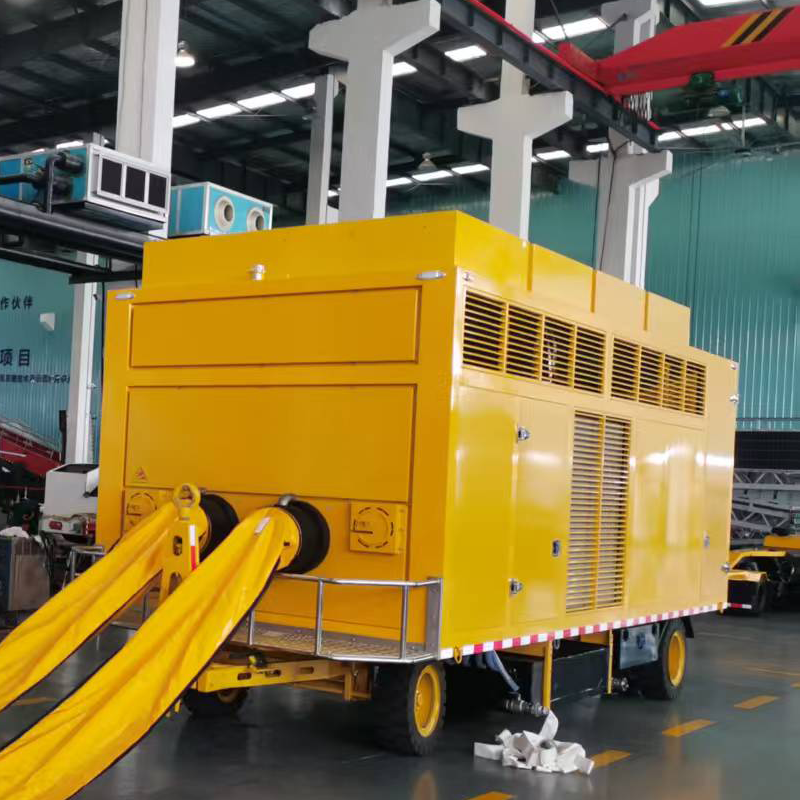

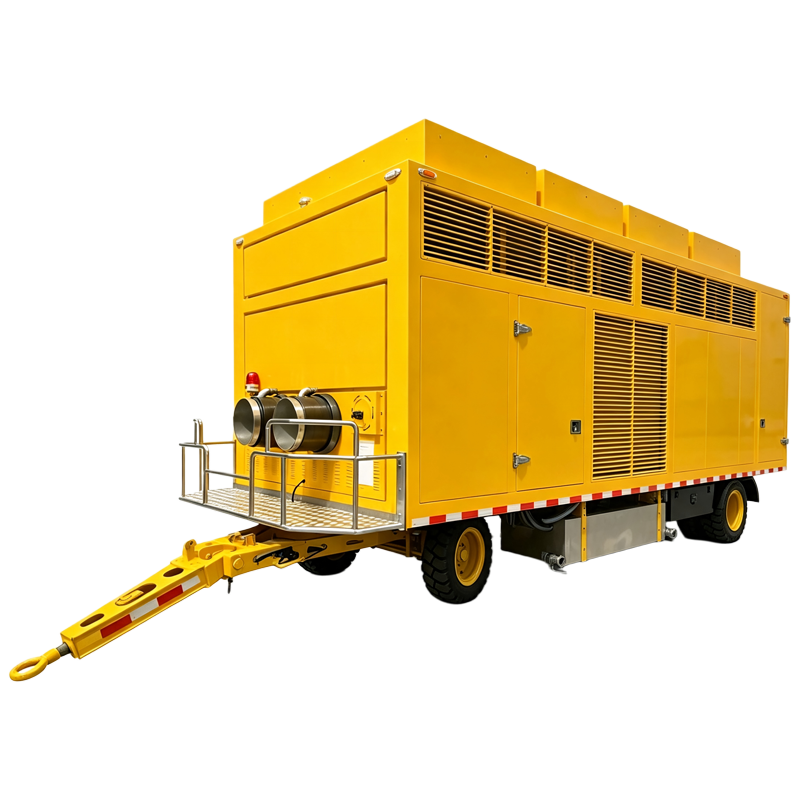

Towing aircraft air conditioning units

The towed aircraft air conditioning unit adopts modular design to adapt to a variety of installation forms: vehicle, lifting, towing, solid The standard carrying device uses the Qingling QL1101BEVEMMAY two-class electric chassis as the carrier.

Technical parameters of the towing aircraft air conditioning unit

Rated cooling capacity: 226 kW (T3)

Refrigerant type and charging quantity: R407C, 50 kg

Heating capacity: 120 kW

Energy supply: Diesel/380V/50Hz

Supply air volume: 6000 - 11000 m³

Supply air static pressure: 5500 - 8100 Pa

Maximum power consumption: 127 kW

Temperature regulation capability:

Cooling (35℃): 2℃ - 10℃ (temperature adjustable)

Heating (8℃): 40℃ - 60℃ (temperature adjustable)

Maximum overall dimensions (mm): 7300 × 2500 × 2810

Installation method: Vehicle-mounted

Continuous working capacity: Usually ≥ 8 hours (fuel);

Total unit weight: 9800 kg

Overall noise: 83 dB

Applicable aircraft types: Class D aircraft (B757/A330 and below)
