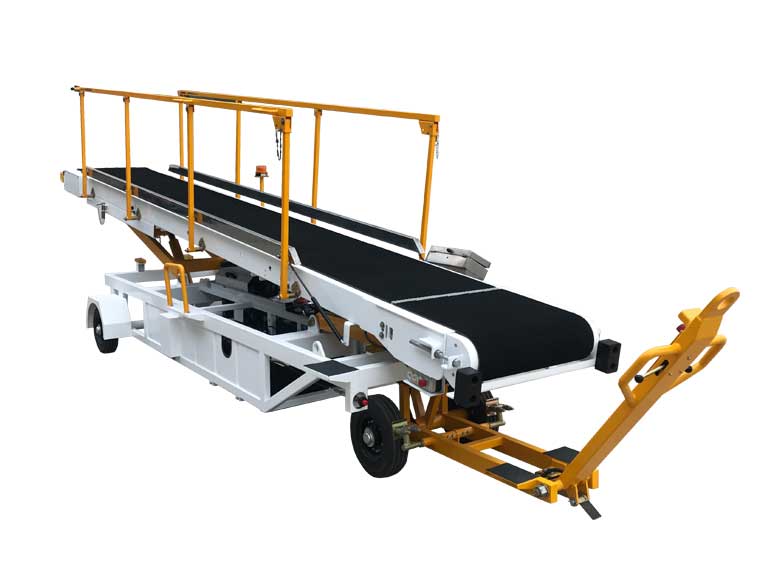

Towing Airport baggage belt loader manual hand to control the direction of travel, rotating the tow bar to control the direction of travel, manual hand to control the direction of travel, rotating the tow bar to control the direction of travel, the height of the bulk cargo loader platform from the ground is 1000 ~ 3600mm
Towing Airport baggage belt loader is mainly composed of the main frame, the load-bearing roller, the stainless steel slide frame, the driving roller, the driven roller, the adjusting roller, and the driving motor. The control switch and the emergency stop switch are equipped at the front and rear ends. The drive motor drives the belt to feed up and unload down through the drive roller. The driven roller and the adjusting roller can regulate the tension, skew and deviation of the conveyor belt. To enhance the structural strength, the main frame of the transmission frame adopts a channel beam structure. Buffer rubber blocks are installed at both the front and rear ends of the conveyor frame.
The load-bearing rollers made of seamless steel pipes are durable. The driving and driven rollers adopt a variable cross-section structure, eliminating the factor of conveyor belt deviation and making it easy to adjust.
Guide plates with a height of 100mm are installed on both sides of the conveyor frame to prevent luggage from sliding out of the conveyor frame. The left and right side baffles are movable and lower than the conveying surface when lowered.
Technical Parameter Table of Towing Airport baggage belt loader
The overall dimensions of the vehicle (length × width × height) in mm: 6900×1490×1650
Total vehicle weight kg: 2000
Minimum turning radius m: 7
Departure Angle ° : 8.5
Approach Angle ° : 12
Maximum elevation Angle of transmission beam: 30 °
The length of the transmission beam (mm) : 6600
The width of the transmission beam (mm) : 800
Belt width (mm) : 600
Transmission speed m/s: 0.16-0.5
Conveyor belt front end lifting range mm: 900-3745
Conveyor belt rear end lifting range mm: 485-1585
Minimum ground clearance mm: 150
