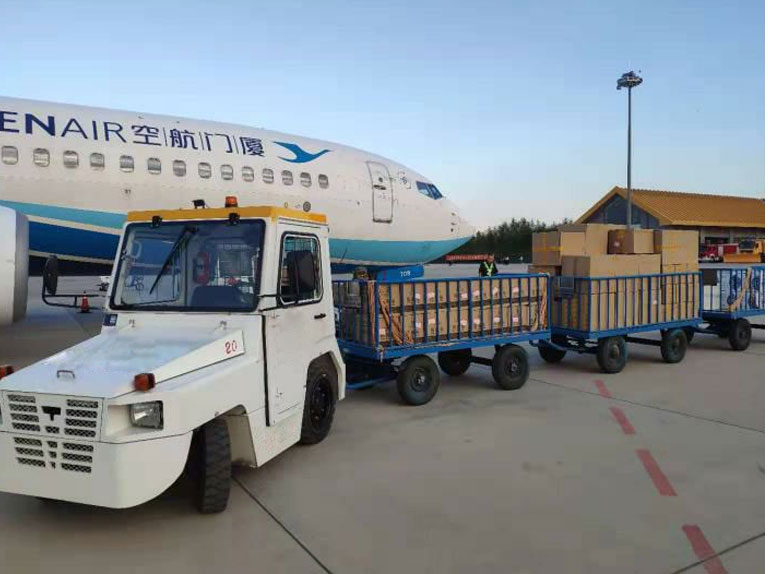

TY-TD25 luggage tractor adopts Cummins F2.8CS473 National IV emission diesel engine, and adopts Y43310X second gear hydraulic transmission produced by Okamura. The sample car is mainly composed of body system, power system, transmission system, steering system, braking system and electrical system. The maximum speed is 28km/h, the maximum hook traction is 25kN, the rated traction mass is 30t, and the minimum turning diameter is 5950mm.
Traction is the main parameter of a 25kN internal combustion baggage/cargo tractor
Total length mm: 3180/2950
Total width mm: 1490
Total height mm: 2180 (including cab)
Axis pitch mm: 1620
Front suspension mm: 690
Rear suspension mm: 640
Minimum ground clearance mm: 150
Minimum turning diameter mm: 5950
Maximum speed (no load/full load) km/h: 28/13
Maintenance weight kg: 4210
Front axle bearing mass kg: 1280
Rear axle bearing mass kg: 2930
Total mass kg: 4340
Rated traction weight kg: 30000
Maximum tractive force kN: 25
Height (front/rear) mm: 305/405
Maximum net torque/speed N·m/r/min: 270/1800
Variable speed box control mode: electro-hydraulic control
