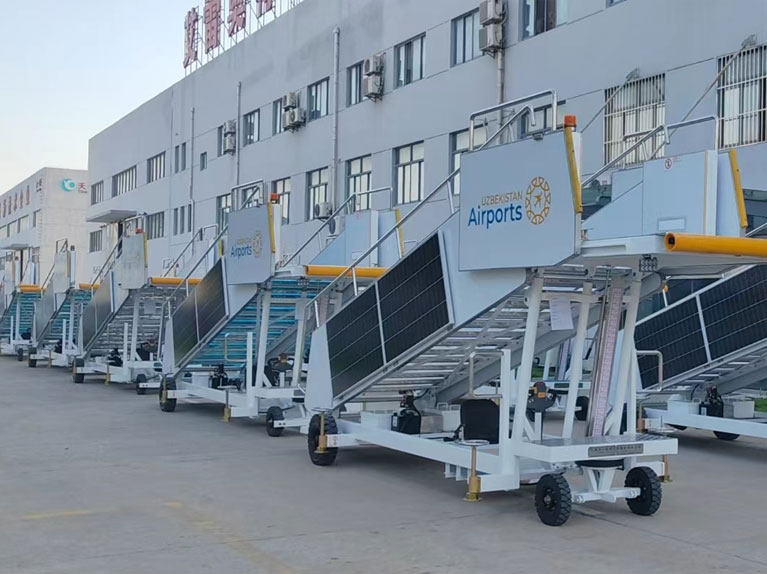

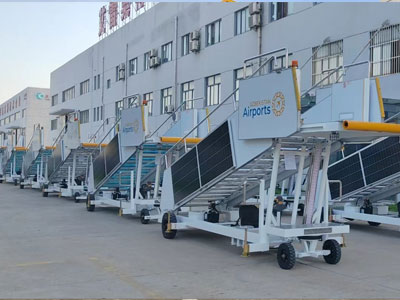

Unpowered hand-pushed passenger stairs

Unpowered hand-pushed passenger stairs working height of 2200 ~ 3750mm, It is suitable for passengers of A318, A319, A320, A321, B707, B727, B737, DC-8/40/50F, DC8-61/61F, DC8-62/62F, DC8-63/63F, 1L-18 and other series of passenger aircraft to get on and off, and can also be used as a ladder for maintenance staff to work.

Main parameters of Unpowered hand-pushed passenger stairs

Overall dimensions of the vehicle (length × width × height) : 7140×2230×3340

Platform size: 2000×1400

The height of the handrail on the ladder body is 1170

Front overhang: 525

Rear overhang: 1290

Wheelbase: 4030

The curb weight of the entire vehicle: 1900kg

Front wheel load: 1050kg

Rear wheel load: 730kg

Step number: 18

Pedal height (when the platform is 250/3600 off the ground) : 140/200

The outer diameter of the channel circle: 17000mm

Departure Angle: 5°

Approach Angle: 33°

Tilt Angle: 20° to 39°

Height adjustment method: Stepped parallelogram displacement type

Walking mode: Electric, hand-pushed or towed

Pedal size: 300×1120

The travel distance of the movable sliding door is 850

The lifting height of the work platform: 2200mm-3750mm

Cylinder stroke: 0-1540mm

The maximum distance between the front section of the platform and the starboard is 1000

Front/rear tire specifications: 4.00-8/6.5-10

Minimum ground clearance: 160mm

The maximum capacity of the entire elevator is 33

Operating environment temperature: -20 to 50℃

Manual thrust of passenger elevator car: ≤300N
