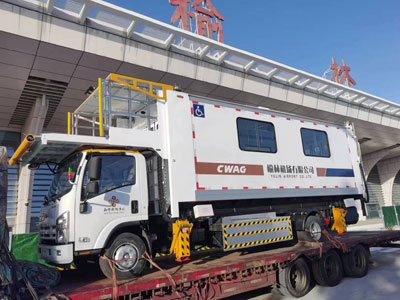

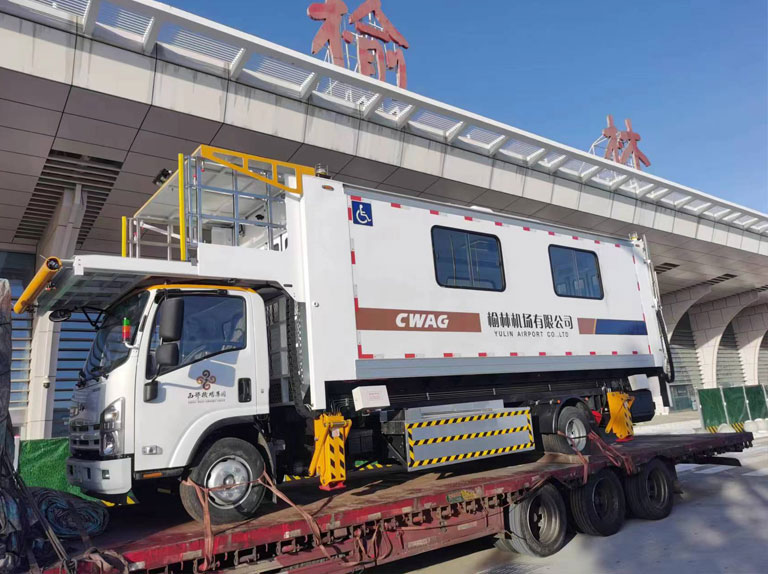

JSTY5100JCRE type Electric Airport ambulift is applicable to A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, DC8, 1L-18, 1L-62, MD11, MD80 and other aircraft types in addition to Airbus A380 aircraft The use of.
The Electric Airport ambulift is configured with four Performance indexes
Driving motor model: TZ370XS-LKM1201
Controller model: VCU06
Battery model: L150TX8
Platform working height (mm) : 2200 ~ 6100
Body load rating (kg) : 4000
Fixed platform load rating (kg) : 1700
Mobile platform load rating (kg) : 1100
Platform expansion adjustment range (mm) : 0 to 600
Fixed platform dimensions (L × W) (mm) : 2300×2000 2300×2000
Mobile platform dimensions (length × width) (mm) : 700×1960
Maintenance weight (kg) : 10600
Wheelbase (mm) : 5200
Overall dimensions (length × width × height) (mm) : 9570×2400×3770
Maximum speed (km/h) : 85
Minimum ground clearance (mm) : 180
Driving range (km) : 340
Chassis model: QL1103BEVEYMAY
