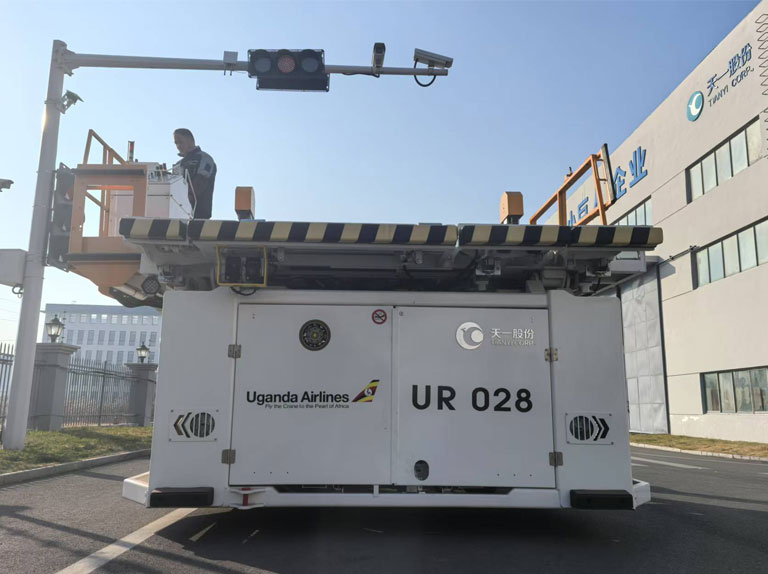

TY-PT14 Container Loader Load capacity
Container/container transfer to the lower compartment of the following models:
a, B747, B757, B767, B767ER, B777
b, DC10, MD11
c, L1011
d, A300, A310, A320, A330, A340 and A380 aircraft
Container/container transfer to the main cabin of the following models:
a, DC8F, DC9F
b, B707C, B727C, B727QC, B737C, B737QC
c, BAe 146QT/QC
Main platform processing power:
a, 4 LD2
b, 2 LD1, 2 LD3, 2 LD4, 2LD5, 2 LD8
c, 1 LD6
d, a 20-foot container or container board
e, two 2438 mm x 3175 mm standard containers or container plates
The loader's front loading and lifting heights range from 1970 to 5640 mm.
The TY-PT14 can be loaded and unloaded from ground vehicles at a height of 485mm, with a maximum loading and unloading height (main platform) of 1520mm (optional).
TY-PT14 Container Loader Load quality
Main platform lifting capacity: 15,000 kg
Lifting capacity of bridge platform: 14000 kg
