Why are Tianyi electric-assisted boarding ladders so favored by airlines

On the airport apron, the passenger boarding ladder is one of the most frequently used ground support equipment. However, the traditional manual boarding stairs are heavy due to their large weight. When moving between different aircraft positions, they often require multiple strong people to push and pull together, which not only results in low efficiency but also poses safety risks such as sliding and collision.

Product Highlights

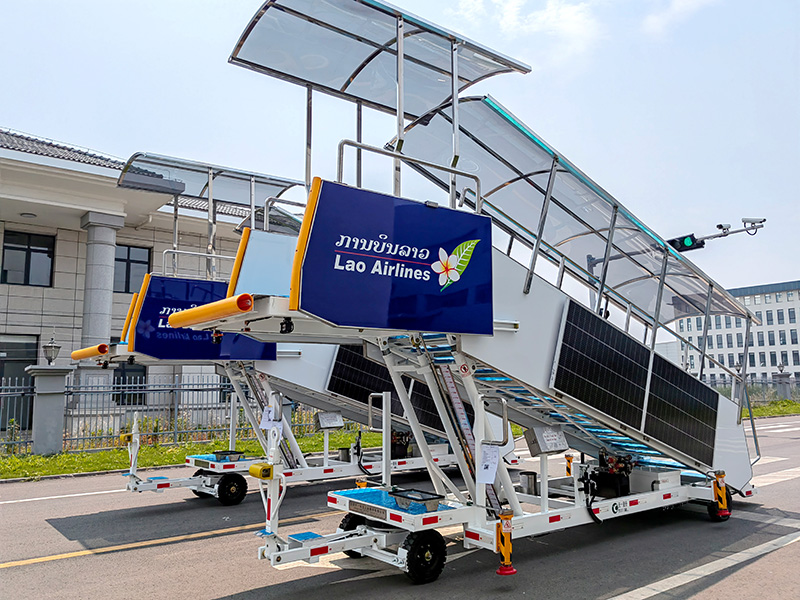

The equipment delivered this time is the star product of Tianyi GSE - electric power hand push boarding ladder.

✅ Lightweight and Effortless: Intelligent electric drive assistance allows one person to move it easily, significantly reducing the labor intensity of the maintenance staff.

✅ Green and Environmentally Friendly: Zero emissions and low noise, helping Lao Airlines create a green apron.

✅ Flexible and Efficient: Compatible with various aircraft models, it can be quickly transferred, improving the efficiency of flight stopover support.

The working height of the electric-assisted boarding ladder is 2200 to 3750mm. It is suitable for passengers to get on and off a series of passenger aircraft such as A318, A319, A320, A321, B707, B727, B737, DC-8/40/50F, DC8-61/61F, DC8-62/62F, DC8-63/63F, and 1L-18

Electric power boarding ladder main technical parameters:

Overall vehicle dimensions (length × width × height): 7140 × 2230 × 3340

Platform size: 2000 × 1400

Handrail height of the ladder body: 1170

Front overhang: 525

Rear overhang: 1290

Axle distance: 4030

Front wheel distance: 900

Rear wheel distance: 1550

Vehicle curb weight: 1900 kg

Front wheel load: 1050 kg

Rear wheel load: 730 kg

Outer diameter of the channel circle: 17000 mm

Pedal size: 300 × 1120

Travel distance of the movable door: 850

Working platform lifting height: 2200 mm - 3750 mm

Maximum distance between the front section of the platform and the deck: 1000

Front/Back tire specifications: 4.00-8 / 6.5-10
