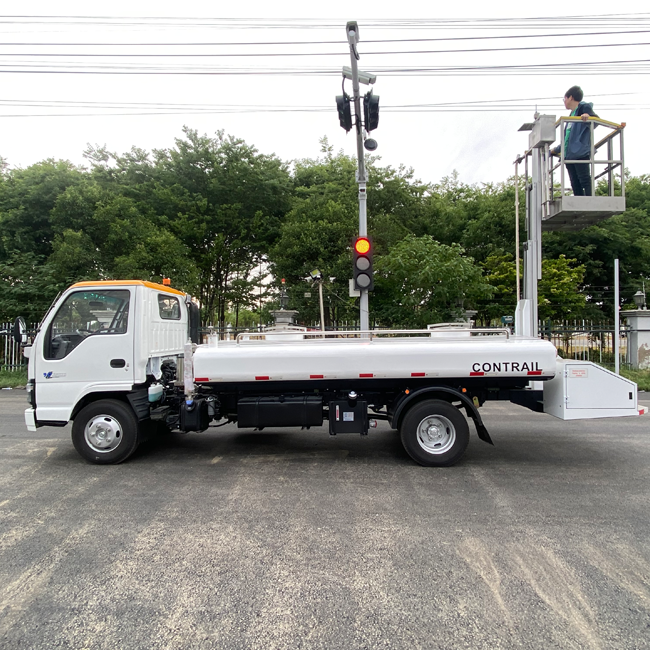

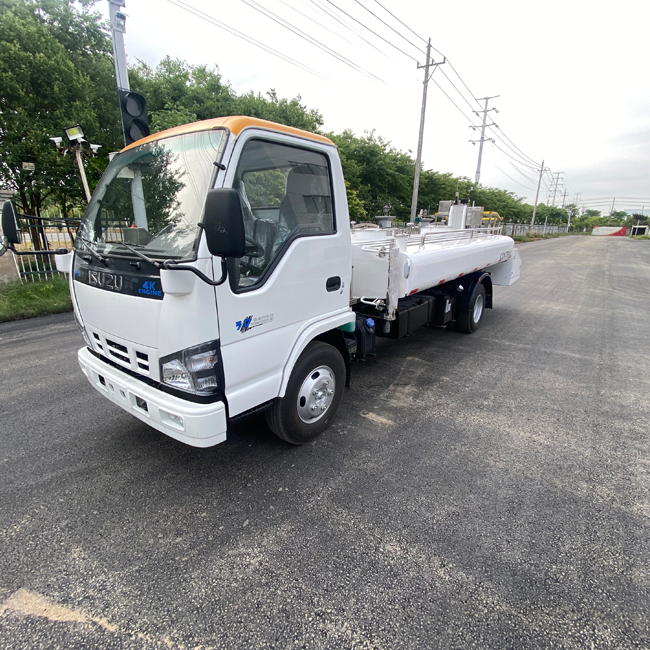

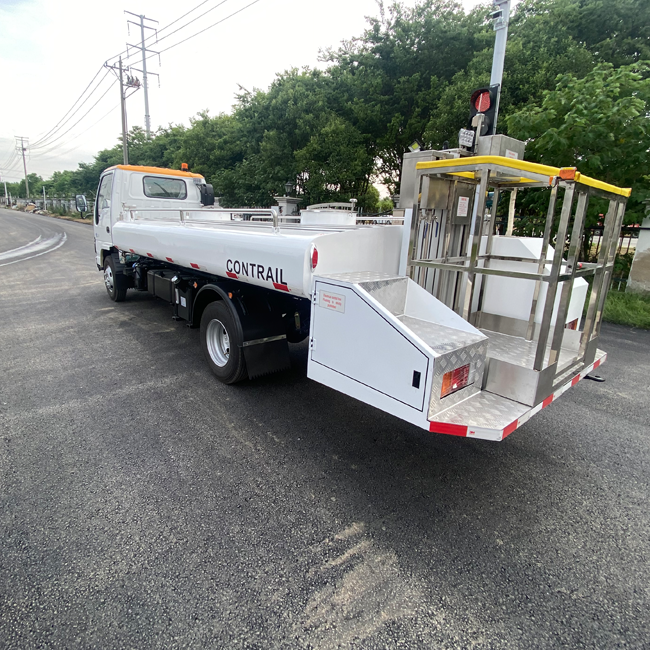

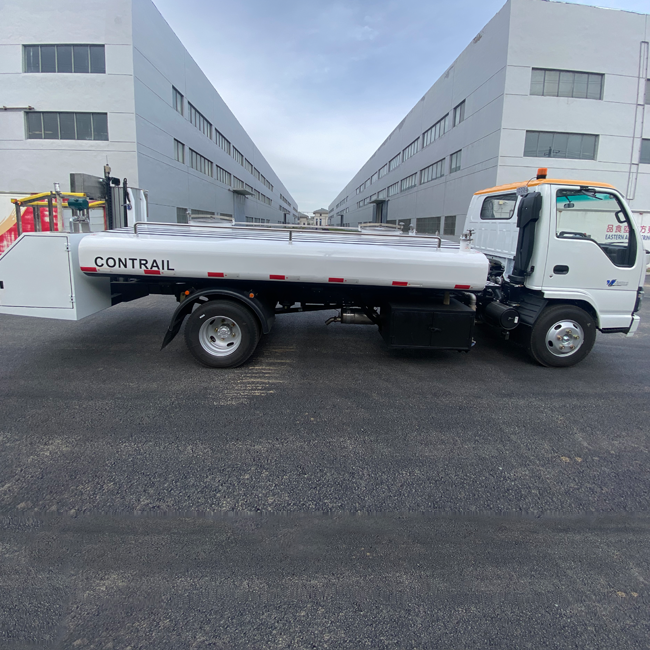

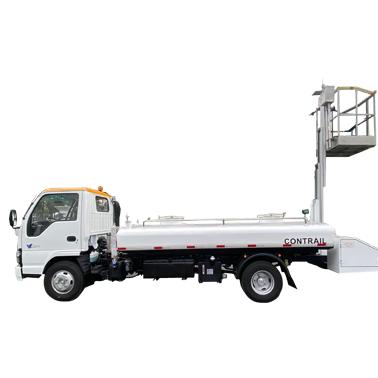

JSTY5070GQS Aircraft Water Service Truck is a new type of airport vehicle for refilling water for aircraft, which is modified from Qingling QL1070A5KAY chassis. The car is a manual chassis, designed as a rear lifting platform, large-capacity water tank, in which the lifting platform is equipped with night operation lights, convenient for night operations. The product chassis cab for the flat head, single row seat, two-door type, crew of 2 people; drive type for 4 × 2, fresh water tank volume of 4m ⊃3;, for fresh water flow ≥ 150L / min.
Product standard
1, MH/T6014-1999 "Aircraft water Car"
2, AHM970 "Aircraft water truck function Specification"
3, CCAR-331SB-R1 "Civil Aviation Administration of China Order No. 170"
4, CCAR-140 "Civil Aviation Administration of China Order No. 191"
Main performance indicators:
| Serial | name | parameter | name | Model number |
| 1 | Total length(mm) | 7265 | Total width(mm) | 2140 |
| 2 | Total height (mm) | 2295 | Wheelbase(mm) | 3815 |
| 3 | Wheel base (front/rear)(mm) | 1504/1425 | Front suspension(mm) | 1010 |
| 4 | Rear suspension (mm) | 2440 | clean water compartment volume (L) | 4000 |
| 5 | Approach Angle (°) | 22 | Departure Angle (°) | 6 |
| 6 | Minimum ground clearance (mm) | 200 | Channel circle diameter(mm) | 17000 |
| 7 | Weight (kg) | 4160 | Maximum speed (km/h) | 80 |
| 8 | Maximum operating speed (km/h) | 50 | Water supply flow (L/min) | ≥150 |
| 9 | Water supply pressure (Mpa) | 0.25-0.40 | Water pump material | Stainless steel corrosion resistant pump |
| 10 | Lifting height of the platform (mm) | 400-3000 | Maximum load capacity of the platform (kg) | 200 |
