Airline Catering Truck

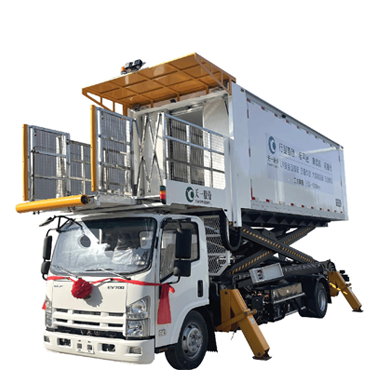

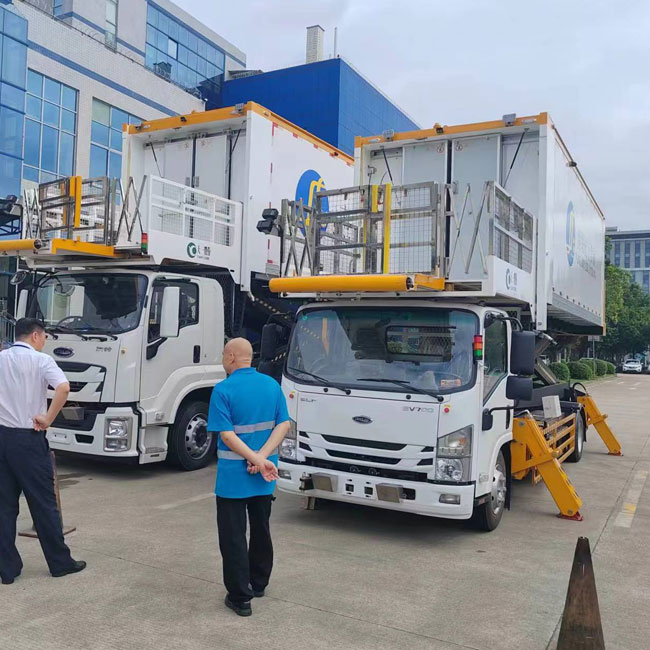

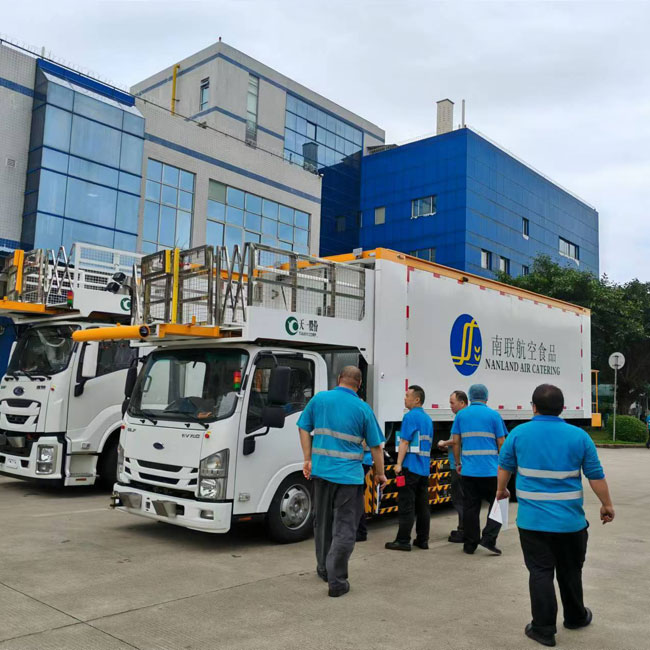

JSTY5100JSPE Airline catering truck is a kind of airport ground special equipment produced by Jiangsu Tianyi Airport Special Equipment Co., LTD. The aviation food truck (electric type) is mainly composed of QL1101BEVEMMAY type II electric chassis produced by Qingling Automobile Co., LTD., scissor-type hydraulic lifting mechanism, lifting front platform, carriage, front and rear sliding doors, retractable stabilizing foot assembly and refrigerating unit. Chassis cab for flat head, crew 3 people; The driving type is 4×2, and the maximum design speed is 80 km/h. The front platform of the aviation food truck can be moved forward and backward, left and right, and can be connected to various types of aircraft at the height of 2120 ~ 5820mm near the cabin door. The rated lifting weight is 3500kg, the rated load of the fixed platform is 1600kg, and the rated load of the movable platform is 600kg. The driving range is 170 km, and the operating temperature is -35 ~ +65 ℃.

Availability:
Product Description

Model:JSTY5100JSPE Airline catering truck


Main assembly structure and main technical parameters


Type Permanent magnet synchronous motor
species Lithium iron phosphate
Drive motor Rated power/speed kw/r/min 75/2000 Energy storage device type Energy type
Rated current A 200 Assembly system 1 and 192 strings
Insulation class H
Protection class IP67
Rated voltage VAC 220 Assembly voltage V 618.24
drive Input voltage VDC 540 Total energy stored kWh 106.96
electric Rated output voltage VAC 220 Unit nominal voltage V 3.22
Machine control device Control mode Torque control Unit rated capacity Ah 173
Cab type Flat head Number of passengers 3
Total length mm 9940 Total width mm 2300
Total height mm 3700 wheelbase mm 5200
Wheel base (front/rear) mm 1680/ 1650 Maximum speed km/h 80
Quality of maintenance kg 10600 Total mass kg 14300
Minimum ground clearancemm 180 Channel circle outer circle diameter mm 20000
Working height of platform mm 2120~ 5820 Rated carriage load kg 3500
Front platform rated bearing capacity kg 2200 Forward platform moving part rated bearing capacity kg 600
Rated bearing capacity of fixed part of front platform kg 1600 Left and right adjustment range of front platform moving part mm 0~500
Dimension of fixed part of front platform (length × width) mm 1900× 2085 Moving part of front platform (telescopic adjustment range) mm 0~600
Dimension of moving part of front platform (length × width)
mm
820×1200 Internal dimensions of car body (length × width × height) mm 6240×2150×2 200
External dimensions of car body (length × width × height) mm 7100×23 00×24 20 Driving range  km 170
Temperature range ℃ -35~65 —— ——


List of main assembly of sample car

Serial name Type number
1 chassis QL1101BEVEMMA Y
2 Vehicle controller VCU06
3 Drive motor TZ370XS-LKM0851
4 Drive motor controller KTZ54X35S-LKC08 51
5 gearbox J5S75
6 Energy storage assembly L173TB2
7 Energy storage unit CB220
8 Steering shaft F033
9 Drive shaft R066
10 Front/rear tires 245/70R17.5 18PR
11 Hydraulic pump CBN-F563-BFHL
12 Force extractor 4207010-LKN
13 Lift cylinder D160/145-1045
14 Front/rear leg cylinder D90/63-290
15 Moving platform cylinder D40/30-500
16 Telescopic platform cylinder D40/30-600
17 Electric emergency pump 800601632
18 Hand pump PMO 50-s
