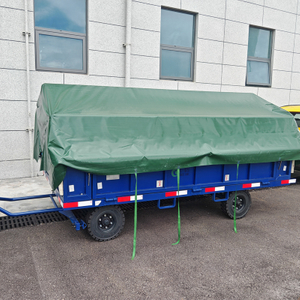

Luggage Trolleys

This dolly is mainly used to load the pallet P1P, P6P, and LD1, LD2 container. The working face is equipped with an insurance locking device to prevent the derailment of the container during operation.
Availability:
Product Description


luggage trolleys/dolly

Use:

This dolly is mainly used to load the pallet P1P, P6P, and LD1, LD2 container. The working face is equipped with an insurance locking device to prevent the derailment of the container during operation.

Overall dimension: 4022*3400*1567mm Flat dimension: 3400*2660mm

Height of working surface: 508-515mm Tire specification: front 300*125;back 350*100 Loading capacity: 7000kgs Weight: 1020kgs


Product Description:

1. The dolly working surface is equipped with 28 zinc-coated rollers which is to be advantageous for container loading and unloading.

2. The rear part is equipped with self-locking hook which prevents the dolly from getting unhooked.

3. The towbar has multi-dolly connection and braking dual functions.

4. The dolly is with special universal caster in forward shaft in order to

turn well in driving.

5. The tire uses the ultra-wearable solid core tire, the service life is long.

6. It’s designed to handle P1P,P6P collection paneling and LD1, LD2 aviation container.

7. Loading form: side loading.
