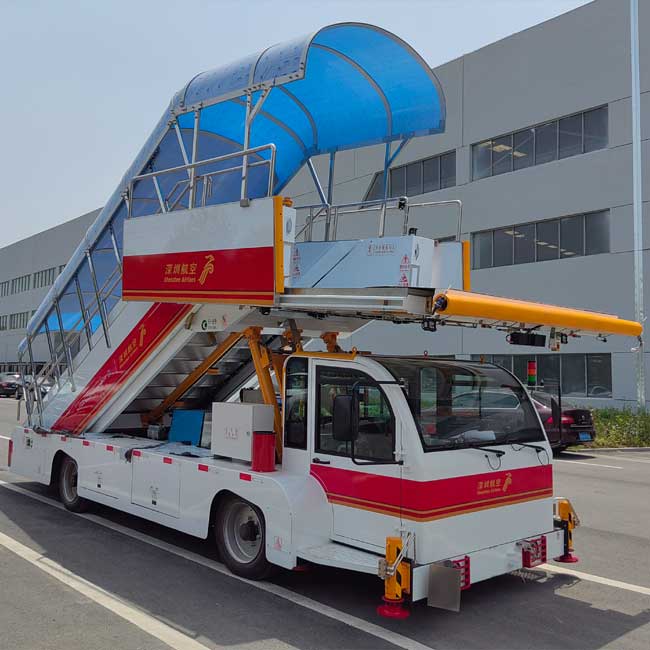

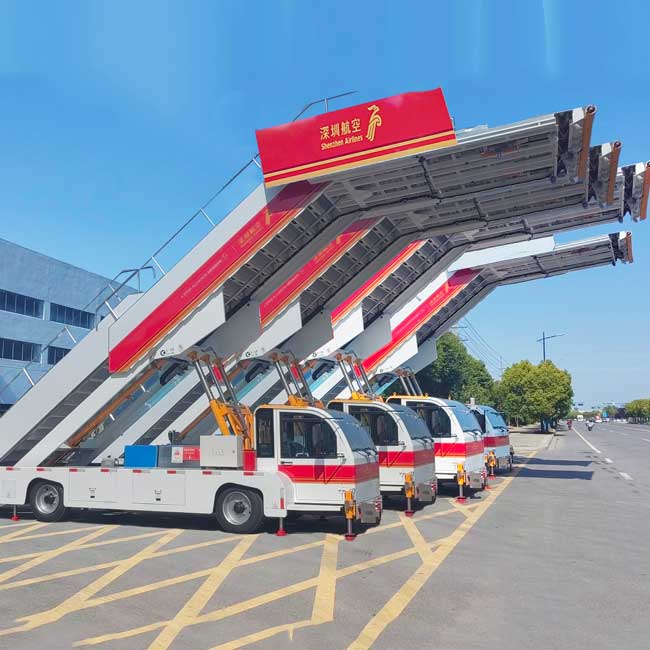

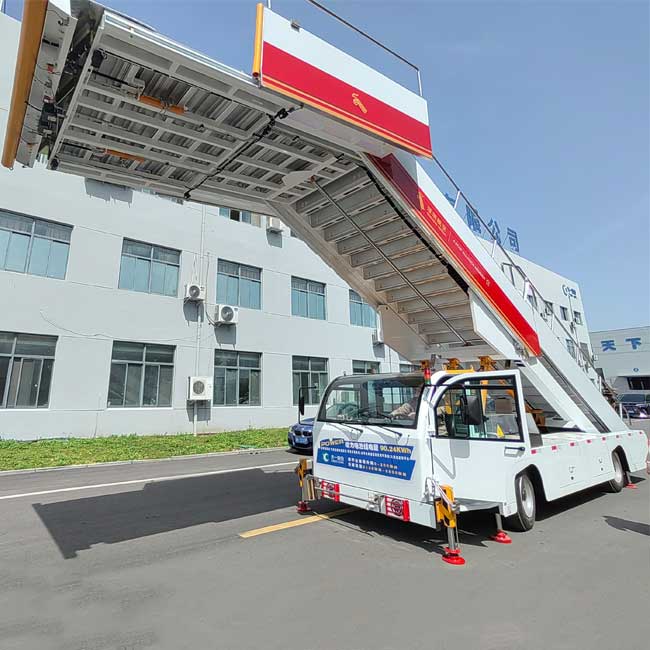

JSTY5080KTE Electric self-propelled Passenger Stairs are new all-electric airport ground equipment designed and manufactured by Tianyi Co., Ltd. for passengers to board and dismount aircraft. The platform of the passenger elevator is equipped with an operating device, allowing for fine-tuning of the elevator body Angle and the extension and retraction of the platform. During normal operation, the height of the tail elevator from the ground is 180mm. The handrail is made of stainless steel, and the entire machine adopts a self-made electric drive chassis with variable frequency stepless speed regulation.
Electric self-propelled Passenger Stairs configuration six main parameters
Driving motor model: HCDM030HP2
Model of driving motor controller: HC30LKPIC-K21-V1-TY
Model of the energy storage device assembly: L173G01
The maximum inclination Angle (°) of the ladder body: 38.5
Step dimensions (depth × width × height) (mm) : 285×1500×192
The working height of the passenger elevator (mm) : 2150-5800
Height adjustment method: Telescopic type for the upper and lower ladder bodies
Number of steps on the upper ladder: 12
Number of steps on the lower ladder: 15
Platform dimensions (depth × width) (mm) : 3300×2200, 3300×2810, 3300×1790
Overall dimensions (length × width × height) (mm) : 7990×2400×4900
Curb weight (kg) : 7700
Endurance (km+ times) for small airports: 152+76
Large airport: 151+74
Medium-sized airport: 151+75

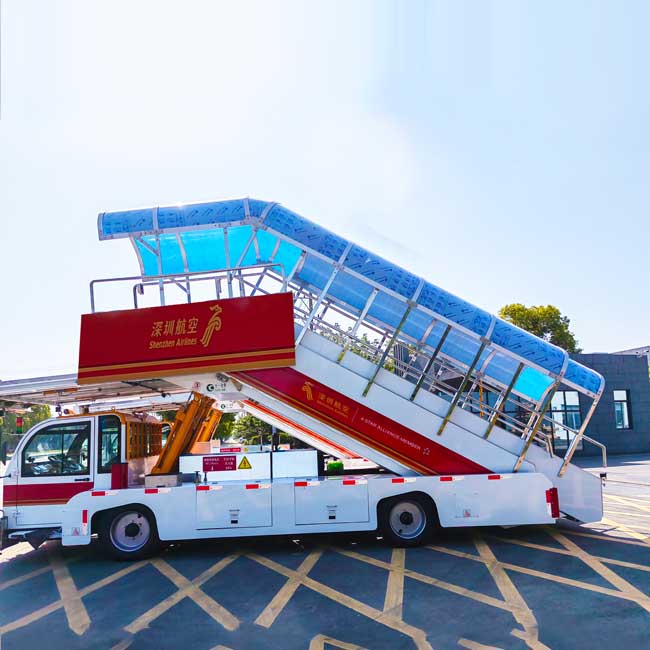

Other features: 1. Optional cab; 2. Semi-enclosed awning
Chassis model: JSTY5080KTE-1000000
Hydraulic motor model: HCDM007MG1
Hydraulic motor controller model: HCDM007CL1
Total energy storage device (kWh) : 90.24
