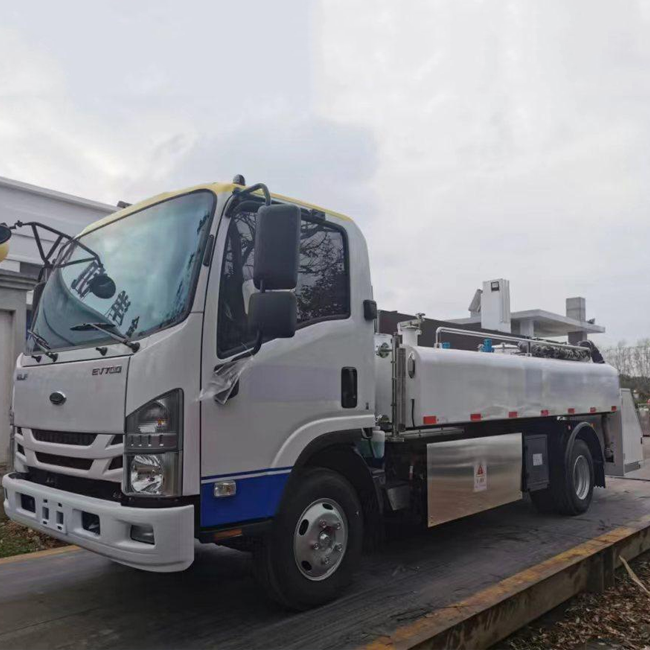

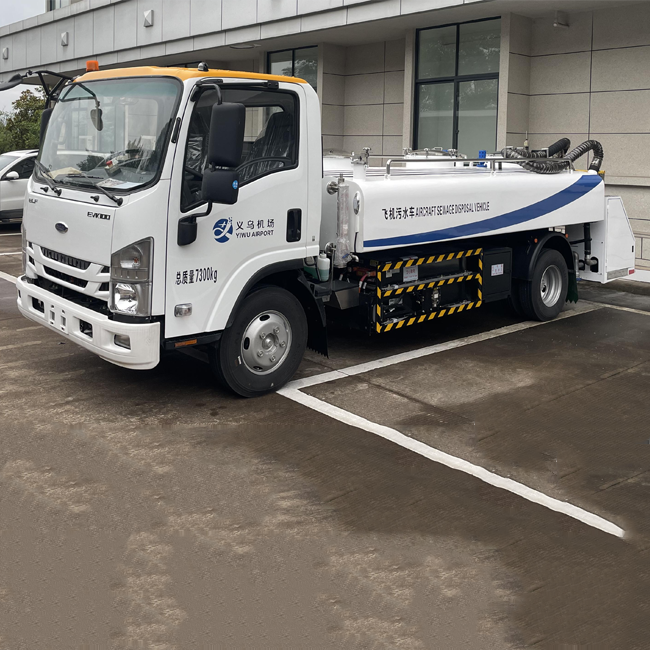

JSTY5060GWSE Electric Lavatory Water Service Truck tank is made of 5mm stainless steel 1Cr18Ni9Ti/5 stainless steel plate, the box is composed of three completely isolated water tanks: circulation tank: 120L, clean water tank: 1500L, sewage tank: 3000L. The inside of the water tank is equipped with a stainless steel anti-swing plate with a thickness of 4mm, to avoid shaking when the vehicle is running after the water tank is added, and the welding is firm, the layout is reasonable, and it is easy to clean. The top of the water tank is separately provided with an air vent valve. The two water tanks and the car girder are fixed in the form of rubber cushion connection, which reduces the vibration of the box when the car is driving.
Electric Lavatory Water Service Truck configuration Three Main performance indicators:
Clean water tank volume (L) : 1500
Volume of sewage tank (L) : 2880 (with vacuum pump) /3000 (without vacuum pump)
Water supply flow (L/min) : 180
Water supply pressure (MPa) : 0.345
Quality (kg) : 4600
Overall dimensions (length × width × height) (mm) : 7455×2100×2190
Maximum speed (km/h) :80
Driving range (km) :245
Chassis model :QL1070BEVECDAY
Circulation tank volume (L) :120 (with vacuum pump) /0 (without vacuum pump)
Drive motor model: YTD060W23
Drive motor controller model: KTZ50X35S
Motor pump model: YBZ5-C1.0A1T2/UVSHT1
Motor pump controller model: FA4Z5.5FAL00
Energy storage device assembly model: GXB2-G7A-6P42S
The total energy of the energy storage device (kWh) : 96.77
Working platform lifting height (mm) : 400 ~ 3000
