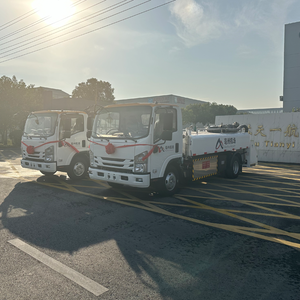

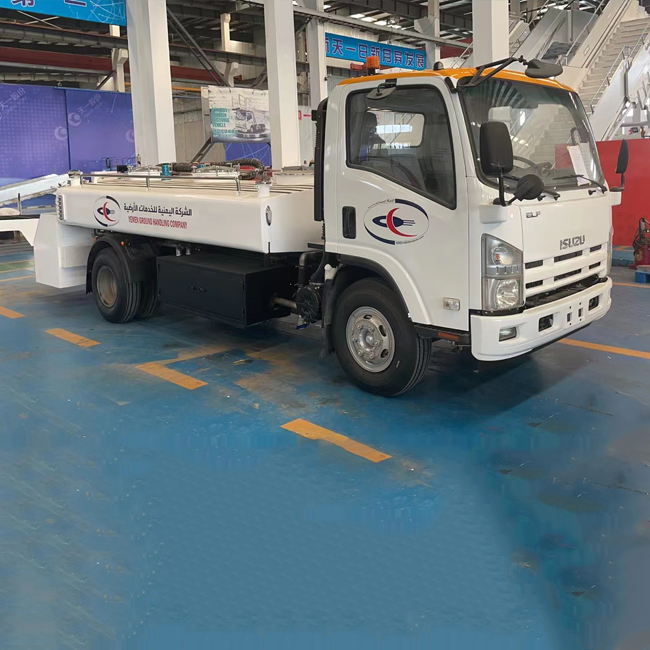

Product Standard
MH/T6014-1999 Portable Water Vehicle
IATA AHM 970 Function specification for Portable Water Vehicle IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment
IATA AHM 915 Standard Control device
IATA AHM 910 Basic Requirements for Airport Ground Support Equipment CCAR-137-CA-R3 Administrative provisions for civil airport equipment
AP-137-CA-2015-02 Survey arrangement for civil airport equipment GB3847-2005·Emission limits and measurement methods for compressed-combustion engine
GB20891-2014 Emission limits and measurement methods for diesel engine
Applicable aircrafts
It is applicable to A300、A310、A318、A319、A320、A330、A340、B707、 B727、B737、B747、B757、B767、B777、DC8、1L—18、1L—62、MD11、
MD80 type aircraft except A380.
Main performance indicators:
| Serial | name | parameter | name | Model number |
| 1 | Vehicle size (mm) | 6965*2100*2250 | chassis | QL1070BEVECHA2Y |
| 2 | Lifting height range of working platform (mm) | 400~3000 | Chassis vehicle controller | VCU02 |
| 3 | Clean water tank volume L | 1600 | Driving motor | YTD060W23 |
| 4 | Sewage tank volume L | 3480 | Drive motor controller | KTZ50X35S |
| 5 | Circulation tank volume L | 200 | Energy storage assembly | L173TB2 |
| 6 | Water supply pressure MPA | 0.25~0.35 | Energy storage unit | CB220 |
| 7 | Clean water flow L/min | 220 | Steering shaft | F033 |
| 8 | Wheelbase (mm) | 3815 | Drive shaft | R048 |
| 9 | Wheel base front/rear (mm) | 1685/1525 | tyre | 7.00R16 14PR |
| 10 | Channel circle outer circle diameter (mm) | 16500 | Tank body | JSTY5060GQSE-0200000-01 |
| 11 | Departure Angle (°) | 10 | Motor pump controller | HCDMC005VT3 |
| 12 | Approach Angle (°) | 21 | Water pump | DL12-60 |
| 13 | Longitudinal passage Angle (°) | 15 | Clear water connection for sewage truck | A-5 |
| 14 | Maximum speed Km/h | 80 | Sewage joint | A-7 |
| 15 | Total vehicle mass (kg) | 4750 | Sewage pipe | A-9 |
| 16 | Minimum ground clearance (mm) | 185 | Lift cylinder | GTWY350-2.8 |
| 17 | Equipped with vacuum pump, vacuum bar | 0.2 | Power unit | DLDY-1.0/0.8-3 |
| 18 | Applicable temperature ℃ | -35-65 | Monitoring system | D5804 |
| 19 | Rated power of driving motor KW/r/min | 60/1850 | 360° panoramic view system | YG-SVMS-3D(I.MX6) |
| 20 | Battery capacity kwh | 106.95 | Electromagnetic main power switch | DK238 12V |
| 21 | Range km | 312 | relay | RH4B-UL |
| 22 | Assembly voltage V | 618.24 | Toggle switch | 1NT-3 |
| 23 | Total energy stored Kwh | 106.95 | Relay socket | DTF14A |
| 24 | species | Ningde era lithium iron phosphate | sensor | UGT521 |
| 25 | Water tank cleaning material/thickness mm | 316L/5 | Alarm light | FL4871 |
| 26 | Minimum stable speed Km/h | 0.8 | Emergency switch | YW1B-V4E11R |
| 27 | Touch switch | CWLNJ | ||
| 28 | Indicator light | AL6M | ||
| 29 | Travel switch | XCMD2145L1 | ||
| 30 | flowmeter | LWGY |
