Aircraft Ambulift equipment

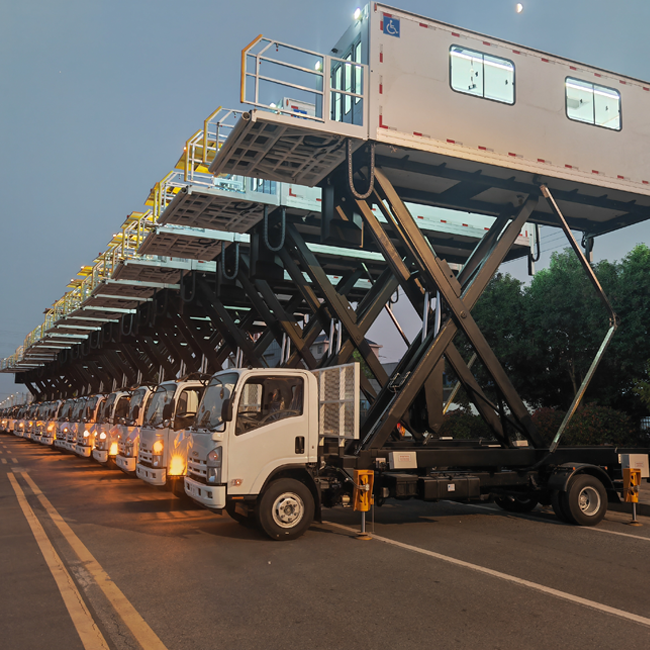

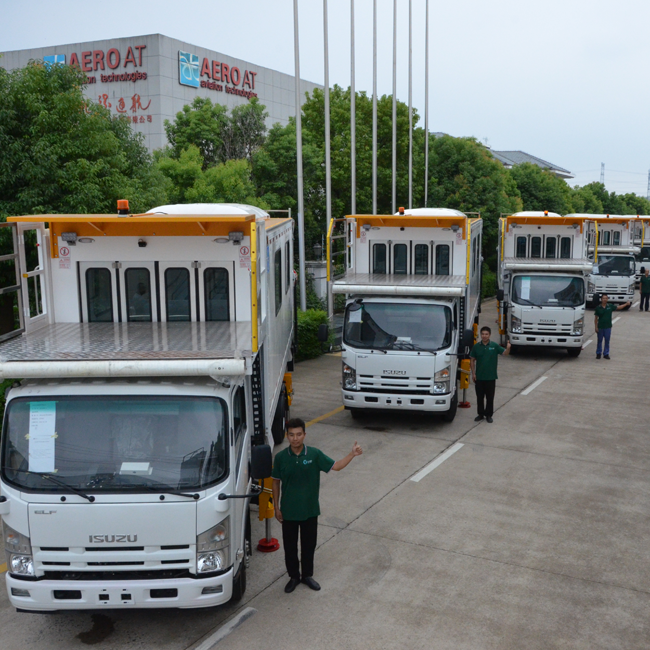

Retrofitted from ISUZU second class chassis, WTJ5080JCR ambulift is advanced in technology, safe and reliable for use with all performances better than similar products retrofitted from domestically produced chassis.
Availability:
Product Description

WTJ5080JCR AMBULIFT

1. Product profile

Retrofitted from ISUZU second class chassis, WTJ5080JCR ambulift is advanced in technology, safe and reliable for use with all performances better than similar products retrofitted from domestically produced chassis.

It is applicable to A300、A310、A318、A319、A320、A330、A340、A350、B707、B727、B737、B747、B757、B767、B777、C919、DC8、1L—18、1L—62、MD11、MD80 type aircraft except A380.


2. Product standard:

IATA AHM910《Basic Requirement for Airport Ground Equipment》;

IATA AHM 913《Basic Safety Requirement for Airport Ground Equipment》;

IATA AHM 915 《Standard control device》;

IATA AHM979《Function specification of disabled/incapacitated passenger boarding vehicles》


3. Mail configuration

Chassis: Isuzu QL1070A1KAY; Isuzu QL1070A5KAY;

Transmission: Isuzu MLD-6Q(Manual); Allision2500(Automatic)

Engine: Isuzu 4HK1-TCG40 (IV); Isuzu 4HK1CN5HS (V);

Tail plate: option

Hydraulic and electric system: imported from oversea

Thermal insulating door: Moving doors or rolling doors or folding door

Monitoring system: car backing radar with GPS/WIFI

Insulated device: 1. Diesel heating system; 2. Engine coolant heating device(220V);

Safety device: Monitor; car backing radar; protective device


4. Technical parameter

No. Name of project Performance index Note
Configuration 一 Configuration 二
1 Type of chassis ISUZU QL1070A1KAY ISUZU QL1070A5KAY
2 Type of engine ISUZU 4HK1-TCNG40 ISUZU 4HK1CN5HS
3 Engine emission GB 17691-2005 China IV GB 17691-2005 China V
4 Type of transmission ISUZU MLD-6Q ISUZU MLD-6Q
5 Height of platform mm 2400-5700 2400~5800 ——
6 Loading of van body ㎏ 1000 ——
7 Adjustment range of mobile platform mm 0~600 ——
8 Adjustment range of extensible platform mm 0~600 0~500 ——
9 Size of fixed platform ---mm 1200×2200 1200×2200 ——
10 Size of mobile platform mm 800×1300 ——
11 Size of van body ㎜ 4190×2090×2030
12 Loading of fixed platform ㎏ 500 ——
13 Loading of movable platform ㎏ 300 ——
14 Overall dimension mm 8360×2260×3780 ——
15 Curb weight kg 7840 ——
