Aircraft Rubbish Truck

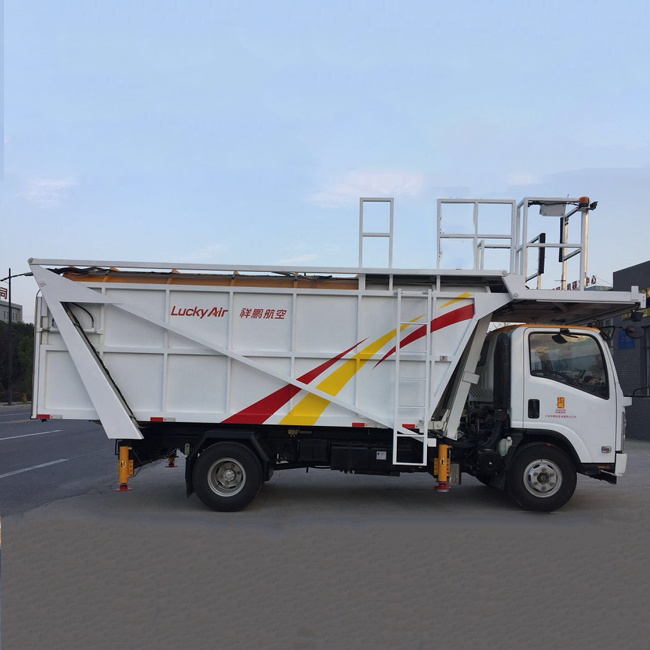

WTJ5060LJC aircraft rubbish truck is refit with Qingling's second-class chassis. The product is equipped with advanced electrical control system, and the platform has two sets of safety devices and height display circuits for docking aircraft. The product is beautiful in appearance, convenient in operation, safe and reliable in use. It can adjust the height error between the passenger ladder platform and the aircraft door. It is suitable for the use of A300, A310, A320, A330, A340, B737, B747, B757, B767, B777 and other models. Dustbin volume 15m3; Rated load of 1 ton, the maximum height of the platform from the ground can be realized 2400-5800mm, the box body with the platform rise and tilt, so that garbage can fall to the bottom, the working platform and the front end of the box hinged connection, and the tie rod will be connected to the rocer arm and the end of the diagonal beam, form a parallelogram mechanism, when the door frame lifting, the box that is around the fixed shaft of the diagonal beam and turn, The platform rotates around the box and is kept parallel to the ground at all times to allow the staff to operate.
Availability:
Product Description

Model: WTJ5060LJC aircraft rubbish truck



Main technical parameters

serial Project Name Specific parameters Part Name Model
1 Total length (mm) 7895 chassis QL1070A5KAY
2 Total width (mm) 2260 engine 4KH1CN5HS
3 Total height (mm) 3500 gearbox MSB-5SM
4 Wheelbase (mm) 3815 Front bridge 3000010-L20PA
5 Wheel base (front/rear) (mm) 1504/1425 Rear axle 2400010-L20PA
6 Front suspension (mm) 1015 tyre 7.00R16 14PR
7 Rear suspension (mm) 1370 Force extractor SDQ51/74LGS-G
8 Approach Angle (°) 24 Hydraulic pump CBN-F50-BFHL
9 Departure Angle (°) 12 Emergency motor pump GP2KW2CC/R-12V
10 Minimum ground clearance (mm) 180 Hand pump PM050e-s
11 Maintenance weight (kg) 5300
12 Total mass (kg) 6930
13 Channel circle outer circle diameter (mm) 18000
14 Maximum speed (km/h) 80
15 Garbage box volume (m³) 15.8
16 Maximum cabin tipping Angle (°) 35
17 Minimum height of working platform (mm) 2400
18 Maximum height of working platform (mm) 5800
