Aircraft Garbage Truck

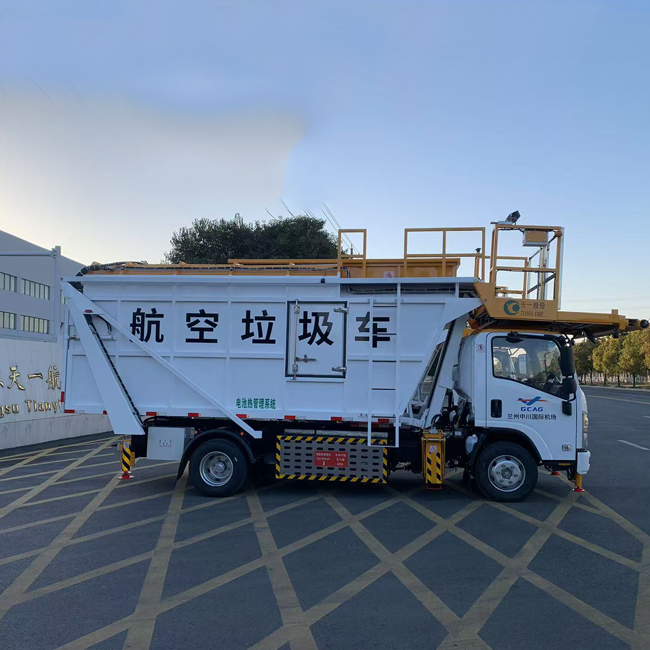

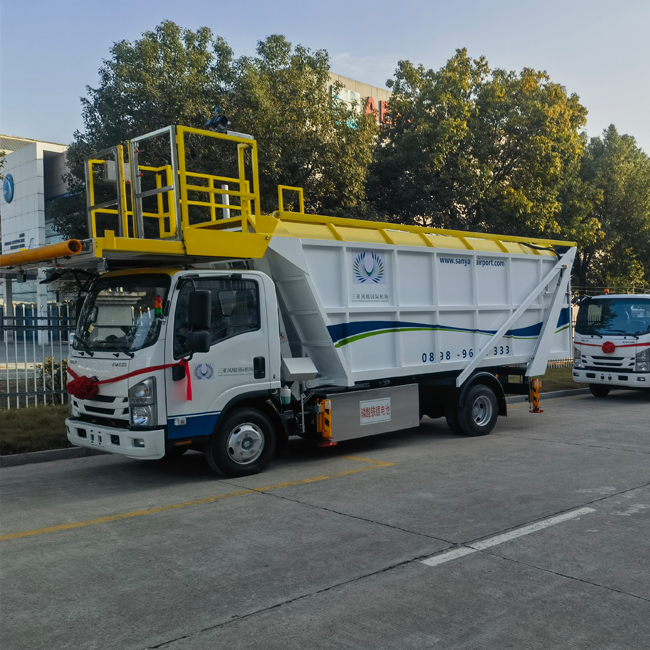

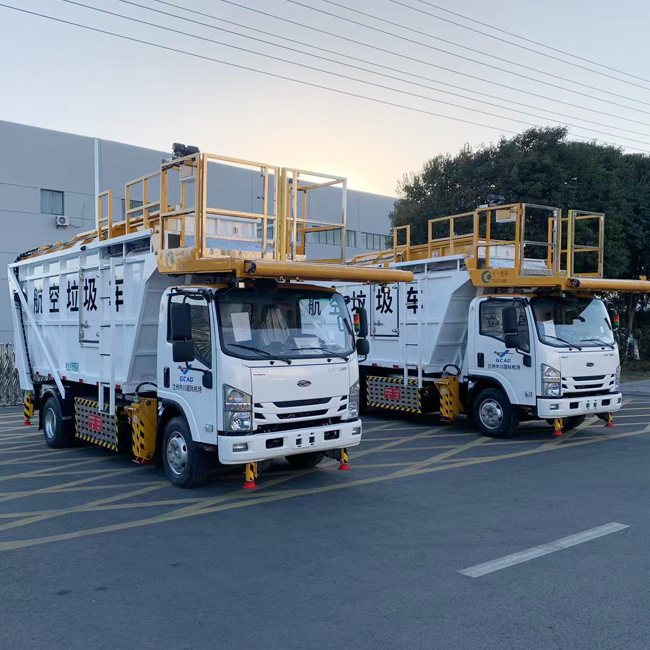

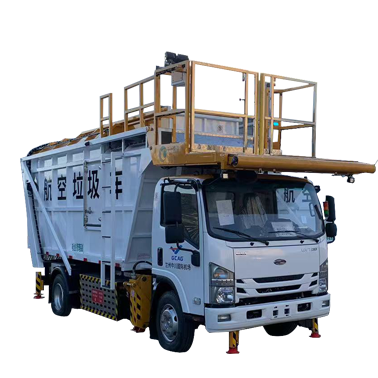

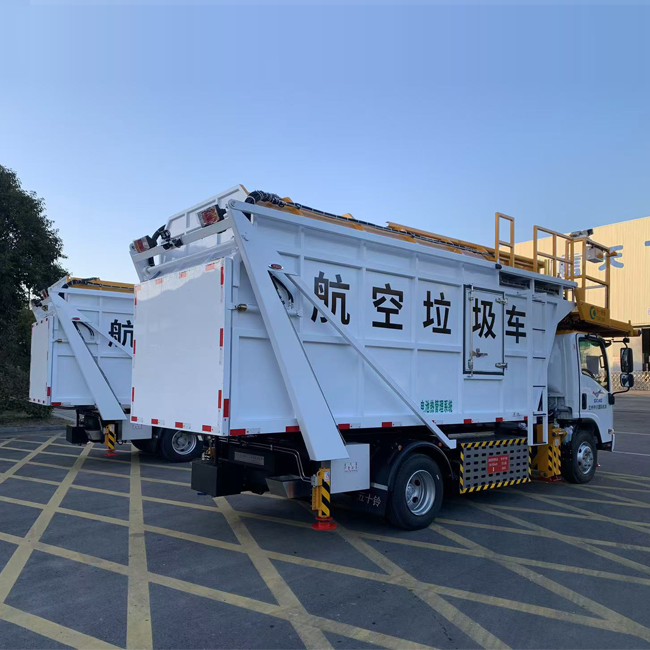

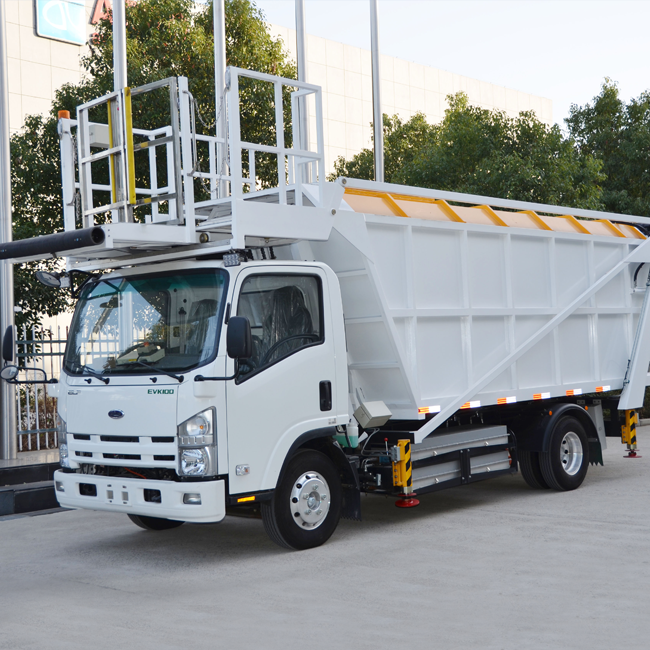

JSTY5060LJCE Aircraft Garbage Truck is designed and manufactured by Tianyi Joint-stock Company. It is composed of Qingling QL1070BEVECDAY chassis modification assembly, box assembly, lifting system, alignment system, hydraulic system, electrical system, etc. It can handle garbage on B737, B747, B777, B787, A320 series, A330, A350 and other types of airliners. It is a special aircraft garbage disposal equipment for airports.
Product Description

Model:JSTY5060LJCE Aircraft Garbage Truck

Main performance indicators:

Serial name parameter name Model number
1 Vehicle size (mm) 7895 * 2340 * 3300 chassis QL1070BEVECHA2Y
2 Lifting height of working platform (mm) 2400 ~ 5800 Chassis vehicle controller VCU02
3 Channel circle outer circle diameter (mm) 16800 Driving motor YTD060W23
4 Minimum ground clearance (mm) 185 Drive motor controller KTZ50X35S
5 Maintenance weight (kg) 6200 Energy storage assembly L173TB2
6 Garbage box volume (m⊃3;) 18 Energy storage unit CB220
7 Allowable garbage weight (kg) 1750 Steering shaft F033
8 Expansion range of expansion platform (mm) 0-800 Drive shaft R048
9 Wheelbase (mm) 3815 tyre 7.00R16 14PR
10 Maximum tilt Angle (°) 35 Motor pump controller HCDMC005VT4
11 Maximum speed Km/h 80 Motor pump assembly YP-132S-4
12 Wheel base front/rear (mm) 1685/1525 Hydraulic pump CBHC-F14.5-ALP
13 Departure Angle (°) 13 Lifting cylinder D90/70-1625
14 Approach Angle (°) 21 Telescopic cylinder D40/30-800
15 Longitudinal passage Angle (°) 16.5 Supporting leg cylinder D80/50-280
16 Total mass (kg) 8150 relay RJ1S-CL
17 Temperature range ° -35-65 Ultrasonic sensor UGT521
18 Rated power of driving motor KW/r/min 60/1850 Electromagnetic directional valve RPE4-103C11/02400E1
19 Battery protection class IP68 Hydraulic control check valve CPDG-06-30-20
20 Assembly voltage V 618.24 Motor pump assembly HCDMC005VT4
21 Total energy stored KWh 106.95 Lifting cylinder D90/70-1625
22 Driving range (km) 290 Telescopic cylinder D40/30-800
23 Type of energy storage device Lithium iron phosphate (Ningde era) Supporting leg cylinder D80/50-280
24 Minimum stable speed Km/h 0.9 Oil pipe and joint /
