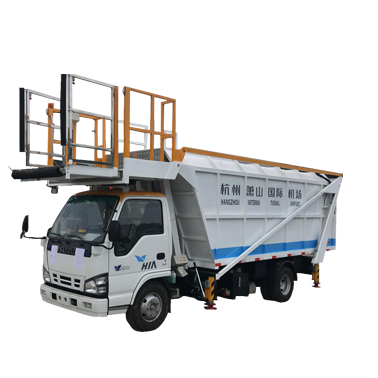

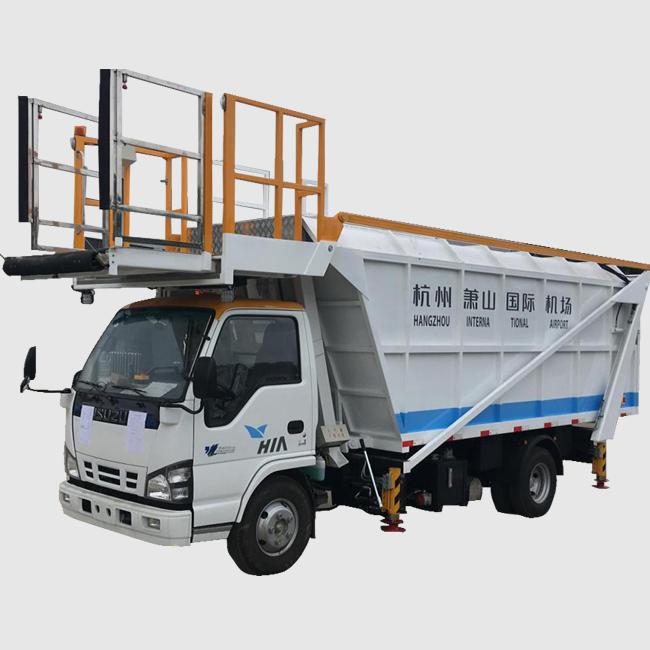

Model: Airport rubbish truck
Product standard
1) GB/T31029-2014 "Aircraft Garbage Receiving Vehicle"
2) AHM910 Basic Requirements for Aviation Ground Equipment
3) AHM913 Basic Safety Requirements for Aviation Ground Equipment
4) AHM915 Standard Control Device
5) CCAR-137-CA-R3 Regulations on the Management of Special Equipment for Civil Airport
6) AP-137-CA-2015-02 Inspection Measures for Special Equipment of Civil Airport (Trial)
7) GB3847-2005 "Exhaust smoke emission Limits and Measurement Methods of Compression-combustion engines and Compression-combustion engines for Vehicles"
8) GB20891-2014 "Emission Limits and Measuring Methods of Diesel Exhaust Pollutants for Non-Road Mobile Machinery (Stage III and IV of China)"
Main technical parameters
| serial | Project Name | Specific parameters | Part Name | Model |
| 1 | Total length (mm) | 7895 | chassis | QL1070A5KAY |
| 2 | Total width (mm) | 2260 | engine | 4KH1CN5HS |
| 3 | Total height (mm) | 3500 | gearbox | MSB-5SM |
| 4 | Wheelbase (mm) | 3815 | Front bridge | 3000010-L20PA |
| 5 | Wheel base (front/rear) (mm) | 1504/1425 | Rear axle | 2400010-L20PA |
| 6 | Front suspension (mm) | 1015 | tyre | 7.00R16 14PR |
| 7 | Rear suspension (mm) | 1370 | Force extractor | SDQ51/74LGS-G |
| 8 | Approach Angle (°) | 24 | Hydraulic pump | CBN-F50-BFHL |
| 9 | Departure Angle (°) | 12 | Emergency motor pump | GP2KW2CC/R-12V |
| 10 | Minimum ground clearance (mm) | 180 | Hand pump | PM050e-s |
| 11 | Maintenance weight (kg) | 5300 | ||
| 12 | Total mass (kg) | 6930 | ||
| 13 | Channel circle outer circle diameter (mm) | 18000 | ||
| 14 | Maximum speed (km/h) | 80 | ||
| 15 | Garbage box volume (m³) | 15.8 | ||
| 16 | Maximum cabin tipping Angle (°) | 35 | ||
| 17 | Minimum height of working platform (mm) | 2400 | ||
| 18 | Maximum height of working platform (mm) | 5800 |
