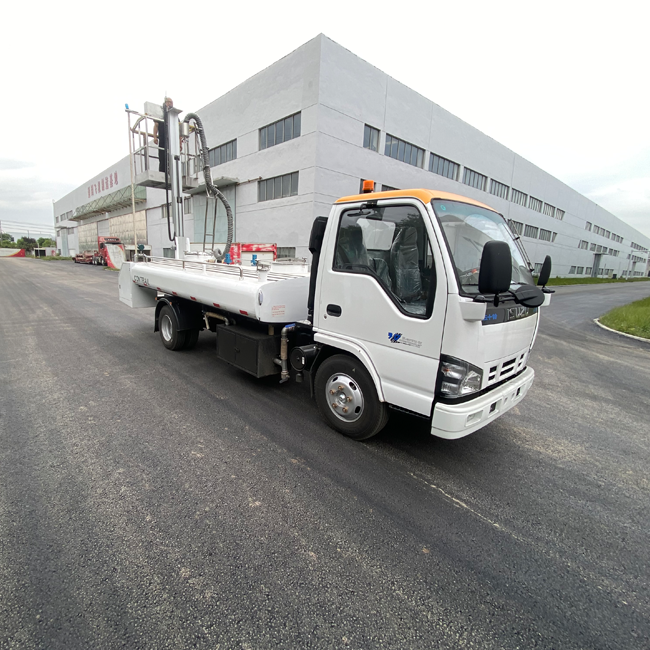

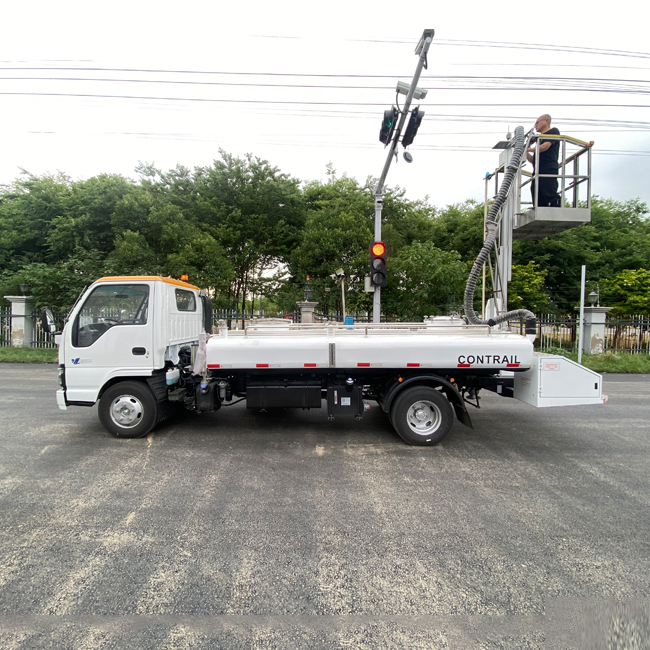

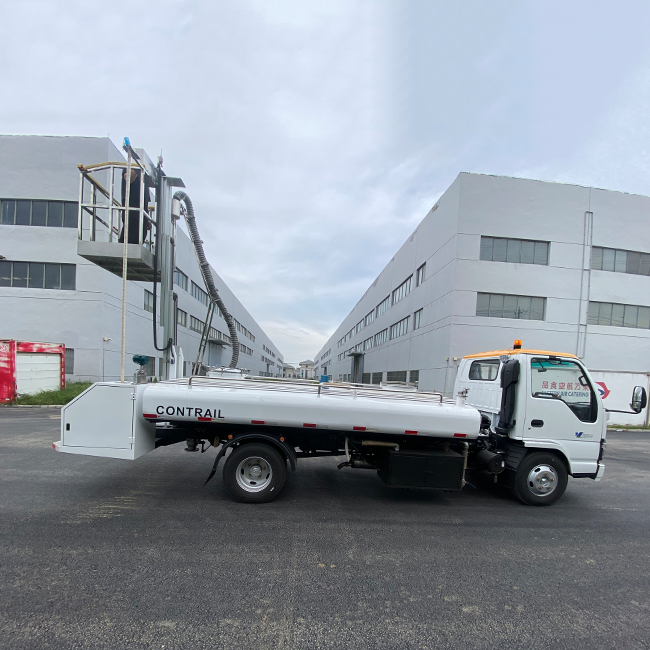

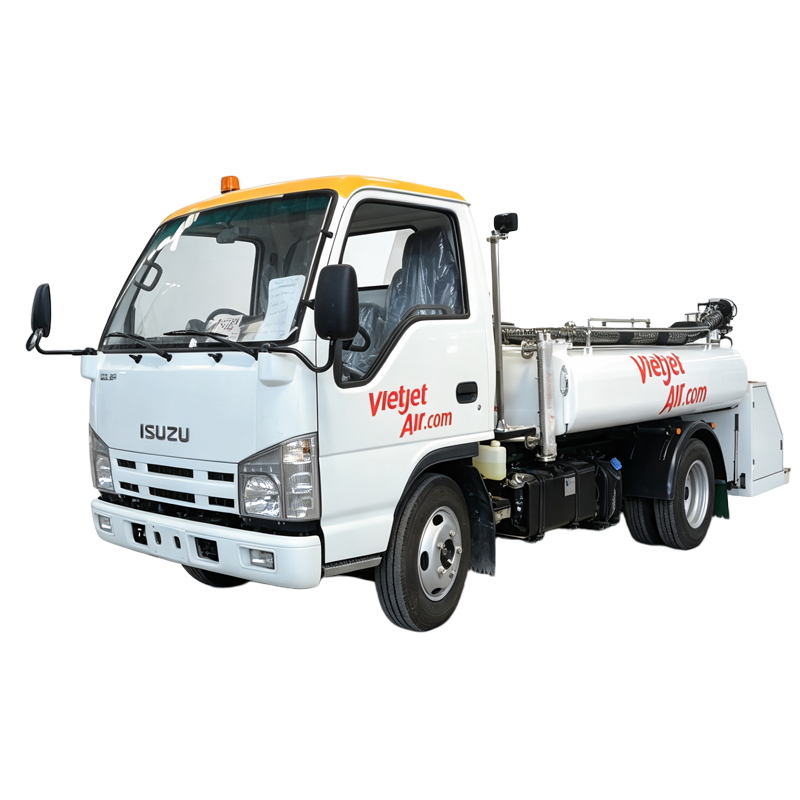

Aircraft Lavatory service truck

JSTY5070GWS Aircraft Lavatory service truck is a new type of aircraft sewage collection and water injection airport special vehicle modified by Qingling chassis. It is designed as a rear lifting work platform, a large capacity cleaning and sewage tank, a hydraulic motor driven vacuum pump suction system (optional) and a hydraulic motor driven stainless steel acid resistant water pump. The vacuum pump suction system can efficiently and conveniently provide suction service for the aircraft sewage tank. The stainless steel pump driven by the hydraulic motor provides cleaning function for the aircraft sewage tank and sewage tank of the sewage truck. The chassis cab of the product is flat head, single row seat, two-door type, and the occupant is 2. The driving type is 4×2, the volume of clean water tank is 1.4m³, the volume of sewage tank is 2.6m³, the volume of empty tank is 0.24m³ (optional), and the water supply flow is 150L/min. Suction sewage flow rate is 600L/min. The product can be widely applied to A300, A310, A318, A319, A320, B707, B727, B737, B747, B757, B767, B777, DC8, 1L-18, 1L-62, MD11, MD80 and other models in addition to Airbus A380 aircraft.
Availability:
Product Description

Model: JSTY5070GWS Aircraft Lavatory service truck


Main technical parameters

serial Project Name Specific parameters Part Name Model
1 Total length (mm) 7190 chassis QL1070A5KAY
2 Total width (mm) 2100 engine 4KH1CN5HS
3 Total height (mm) 2260 gearbox MSB-5SM
4 Wheelbase (mm) 3815 Front bridge 3000010-L20PA
5 Wheel base (front/rear) (mm) 1540/1425 Rear axle 2400010-L20PA
6 Front suspension (mm) 1025 tyre 7.00R16 14PR
7 Rear suspension (mm) 2350 Force extractor SDQ51/74LGS-G
8 Approach Angle (°) 22.5 Hydraulic pump CBN-F50-BFHL
9 Departure Angle (°) 8 Water pump SCB65-20/50
10 Minimum ground clearance (mm) 200 Vacuum pump 2BV2771
11 Maintenance weight (kg) 4060

12 Total mass (kg) 8190

13 Channel circle outer circle diameter (mm) 17000

14 Maximum driving distance (km/h) 80

15 Sewage tank volume (L) 2600

16 Tank clearing volume (L) 1400

17 Water supply flow (L/min) 150

18 Minimum height of working platform (mm) 385

19 Maximum height of working platform (mm) 3760

20 Sewage tank material Stainless steel plate 0Cr18Ni9Ti/4.5

21 Vacuum sewage tank materials Stainless steel plate 0Cr18Ni9Ti/4.5

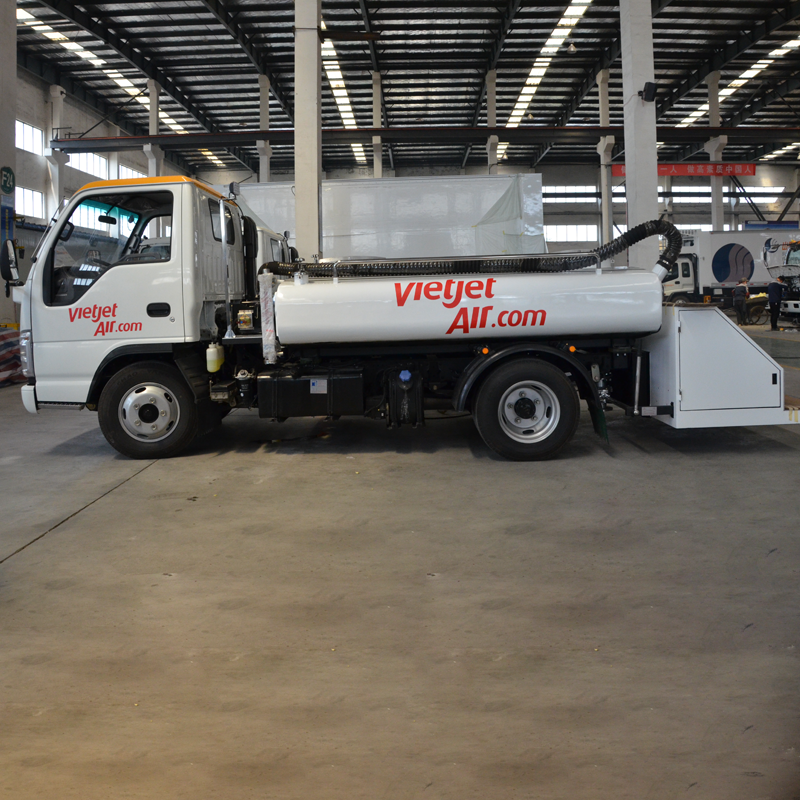

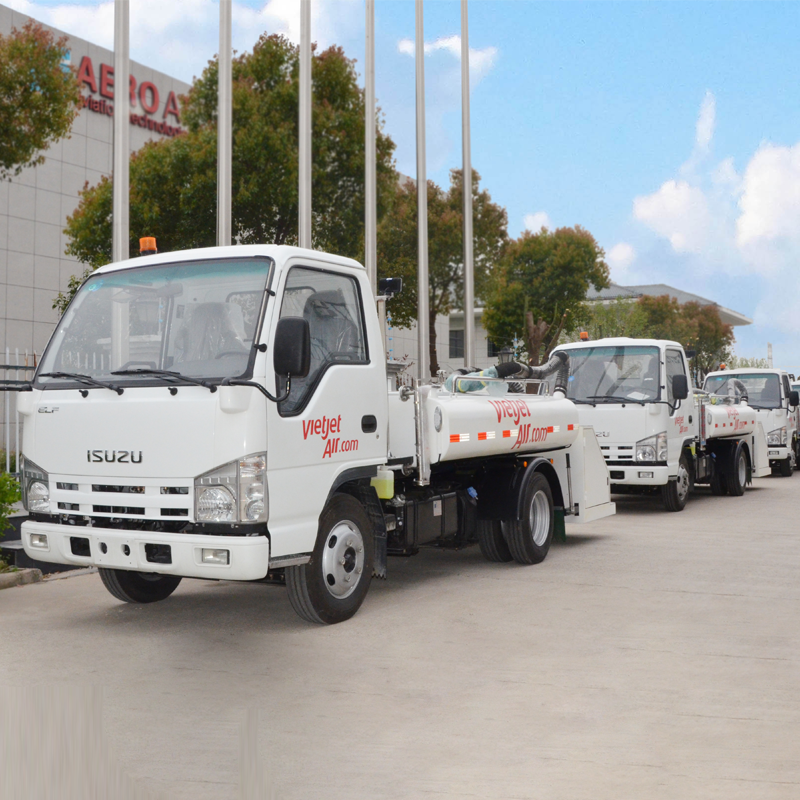

Aircraft Lavatory service truck
