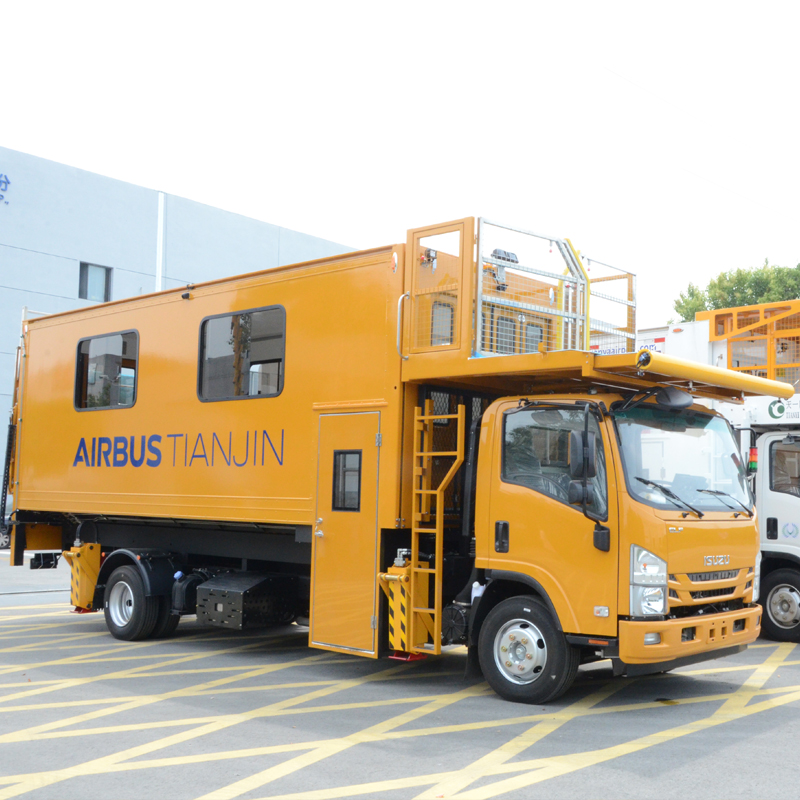

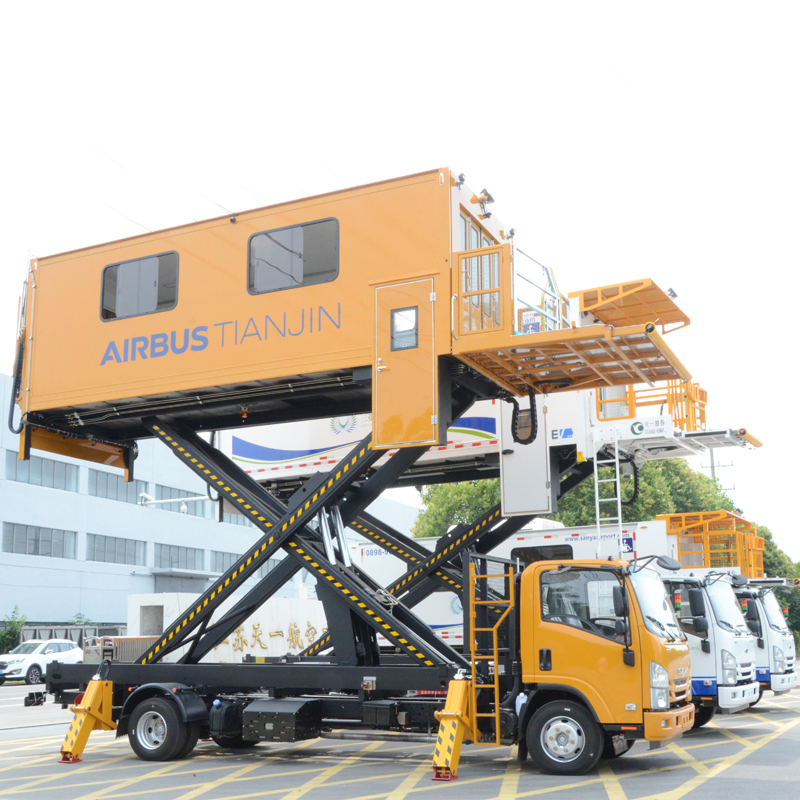

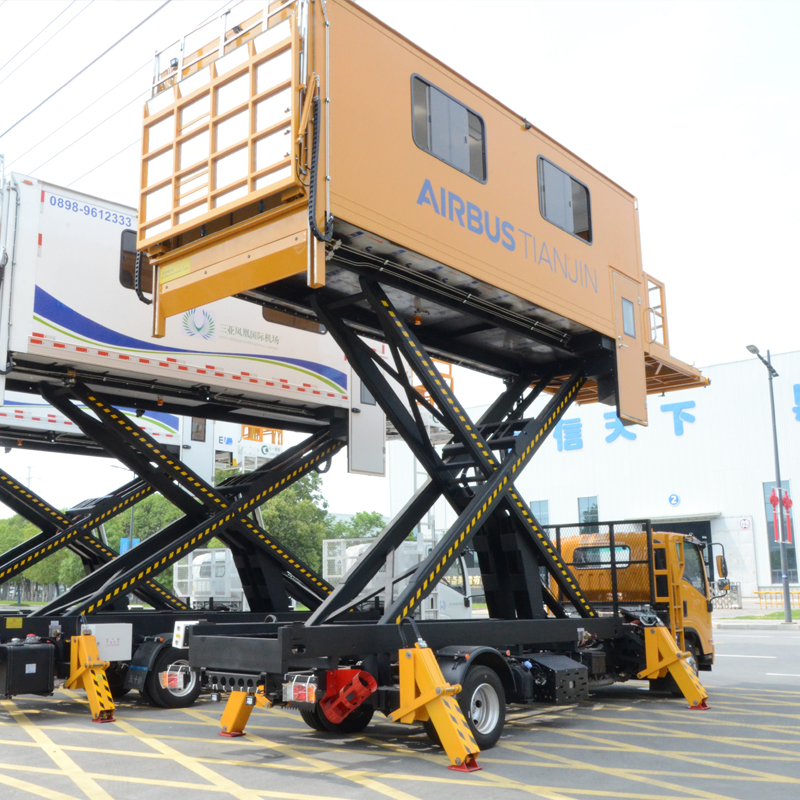

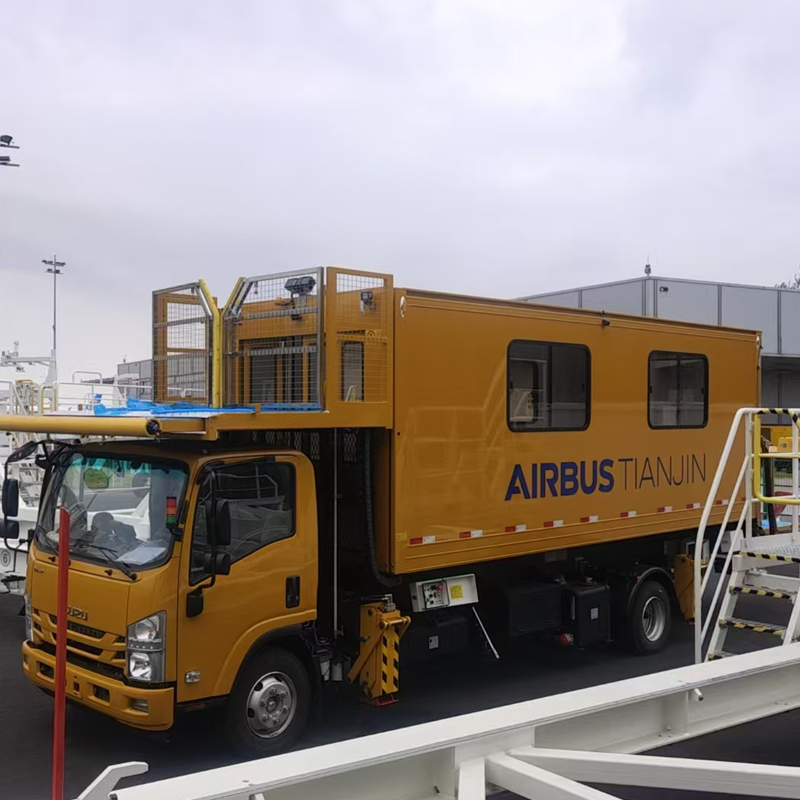

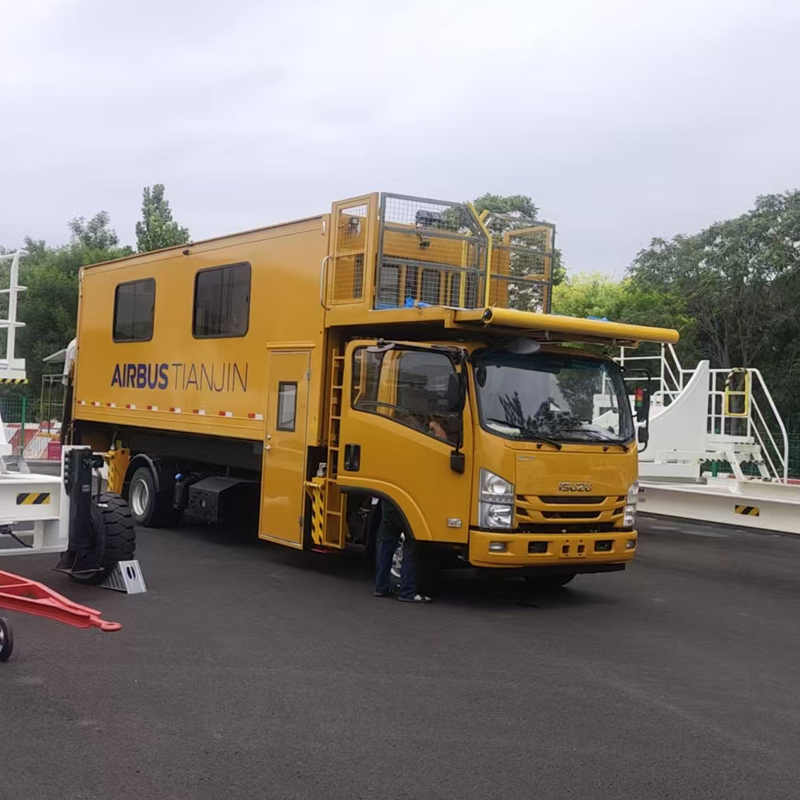

Aircraft PRM vehicles Retrofitted from second class chassis of QL1100PTARY type, WTJ5100JC boarding vehicle for the disabled is advanced in technology, safe and reliable for use with all performances better than similar products retrofitted from domestically produced chassis. The design of the boarding vehicle for the disabled shall be convenient for the disabled to get on or off the airplane, and the vehicle shall at least be suitable for airplanes of B737 series, Airbus 320 series, A330, A340, B757 and B767.
Aircraft PRM vehicles configuration one Main performance index
Engine type: 4HK1-TC51
Platform working height (mm) : 2600 ~ 5800
Body load rating (kg) : 1500
Fixed platform load rating (kg) : 500
Mobile platform load rating (kg) : 300
Adjustment range of the left and right sides of the platform (mm) : 0 to 600
Platform scaling adjustment range (mm) : 0 to 500
Fixed platform dimensions (L × W) (mm) : 1200×2290
Mobile platform dimensions (length × width) (mm) : 800×1300
Quality (kg) : 11160
Overall dimensions (length × width × height) (mm) : 8950×2430×3880
Chassis model: QL1100PTARY
Body size (length × width × height) (mm) : 6320×2200×2150
Transmission model: MLD-6Q
