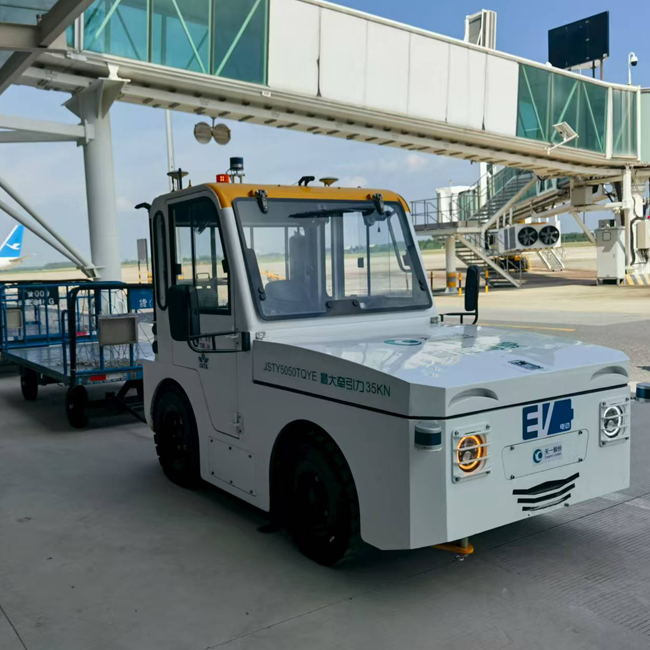

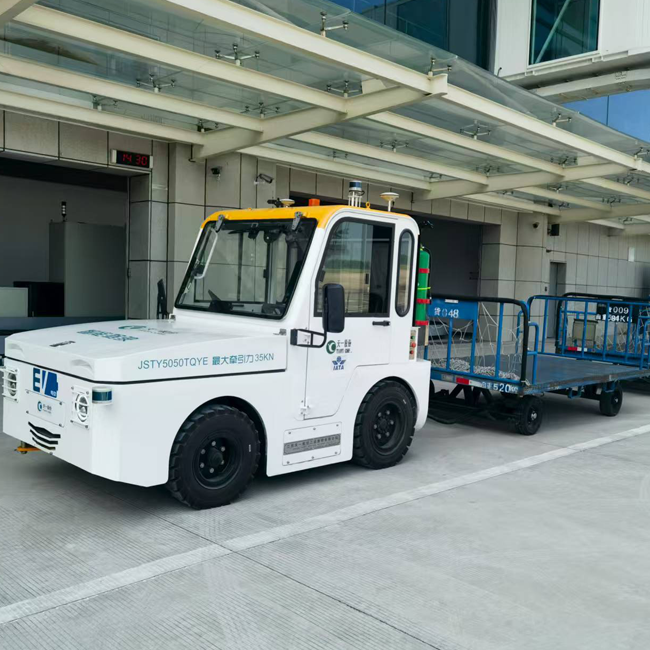

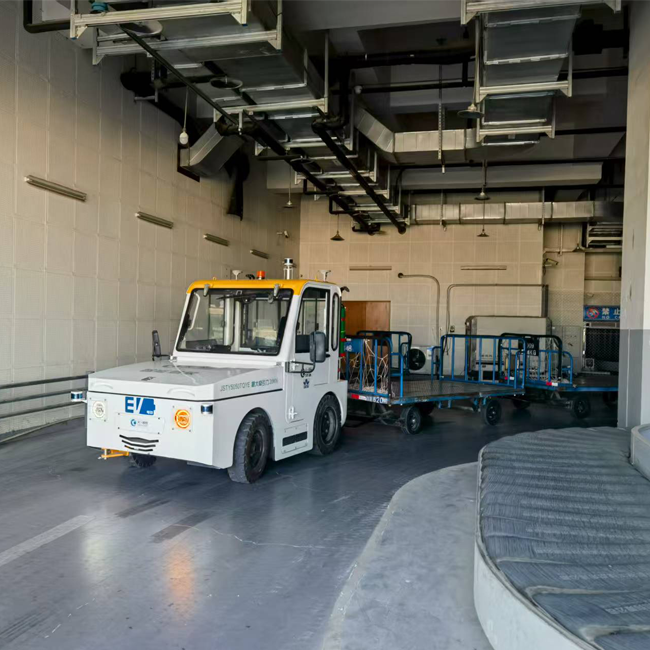

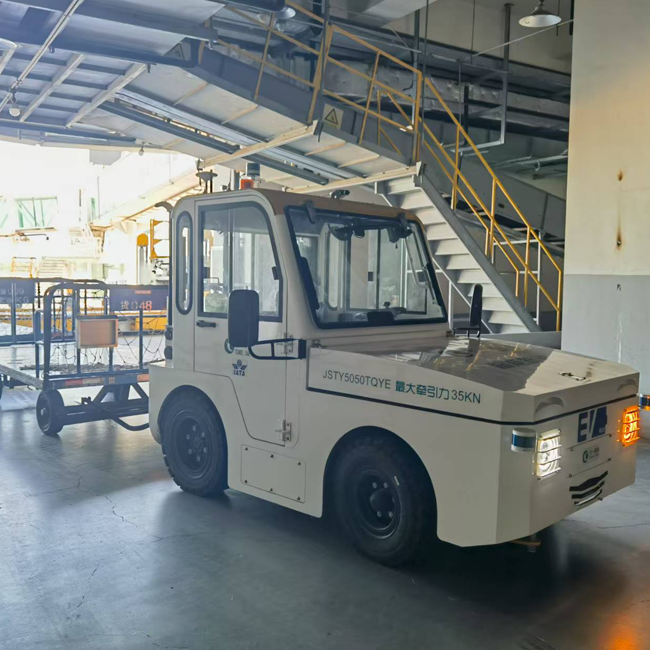

Airplane Baggage Tractor

JSTY5050TQYE new energy baggage tractor is a special mobile equipment for the airport ground to load and unload passengers' baggage, such as vehicles, parcels or postal parcels. It is mainly composed of chassis, frame, chassis frame, cab, hydraulic system, motor assembly, power battery, service brake system, electrical system, front and rear axle and other parts, with perfect driving, transmission, steering, braking, lighting and electrical control system, the product is beautiful in appearance, wide in application, can meet the current use of all domestic airports.
Availability:
Inquire

Product Description

Model：Airplane baggage tractor


Vehicle parameter table

drive
motor		 Type Permanent magnet synchronous AC motor Driving motor controller Rated voltage    V 309
Rated power       KW 45 Overcurrent protection A 350
Rated voltage        V 309 Waterproofing class IP68
Rated current (1h operating system) A 135 Power cell Class type Lithium iron phosphate battery
Protection class IP68 Protection class IP68
Insulation class H Rated voltage   V 309.12
Energy stored  KWh 70.48
Total capacity  Ah 228
Total length  mm 3130 Total width    mm 1440
Total height  mm 1450 wheelbase   mm 1610
Angle of approach（°） 20 Departure Angle（°） 21
Front wheel pitch  mm 1270 Rear wheel pitch   mm 1215
Front overhang  mm 780 Rear overhang  mm 740
Quality of maintenance kg 3810 traction
Minimum ground clearance  mm 150 Minimum turning radius   mm 2950
Maximum speed in no load    km/h 35 self-weight  kg 3810
Maximum traction mass    kN 39000 Maximum traction mass   kg 39000
Rated traction  kN 38600 Range on a single charge  km 360
Maximum driving speed (towing 25 tons of cargo)km/h 20 Maximum climbing capacity 40.5%
Battery energy density  Wh/kg 160.26wh/kg Ningde Time battery waterproof grade IP68


Vehicle main configuration list

Serial name Model number
1 Driving motor HCDM045ZC1
2 Drive motor controller HC30LKPIC-K21-01-TY
4 Energy storage assembly L228C01
5 Energy storage unit CB230
6 frame JSTY5050TQYE-0100000
7 Steering shaft JSTY5050TQYE-0200000A
8 Drive shaft JSTY5050TQYE-0300000A
9 Front tire 7.00-12
10 Rear tyre 28×9-15
11 Solenoid valve TY.603.017
12 Steering gear TY.603.021


Previous:
Next:

Related Products

Electric Aircraft Tow Tractor
Electric Aircraft Tow Tractor
Baggage Conveyor Belt Loader
Baggage Conveyor Belt Loader
Civil aviation Catering truck
Civil aviation Catering truck
Manual Mobile Aircraft Towable Passenger Step
Manual Mobile Aircraft Towable Passenger Step
JSTY5030ZJB Passenger Boarding Bridge
JSTY5030ZJB Passenger Boarding Bridge
Electric Catering Truck
Electric Catering Truck
Airplane Passenger Stairs
Airplane Passenger Stairs
Aircraft Ground Power Unit
Aircraft Ground Power Unit
TY-ASU290 Towed Aircraft Ground Air Start Unit
TY-ASU290 Towed Aircraft Ground Air Start Unit
Aircraft Air Start Unit
Aircraft Air Start Unit
Electric luggage tractor
Electric luggage tractor
Electric baggage trolley (Low Voltage)
Electric baggage trolley (Low Voltage)

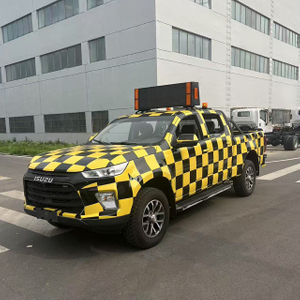

Guide vehicles
