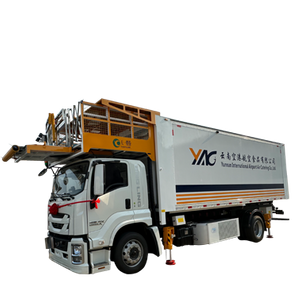

Electric Catering Truck

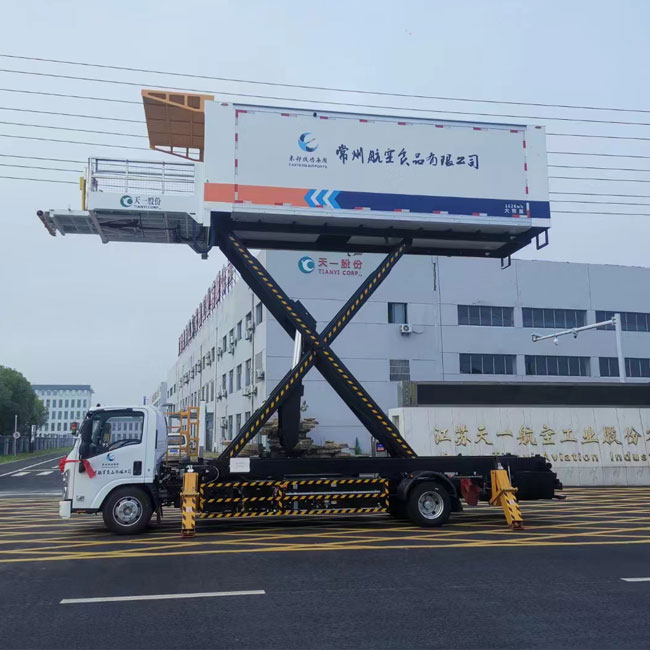

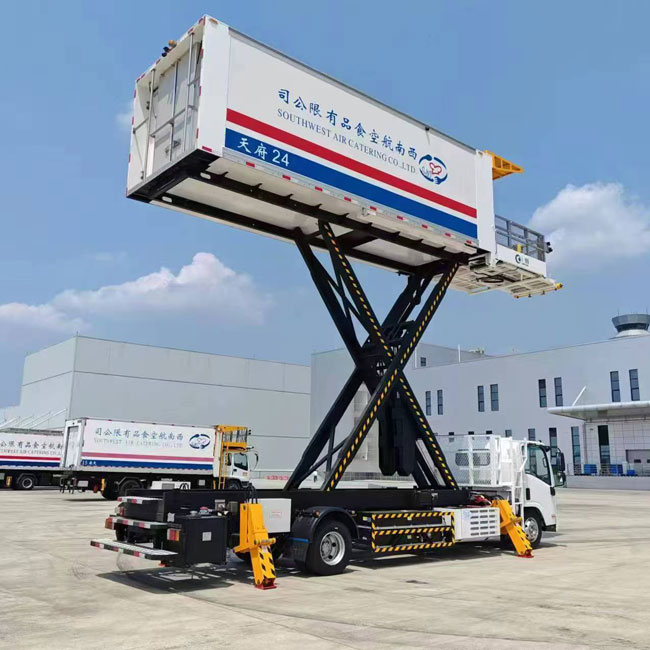

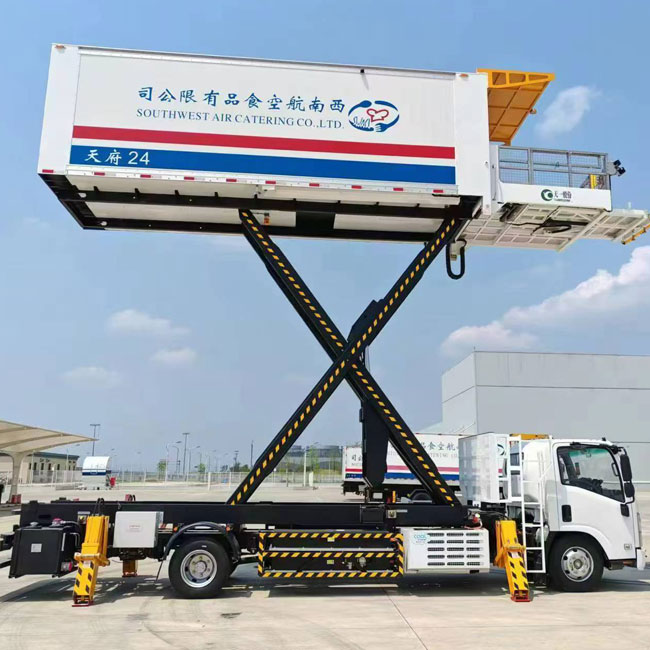

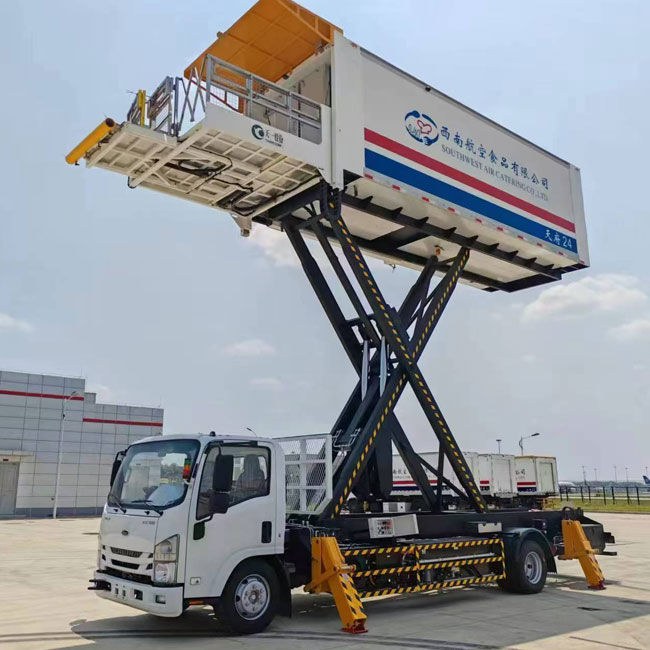

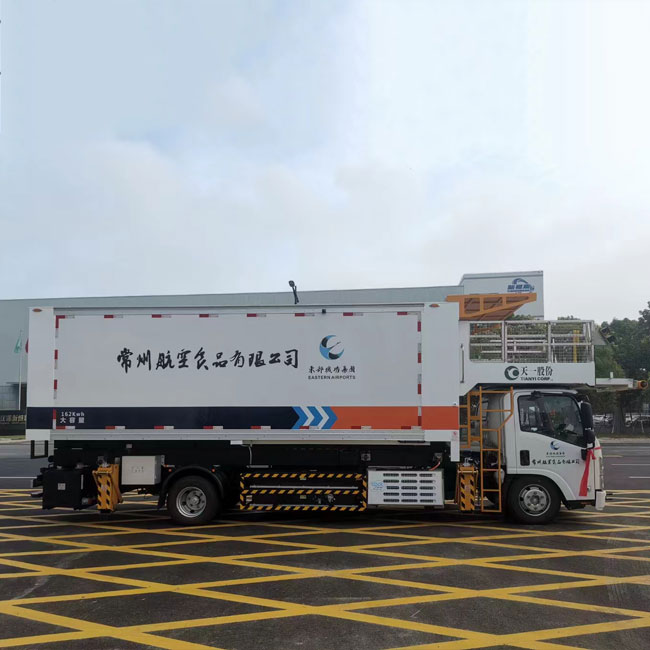

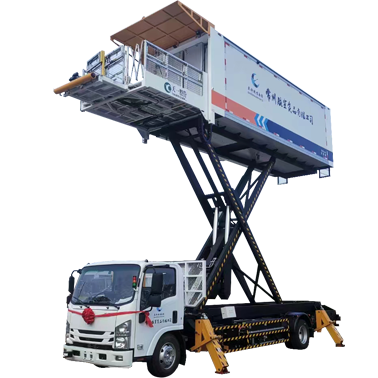

JSTY5100JSPE Electric Catering truck is mainly composed of QL1101BEVEMMAY type II electric chassis, scissor type hydraulic lifting mechanism, lifting front platform, carriage, front and rear sliding doors, retractable stabilizing foot assembly and refrigerating unit produced by Qingling Automobile Co., LTD.
Availability:
Product Description

Model:JSTY5100JSPE Electric Catering truck


Main assembly structure and main technical parameters


Type Permanent magnet synchronous motor
species Lithium iron phosphate
Drive motor Rated power/speed kw/r/min 75/2000 Energy storage device type Energy type
Rated current A 200 Assembly system 1 and 192 strings
Insulation class H
Protection class IP67
Rated voltage VAC 220 Assembly voltage V 618.24
drive Input voltage VDC 540 Total energy stored kWh 106.96
electric Rated output voltage VAC 220 Unit nominal voltage V 3.22
Machine control device Control mode Torque control Unit rated capacity Ah 173
Cab type Flat head Number of passengers 3
Total length mm 9940 Total width mm 2300
Total height mm 3700 wheelbase mm 5200
Wheel base (front/rear) mm 1680/ 1650 Maximum speed km/h 80
Quality of maintenance kg 10600 Total mass kg 14300
Minimum ground clearancemm 180 Channel circle outer circle diameter mm 20000
Working height of platform mm 2120~ 5820 Rated carriage load kg 3500
Front platform rated bearing capacity kg 2200 Forward platform moving part rated bearing capacity kg 600
Rated bearing capacity of fixed part of front platform kg 1600 Left and right adjustment range of front platform moving part mm 0~500
Dimension of fixed part of front platform (length × width) mm 1900× 2085 Moving part of front platform (telescopic adjustment range) mm 0~600
Dimension of moving part of front platform (length × width)
mm
820×1200 Internal dimensions of car body (length × width × height) mm 6240×2150×2 200
External dimensions of car body (length × width × height) mm 7100×23 00×24 20 Driving range  km 170
Temperature range ℃ -35~65 —— ——


List of main assembly of sample car

Serial name Type number
1
chassis
JSTY5180JSPE-0100000
2
Vehicle controller
HCDN67VCU-41B
3
Five in one integrated controller
HC60LTPIC -F12BG
4
Driving motor
TZ380XSM12
5
Oil pump motor
HCDM030HP2
6
Oil pump motor controller
HCDMC055VT7
7
Energy storage assembly
228Ah618.24V1P192SH
8
Energy storage unit
CB230
9
Steering shaft
F063
10
Drive shaft
R130
11
Front/rear tires
10R22.516PR
12
Hydraulic pump
CBHZ-F25-ALФL
13
Lift cylinder
D160/145-1070
14
Front/rear leg cylinder
D90/63-290
15
Moving platform cylinder
D40/30-700
16
Telescopic platform cylinder
D40/30-600
17
Electric emergency pump
800601632
18
Hand pump
PMO 50-s
