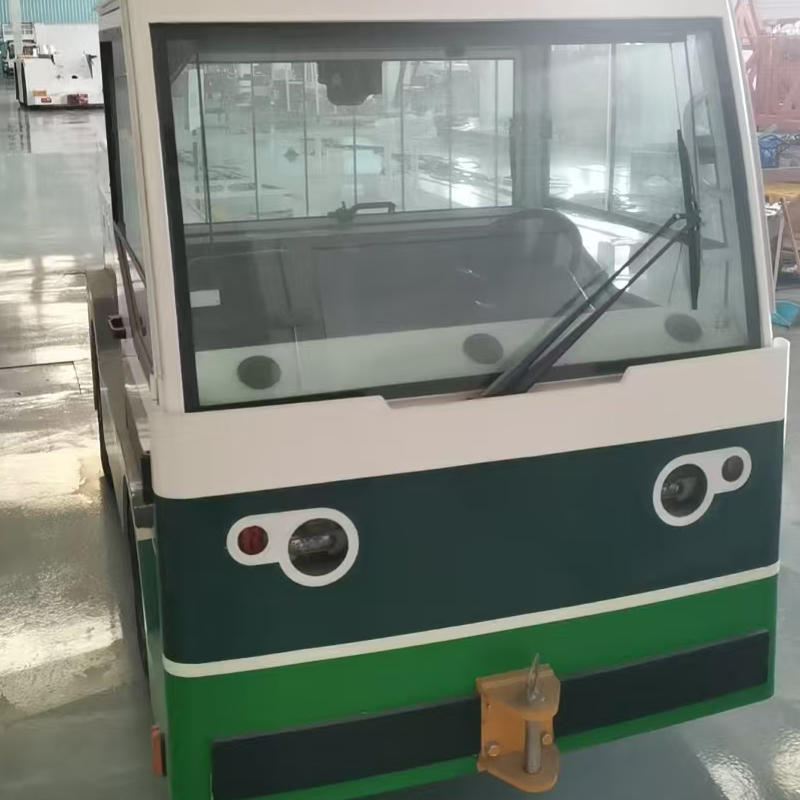

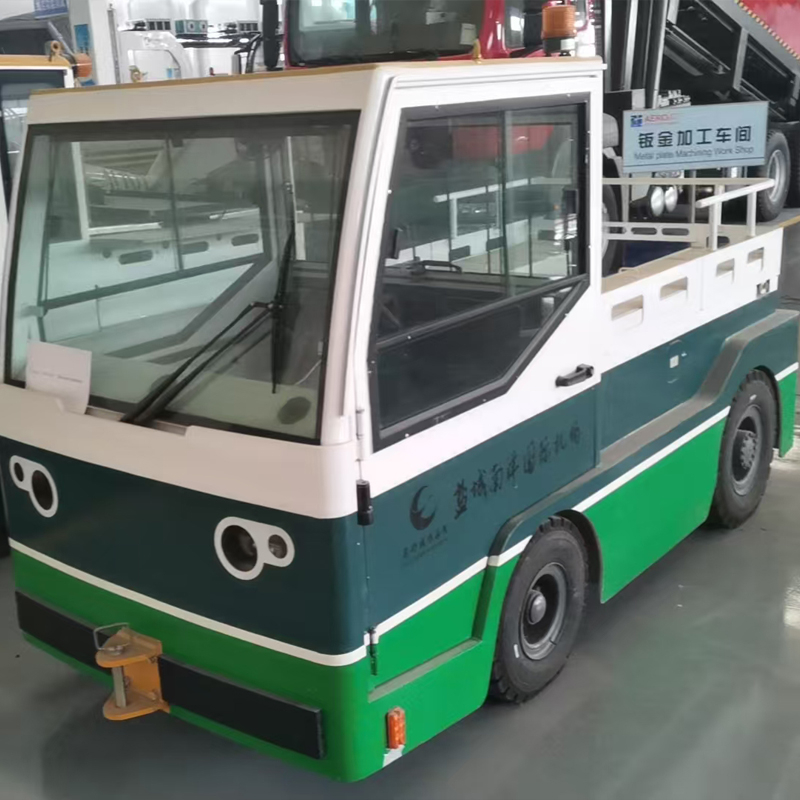

Electric luggage tractor

TYLTD300 electric luggage tractor is a new generation of environmentally friendly electric tractor developed by our company following the zero-emission design concept and absorbing advanced electric tractor technology at home and abroad. The key components are imported with original components and independent intellectual property rights. The performance of this product is leading in China and has basically reached the advanced level of international counterparts.
The series tractor has unique design, excellent performance, wide vision, high efficiency and safety, energy saving and environmental protection, long driving range, fast replacement battery, more convenient control, quiet, stable, comfortable, stable and reliable performance, easy maintenance and other advantages, widely used in airports, national defense, railway, postal, manufacturing, medicine, logistics and other fields.
The TYLTD300 electric baggage tractor mainly checks passenger luggage onto the aircraft. The whole frame is steel structure, the electric control system uses the American CURTIS (CURTIS) AC controller, the drive system uses the Italian PMP (PMP) efficient wet brake drive integrated bridge, and the German Siammuller environmental 50V AC motor, the power reaches 28.7KW, the drive is strong, and the maximum speed of no-load is 25km/h.
Availability:
Product Description

The TYLTD300 electric baggage tractor mainly checks passenger luggage onto the aircraft. The whole frame is steel structure, the electric control system uses the American CURTIS (CURTIS) AC controller, the drive system uses the Italian PMP (PMP) efficient wet brake drive integrated bridge, and the German Siammuller environmental 50V AC motor, the power reaches 28.7KW, the drive is strong, and the maximum speed of no-load is 25km/h.


Test basis:

GB 7258-2017 "Technical Conditions for Vehicle Operation Safety", AHM913 "Basic Safety of Aviation Ground Equipment", GB/T 18849-2011 "Motor Industrial Vehicle brake Performance and Part strength", MH/T6048-2008 "Baggage tractor", AP-137-CA-2015-20R1 "Electric Aircraft ground service equipment General technical requirements"



Car body structure:

Overall steel structure, streamline shape, beautiful appearance, generous, suitable for traction, push operation.

The steering wheel with adjustable front and rear Angle, the seat can be adjusted up, down, front and back, and the operator can choose the best driving position.



Total length  mm 3125 Total width    mm 1400
Total height  mm 2060 wheelbase   mm 1950
Maintenance weight    kg 4100 Front axle bearing mass kg 1900
Rear axle bearing mass kg 2450 Maximum travel speed (no load/load) km/h 25/11
Maximum hook tractive force kN 29 Rated hook traction kN 12
Rated towing weight    kg 30000 Climb (no load) % 35
