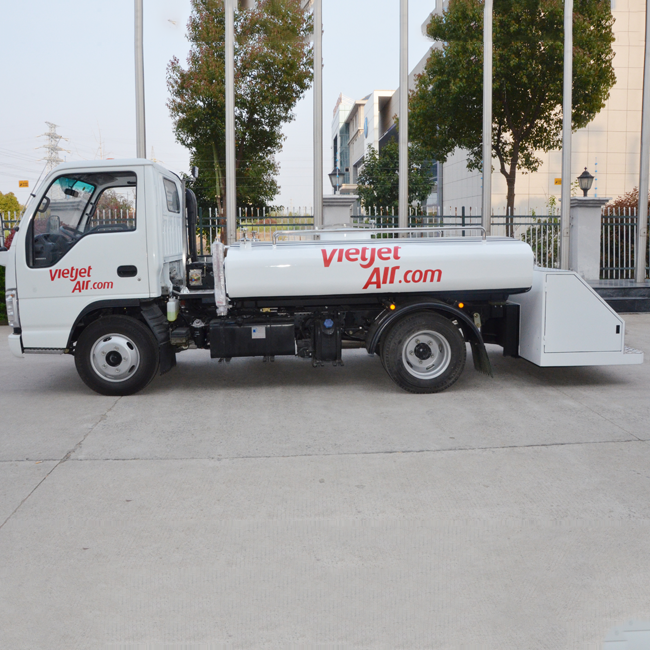

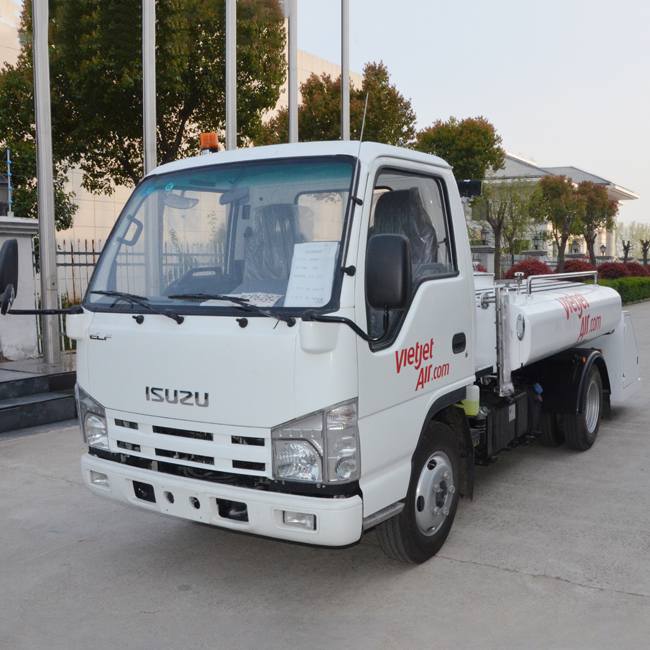

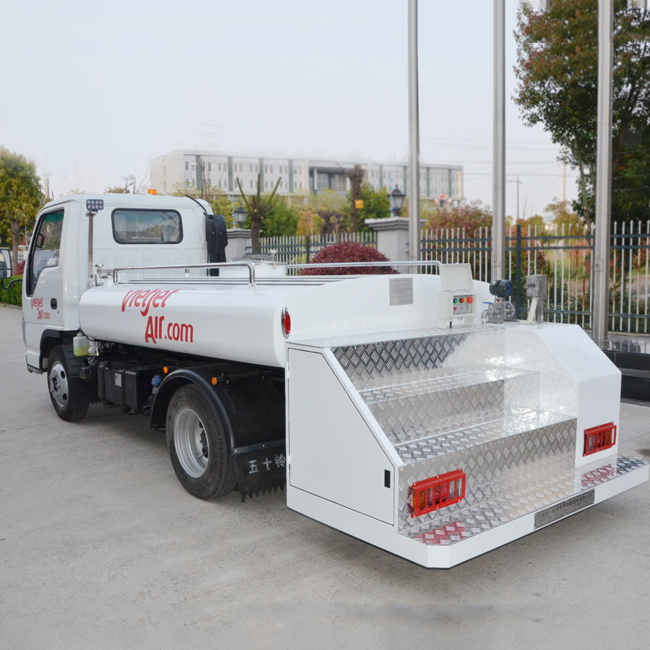

Water Service Truck(Diesel)

JSTY5070GQS Water Service Truck(Diesel) is composed of Qingling QL11009KARY type II chassis modification assembly, clean water box assembly, lifting platform assembly, hydraulic system, electrical system, etc.

The Water Service Truck(Diesel) has four main parameters

Engine type: 4HKI-TCG40

Tank volume (L) : 4000

Water supply flow (L/min) : ≥150

Water supply pressure (MPa) : 0.345

Quality (kg) : 4550

Overall dimensions (L × W × H) (mm) : 7315x2200x2360

Maximum speed (km/h) : 80

Other features: Optional lifting platform

Chassis model: QL11009KARY

Working platform lifting height (mm) : 400-3000

Water tank material/thickness (mm) : S31603/4.5mm

Channel circle diameter (mm) : 15600

Engine emissions: exhaust pollutants meet GB 17691-2005 stage IV limit requirements, exhaust smoke meet GB 3847-2005 requirements
