Airport Ambulift(Diesel)

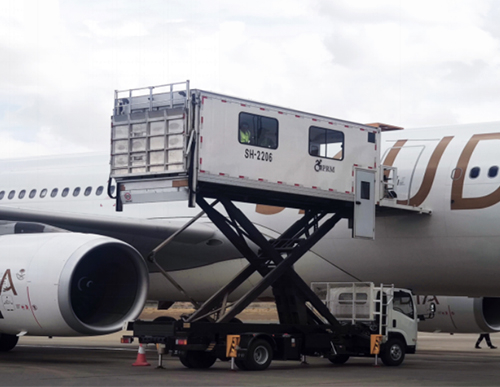

WTJ5040JCR ambulift(Diesel) is suitable for all types of aircraft door height between 2400 ~ 5800mm, and for passengers with mobility inconvenience boarding car, off the plane service. The truck also has optional automatic Gearbox

Availability:
Product Description

WTJ5040JCR ambulift(Diesel) is suitable for all types of aircraft door height between 2400 ~ 5800mm, and for passengers with mobility inconvenience boarding car, off the plane service. The truck also has optional automatic Gearbox


apply to:A300、 A319、 A320、 A321、 A340、 B737、 B747、 B757、 B767、 B777, C919 、 etc


Technical Specifications:

Engine model :4HK1-TC51

Gearbox model:MLD-6Q   /   Allison2500

Chassis models:QL1070A5PAY

Engine emission:National Ⅴ  Emissions

Working height of platform(mm):2400~5800

Maximum load kg:1000

Curb weight kg: 7200

Overall dimensions (L × W × H) (mm):6920 x 2410 x 3750

External dimensions(L × W × H) (mm):4380 x 2280 x 2258

Rear lifting platform height mm: 0~1400

Additional Options : Available upon request
