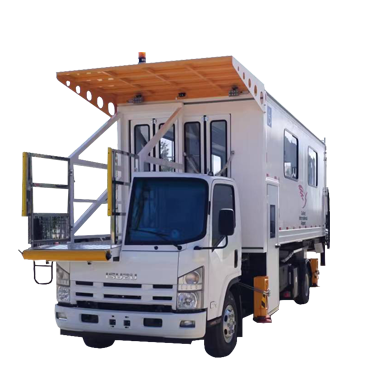

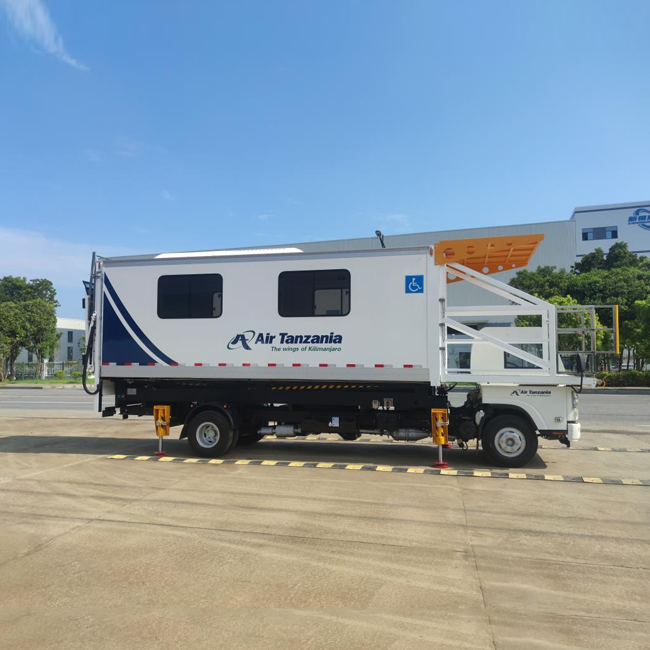

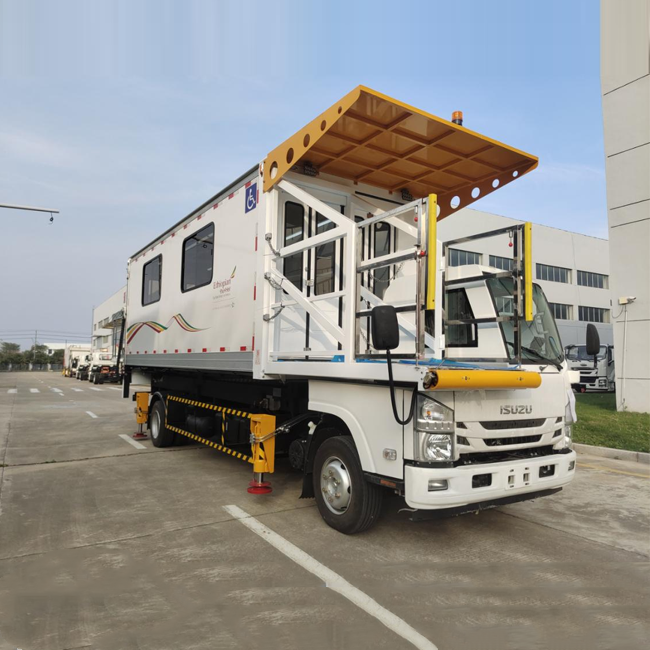

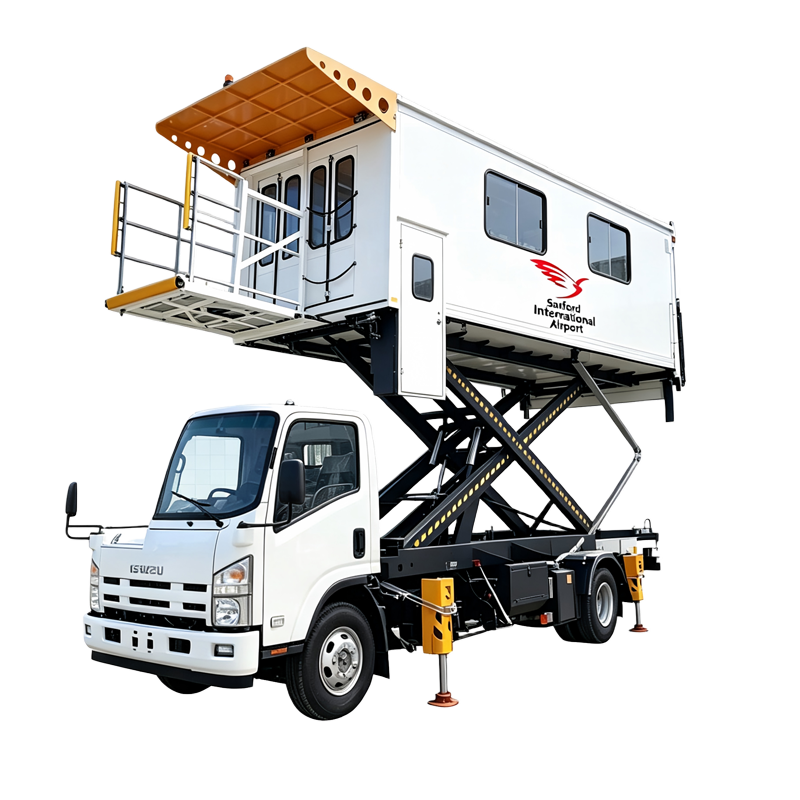

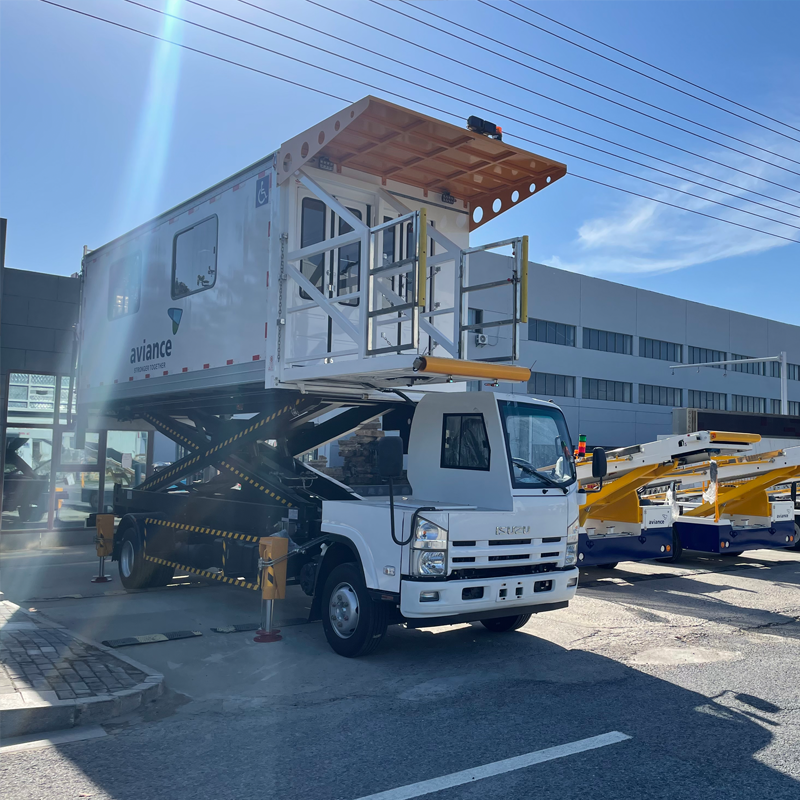

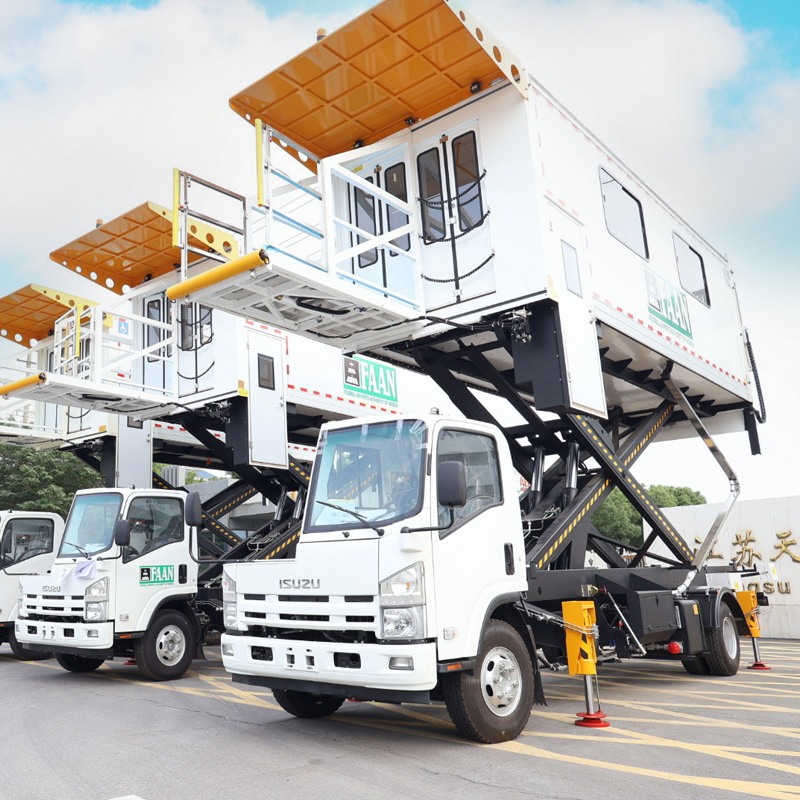

Airport Ambulift (Diesel Semi-drive)

WTJ5100JCR Airport ambulift (Diesel semi-driver) is suitable for all types of aircraft with door height between 1400 and 5800㎜, and serves for passengers with mobility problems to board and disemboard the plane. Technical specification Overall dimensions (length × width × height) : 9540 mm×2460...
Availability:
Product Description

WTJ5100JCR Airport ambulift (Diesel semi-driver) is suitable for all types of aircraft with door height between 1400 and 5800㎜, and serves for passengers with mobility problems to board and disemboard the plane.


Technical specification
Overall dimensions (length × width × height) : 9540 mm×2460 mm×3770 mm
Interior dimensions (length × width × height) : 6350 mm×2200 mm×2100 mm
Telescoping distance: 600 mm
Front platform height: 1400 mm - 5800mm,
Body lifting height from floor: 1420-5800mm
Height of rear platform from ground: 0mm to 1420mm
Wheelbase: 5200 mm
Approach Angle: 14°
Departure Angle: 14°
Channel circle diameter: 20500mm
Vehicle weight: 11250kg
Maximum load: 2500kg
Maximum load of front platform: 1200kg
Maximum load on rear platform: 500kg
Allowable working wind speed: Level 8
Maximum speed: 75 km/h
Approaching aircraft speed ≤3 km/h
Maximum working pressure: 16 Mpa
