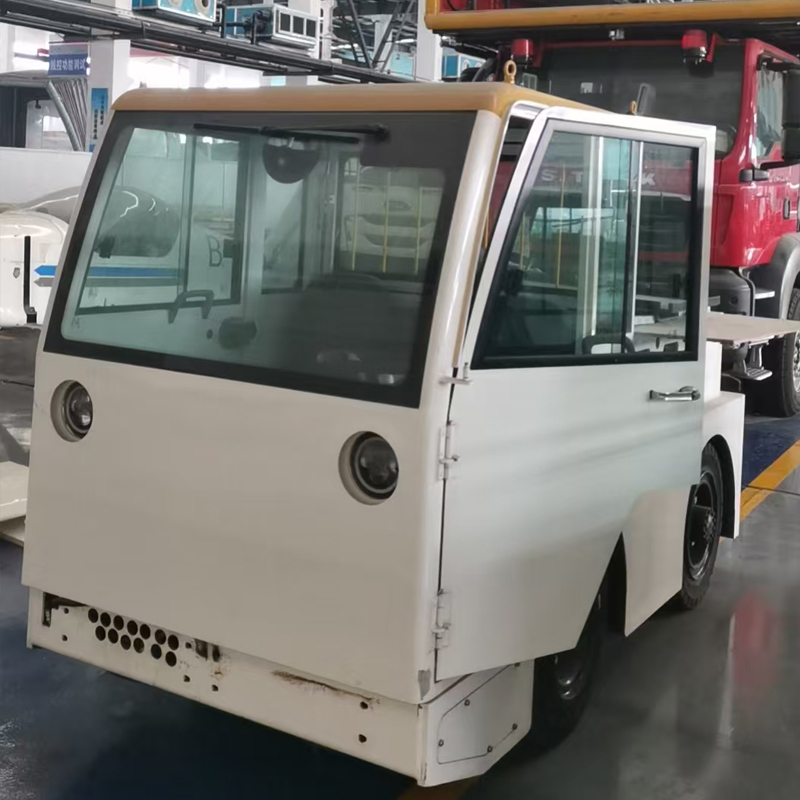

Electric baggage trolley (Low Voltage)

SHLLTD300 Baggage Tractor (electric) is a vehicle developed by Shanghai Sihua Lu Aviation Technology Development Co., Ltd. for towing baggage (cargo), the prototype vehicle uses 3DF 160LbR-6 drive motor produced by ABM Company, the drive type is rear-drive, and the brake type is disc brake. The whole vehicle is arranged as a closed cab, with 2 passengers, maximum speed of 30km/h, maximum traction force of 30kN, and rated traction weight of 30,000kg.
The ambient temperature is (16~18)℃, wind speed (1.2~1.4)m/s, relative humidity (55%~68%)RH.
Availability:
Product Description

SHLLTD300 Baggage Tractor (electric) is a vehicle developed by Shanghai Sihua Lu Aviation Technology Development Co., Ltd. for towing baggage (cargo), the prototype vehicle uses 3DF 160LbR-6 drive motor produced by ABM Company, the drive type is rear-drive, and the brake type is disc brake. The whole vehicle is arranged as a closed cab, with 2 passengers, maximum speed of 30km/h, maximum traction force of 30kN, and rated traction weight of 30,000kg.

The ambient temperature is (16~18)℃, wind speed (1.2~1.4)m/s, relative humidity (55%~68%)RH.


Drive motor Type Alternating current motor Controller accumulator pool Rated voltage V 48~80
Rated power kW 26 Overcurrent protection A 550
Rated voltage V 48 Speed regulation mode Stepless speed regulation
Insulation class F Rated voltage V 80
Protection class IP55 Total capacity Ah 840
Rated current (1h operating system)      A 210 Type Lithium iron phosphate
