Diesel Catering truck

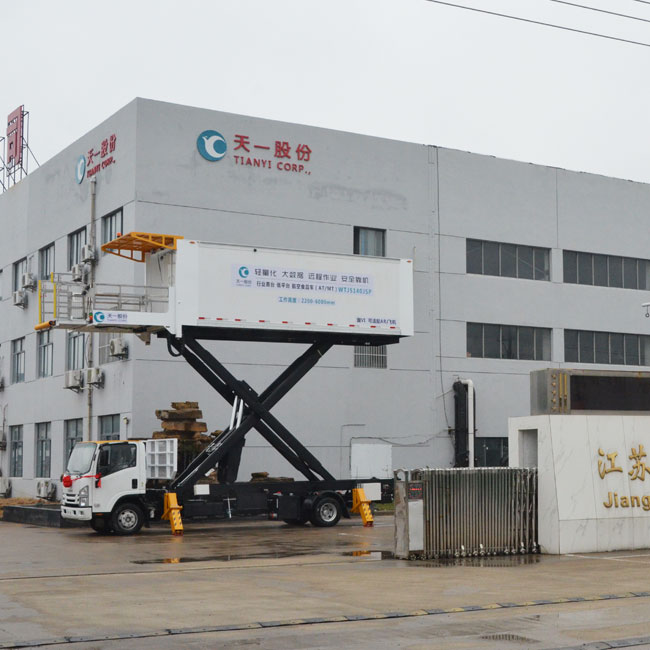

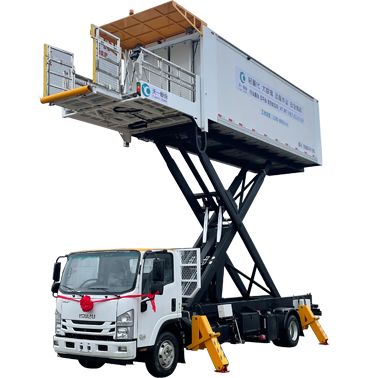

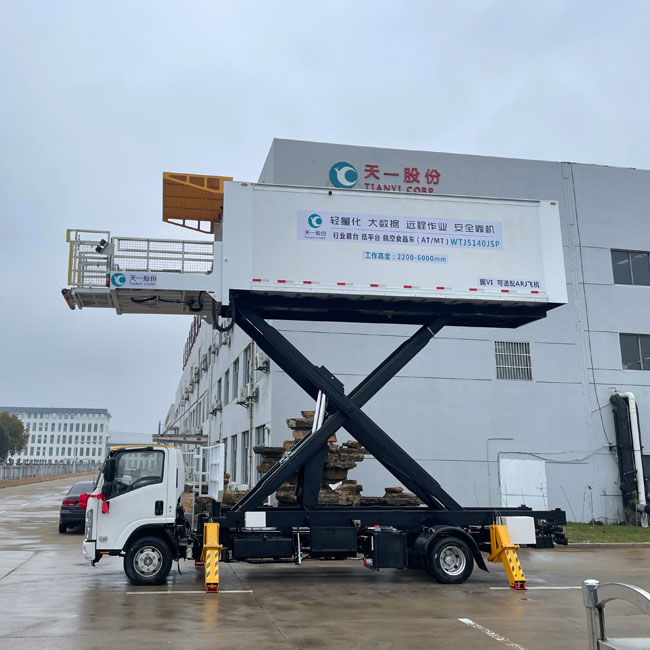

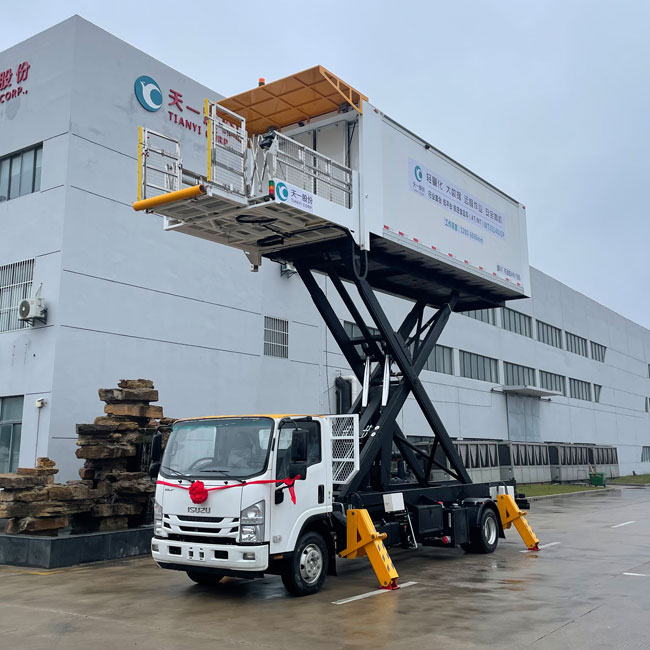

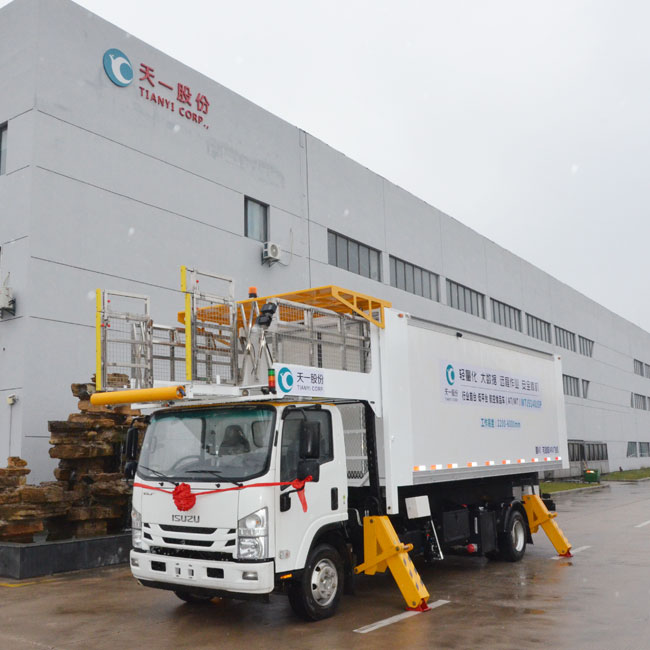

WTJ5140JSP small Diesel Catering truck The product is suitable for B737, A320 and other C type below the use of models. The car has advanced technical performance, low center of gravity, good stability, safe and convenient operation, reasonable structure design, advanced technology, beautiful appearance, reliability, good maintainability
Availability:
Product Description

Model:WTJ5140JSP Small Diesel Catering truck


Main characteristics
a. The chassis adopts the second-class chassis of Qingling, which has strong bearing capacity and good maneuverability.
b. Scientific and reasonable fork structure, which adopts piggyback oil cylinder with large inclination Angle.
c. The upper and lower frame structure of the lifting device with widened design is very stable.
d. The hydraulic system adopts imported electromagnetic reversing valve, two-way hydraulic lock, emergency electric pump, emergency manual pump, etc. The oil cylinder adopts domestic famous brand products, and the key vulnerable parts such as oil seal in the cylinder are all imported parts.
e. Complete emergency measures to ensure the safety of aviation food trucks.
f. The electrical system is well designed with complete functions, which can effectively prevent all kinds of misoperation and prevent the equipment from being damaged.
g. Integrated circuit board and relay combined control, control system advanced and reliable.
h. Multi-layer progressive tail ladder is adopted, which is convenient for operators to get up and down the car body, safe and reliable.
i. Rich configuration options to meet different customer requirements.
j. The front platform guardrail adopts folding type, which is especially good for vehicle passing.


Main performance indicators:

Serial name parameter
1 project Performance index
2 chassis Qingling Automobile Co., LTD  QL1070A5KAY       /      QL1100A8PAY
3 engine Qingling Isuzu (Chongqing) Engine Co., LTD  4KH1CN5HS      /          4HK1-TC51
4 Engine emission Meet GB 17691-2005 countryvGB3847-2005
5 gearbox Qingling Automobile Co., LTD  MSB-5SM       /            MLD-6Q
6 Working height of platform   mm 2200~4600         /         2400-5800
7 Body load rating   kg 1500           /           2000
8 Platform left and right adjustment range   mm 0~300        /          0-600
9 Platform scaling adjustment range   mm 0~500       /            0-600
10 Fixed platform size (L x W)  mm 1150x1800         /            2000 X 2290
11 Mobile platform size (L x W) mm 730x1000          /             630 X 1200
12 Body size (L x R xH)mm 5000x2010x2180           /         6500 X 2300 X 2300
13 Front platform fixed part load rating  kg 600         /           1200
14 Forward platform moving part load ratingkg 450
15 Overall dimensions (Lx W x H) mm 7160x2010x3300           /          9000 X 2460 X3830
16 Quality of maintenance  kg 7200            /              11000
